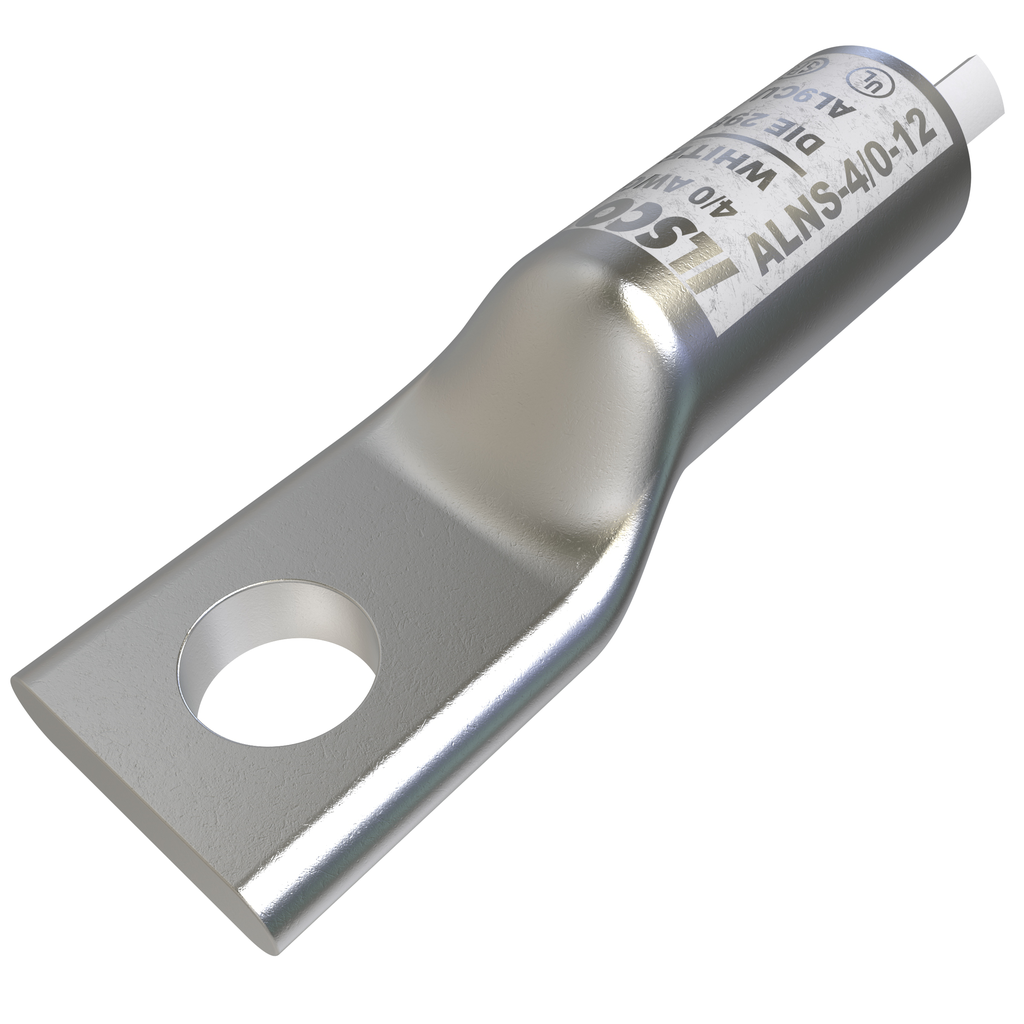

Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250985
Part: #ALNS-4/0-12
UPC: 783669687354
Surecrimp Aluminum Compression Lug, Conductor Size 4/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250985
Part: #ALNS-4/0-12
UPC: 783669687354
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 4/0 – Electrical Wire and Cable Connector
The Surecrimp Aluminum Compression Lug is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by ILSCO, this lug is suitable for stranded aluminum conductors sized 4/0 AWG. It features a long barrel design for enhanced conductor insertion and compression connection type, making it ideal for use by electrical distributors and switchgear suppliers requiring durable and efficient lighting solutions and electrical wiring components.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: ALNS-4/0-12
- Conductor Size: 4/0 AWG
- Conductor Type: Stranded
- Conductor Material: Aluminum
- Connection Type: Compression
- Barrel Type: Long
- Barrel Length: 1.535 inches
- Number of Holes: 1
- Mounting Hole Size: 0.562 inches
- Inside Diameter: 0.553 inches
- Outside Diameter: 0.854 inches
- Material: Aluminum
- Color: Silver
- Dimensions (L x W x H): 3.48 in x 1.17 in x 0.894 in
- Product Weight: 0.0870 lbs
- Carton Quantity: 10
- UL and CSA Certified
Features
- Tin plated for corrosion resistance and enhanced conductivity
- Long barrel design facilitates easier wire insertion and secure crimping
- Suitable for stranded aluminum conductors ensuring compatibility with common electrical wiring
- Compression connection type provides a reliable mechanical and electrical connection
- Single hole lug for straightforward mounting and installation
- Silver color for easy identification
