Surecrimp Aluminum Compression Lug, Conductor Size 3/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250932
Part: #ALNS-3/0-38
UPC: 783669690415
Surecrimp Aluminum Compression Lug, Conductor Size 3/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250932
Part: #ALNS-3/0-38
UPC: 783669690415
Total Price: $27.56 per each Sold in increments of 1 each
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 3/0, 1 Hole, 3/8in Bolt Size, Long Barrel, Tin Plated, UL, CSA - Compression Lug

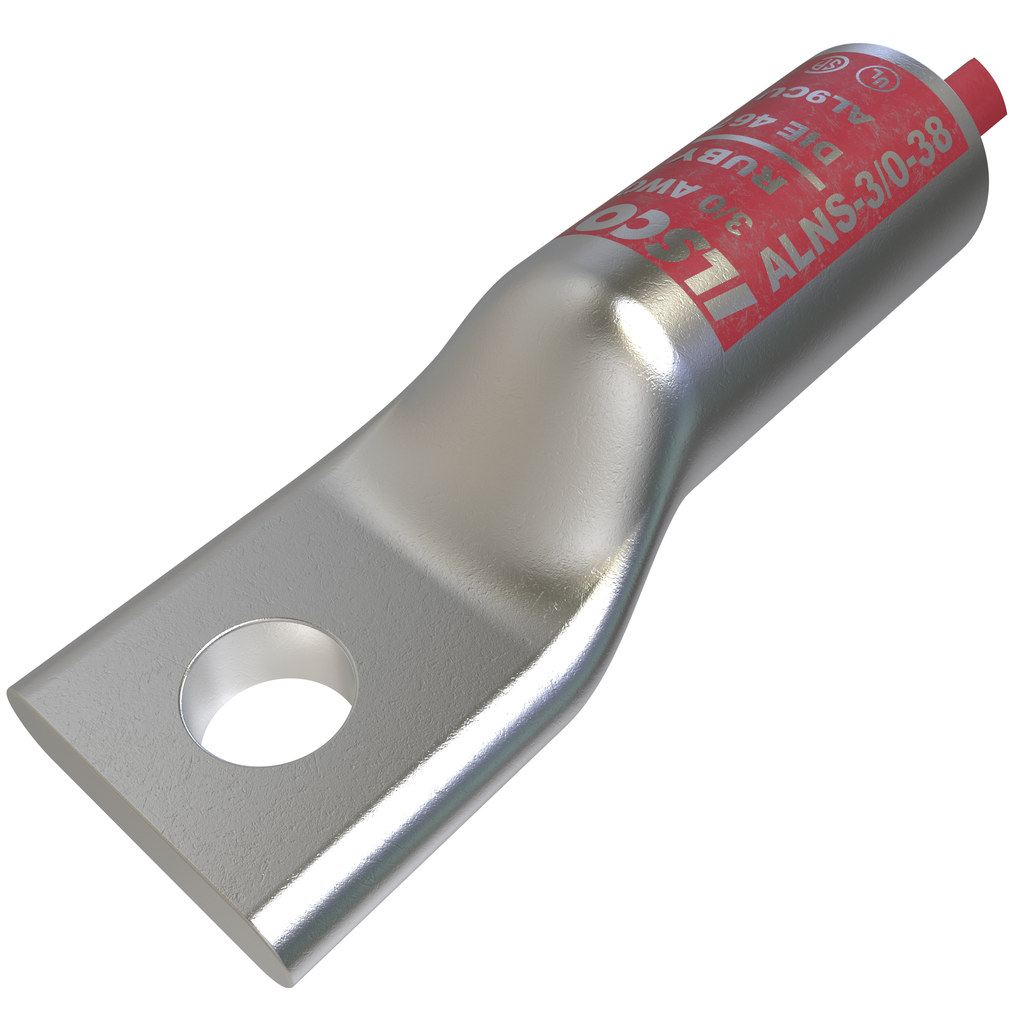

This Surecrimp aluminum compression lug is designed for secure and reliable electrical connections in wire and cable applications. Suitable for stranded aluminum conductors sized 3/0 AWG, it features a long barrel for enhanced conductor grip and a single hole for mounting with a 3/8 inch bolt. The lug is tin plated to resist corrosion and is UL and CSA certified, making it a dependable choice for electrical distributors and switchgear suppliers requiring high-quality lighting solutions and wire and cable accessories.
Specifications
- Conductor Size: 3/0 AWG
- Number of Holes: 1
- Mounting Hole Size: 0.406 inches
- Bolt Size: 3/8 inch
- Barrel Type: Long
- Barrel Length: 1.355 inches
- Conductor Type: Stranded
- Conductor Material: Aluminum
- Material: Aluminum
- Color: Silver
- Color Coding: Ruby
- Inside Diameter: 0.495 inches
- Outside Diameter: 0.761 inches
- Length: 2.95 in
- Width: 1.044 in
- Height: 0.801 in
- Product Weight: 0.0730 lbs
- Direct Burial: No
- Manufacturer: ILSCO
- Manufacturer Part #: ALNS-3/0-38
- Carton Quantity: 10
Features
- Tin plated for corrosion resistance
- UL and CSA certified for safety and compliance
- Long barrel design ensures secure conductor retention
- Compatible with stranded aluminum conductors
- Color-coded ruby for easy identification of conductor size
