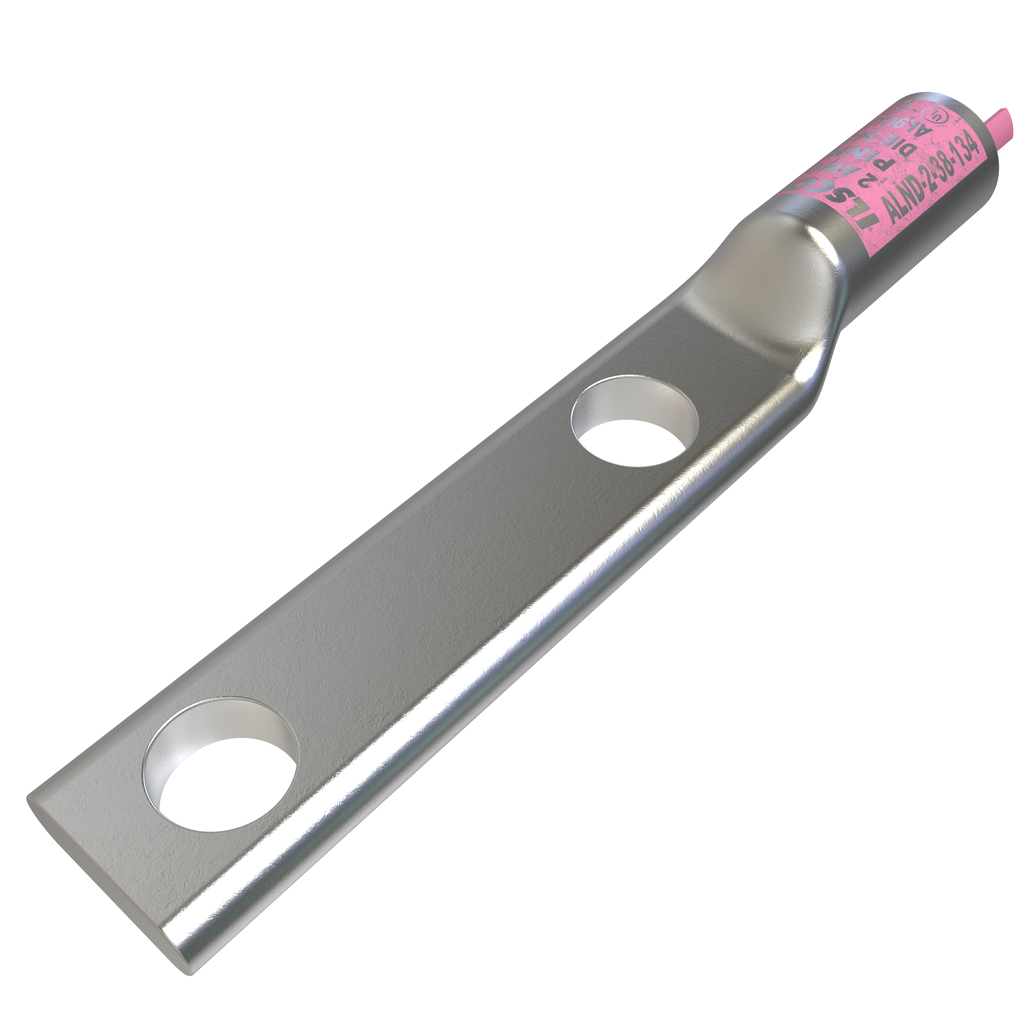

Surecrimp Aluminum Compression Lug, Conductor Size 2, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250393
Part: #ALND-2-38-134
UPC: 783669690910
Surecrimp Aluminum Compression Lug, Conductor Size 2, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250393
Part: #ALND-2-38-134
UPC: 783669690910
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 2, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, Tin Plated, UL, CSA - Aluminum Compression Lug
This Surecrimp aluminum compression lug is designed for secure and reliable electrical connections in wire and cable applications. Suitable for stranded aluminum conductors, it features a long barrel and tin plating to enhance conductivity and corrosion resistance. Ideal for use by electrical distributors and switchgear suppliers, this lug supports efficient termination in lighting solutions and electrical distribution systems.
Specifications
- Conductor Size: 2
- Number of Holes: 2
- Bolt Size: 3/8 inch
- Hole Spacing: 1-3/4 inch
- Barrel Type: Long
- Barrel Length: 0.97 inches
- Conductor Type: Stranded
- Connection Type: Compression
- Material: Aluminum
- Conductor Material: Aluminum
- Color: Silver
- Color Coding: Pink
- Inside Diameter: 0.307 inches
- Outside Diameter: 0.525 inches
- Mounting Hole Size: 0.406 inches
- Dimensions (L x W x H): 3.985 in x 0.7 in x 0.555 in
- Product Weight: 0.0570 lbs
- Carton Quantity: 10
- Certifications: UL, CSA
- Manufacturer: ILSCO
- Manufacturer Part #: ALND-2-38-134
- UPC: 783669690910
Features
- Tin plated for enhanced corrosion resistance and conductivity
- Long barrel design for secure conductor insertion and compression
- Compression connection ensures reliable mechanical and electrical performance
- Color-coded pink for easy conductor size identification
- Compatible with stranded aluminum conductors
- Meets UL and CSA standards for safety and performance
