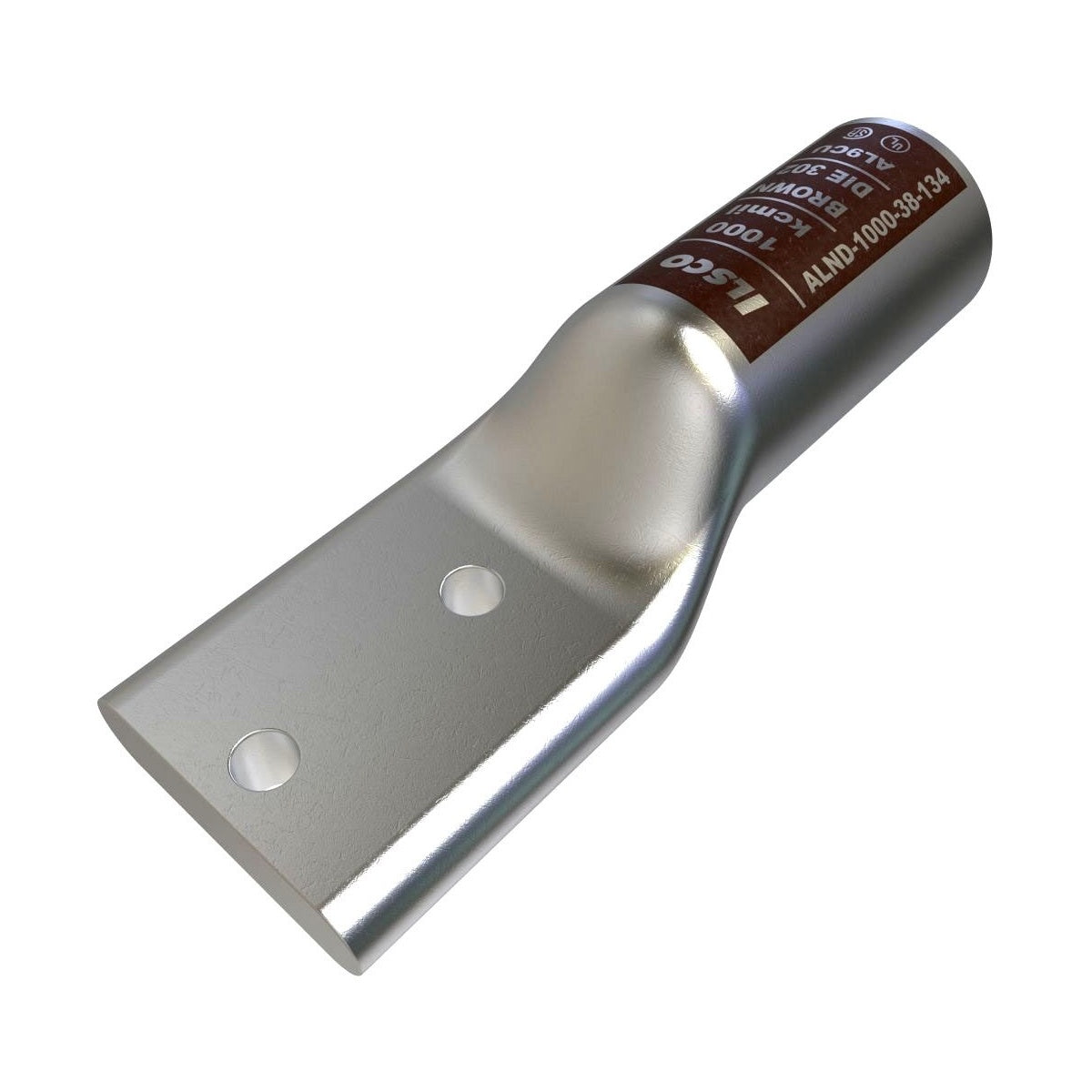

Surecrimp Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250371
Part: #ALND-1000-38-134
UPC: 783669690545
Surecrimp Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250371
Part: #ALND-1000-38-134
UPC: 783669690545
Description
Surecrimp Aluminum Compression Lug, Conductor Size 1000 – Aluminum Compression Lug
This Surecrimp Aluminum Compression Lug is designed for use with 1000 kcmil aluminum or copper conductors, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. The lug features a long barrel and standard tang with dual mounting holes, engineered for secure attachment in lighting solutions and electrical distribution systems. It is UL 486A/B listed and CSA certified to C22.2 No. 65-03 standards, rated for circuits up to 35 kV, making it suitable for high-voltage applications when proper insulation and spacing are applied.
Specifications
- Material: Aluminum, Tin plated
- Conductor Size: 1000 kcmil
- Mounting Holes: 2
- Mounting Bolt Size: 3/8 in
- Mounting Hole Spacing: 1.75 in
- Length: 7.53 in
- Width: 2.514 in
- Height: 1.89 in
- UL Listing: UL 486A/B
- CSA Certification: C22.2 No. 65-03
- Voltage Rating: 35 kV
- Die Color Code: Brown
- Primary Color: Silver
- Die Index: P302
- Product Weight: 0.9310 lbs
Features
- Manufactured from high strength aluminum alloy with electro-tin plating
- Long barrel design for secure conductor insertion
- Pre-filled with DE-OX® oxide inhibiting compound to prevent corrosion
- Square tang end with no sight window for durability
- Dual rated AL9CU for use with aluminum or copper conductors
- Color coded die index for easy identification and proper crimping
- Roll marked for traceability and inventory management
- Suitable for circuits rated up to 35 kV with appropriate installation practices
