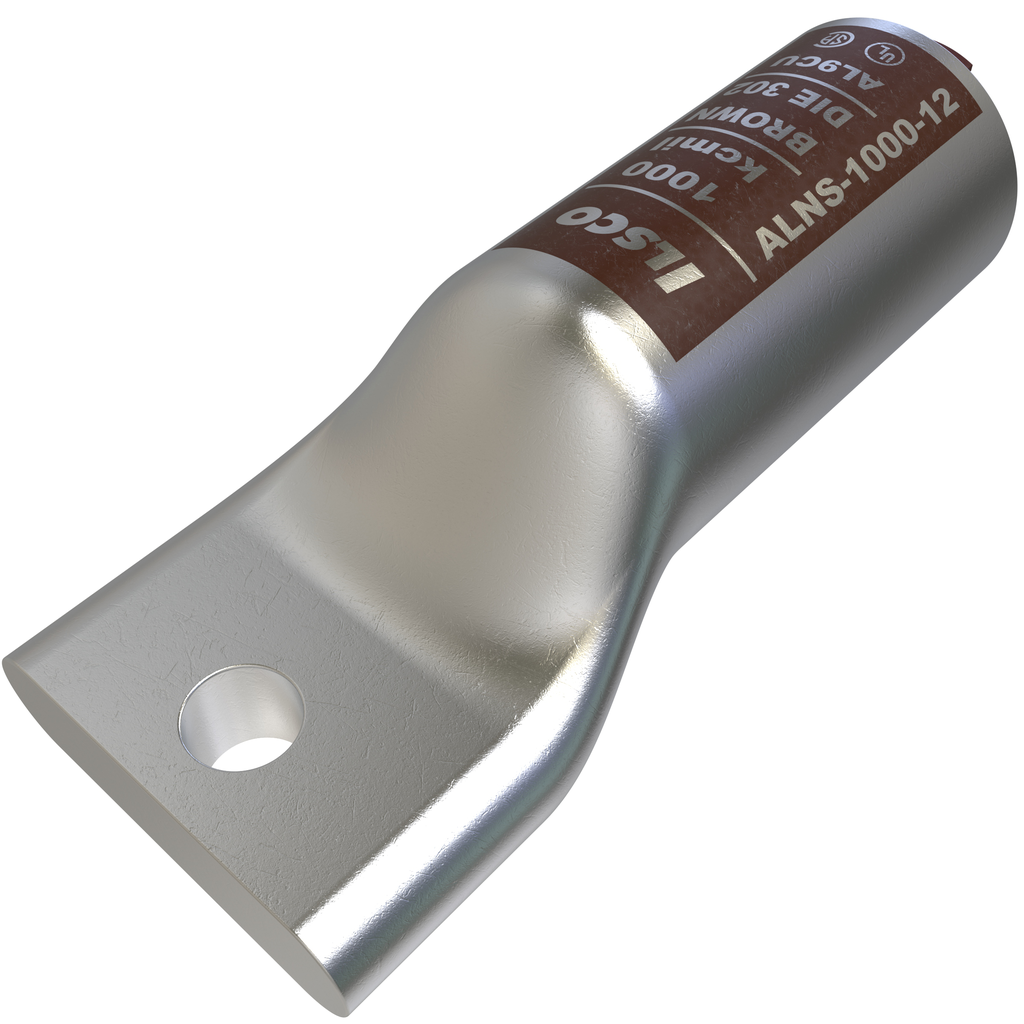

Surecrimp Aluminum Compression Lug, Conductor Size 1000, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250849
Part: #ALNS-1000-12
UPC: 783669690323
Surecrimp Aluminum Compression Lug, Conductor Size 1000, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250849
Part: #ALNS-1000-12
UPC: 783669690323
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 1000 – Electrical Connector
This Surecrimp Aluminum Compression Lug by ILSCO is designed for secure and reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring high-quality compression connectors. The lug accommodates a 1000 kcmil stranded aluminum conductor and features a long barrel for enhanced conductor retention. It is tin-plated to resist corrosion and is UL and CSA certified for safety and compliance.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: ALNS-1000-12
- Material: Aluminum
- Conductor Material: Aluminum
- Conductor Type: Stranded
- Conductor Size: 1000 kcmil
- Connection Type: Compression
- Barrel Type: Long
- Barrel Length: 2.996 inches
- Number of Holes: 1
- Mounting Hole Size: 0.562 inches
- Inside Diameter: 1.18 inches
- Outside Diameter: 1.84 inches
- Length: 5.75 inches
- Width: 2.514 inches
- Height: 1.89 inches
- Color: Silver
- Color Coding: Brown
- Product Weight: 0.889 lbs
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Direct Burial: No
- Certifications: UL 486A/B Listed, CSA C22.2 No. 65-03
Features
- Tin-plated finish for corrosion resistance
- Contains DE-OX® anti-oxidant compound to improve conductivity and prevent oxidation
- Hard barrel marking for durability
- Single mounting hole with 1/2 inch bolt size compatibility
- UL and CSA certified for safety and performance
- Designed for stranded aluminum conductors
- Long barrel design enhances conductor retention
