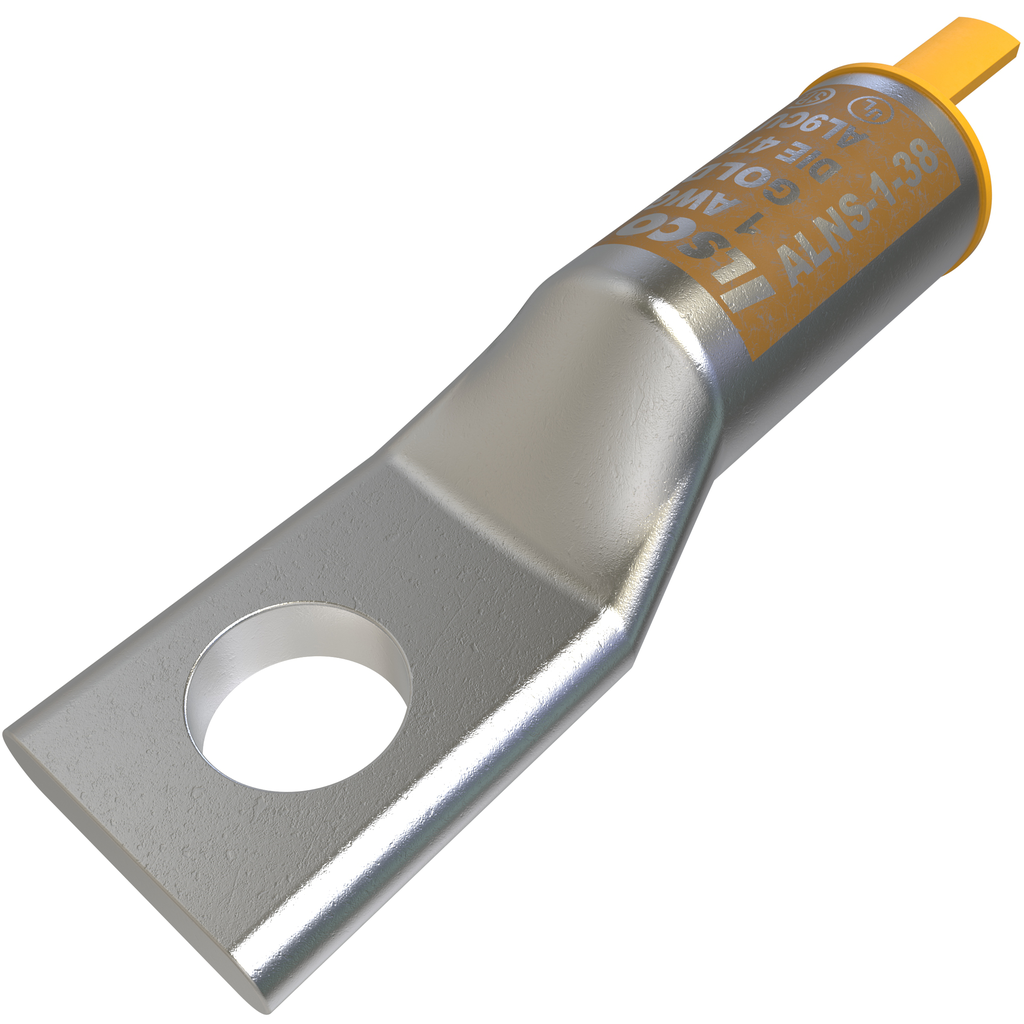

Surecrimp Aluminum Compression Lug, Conductor Size 1, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250819
Part: #ALNS-1-38
UPC: 783669690354
Surecrimp Aluminum Compression Lug, Conductor Size 1, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250819
Part: #ALNS-1-38
UPC: 783669690354
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 1, 1 Hole, 3/8in Bolt Size, Long Barrel, Tin Plated
This Surecrimp Aluminum Compression Lug by ILSCO is designed for secure electrical connections in wire and cable installations. Suitable for stranded aluminum conductors, it provides a reliable compression connection for electrical distributors and switchgear suppliers. The lug features a long barrel design and tin plating for enhanced conductivity and corrosion resistance, making it appropriate for various lighting solutions and industrial electrical applications.
Specifications
- Conductor Size: 1
- Number of Holes: 1
- Bolt Size: 3/8 inch
- Barrel Type: Long
- Barrel Length: 0.97 inches
- Material: Aluminum
- Conductor Material: Aluminum
- Conductor Type: Stranded
- Connection Type: Compression
- Inside Diameter: 0.358 inches
- Outside Diameter: 0.544 inches
- Mounting Hole Size: 0.406 inches
- Color: Silver
- Color Coding: Gold
- Length: 2.29 in
- Width: 0.748 in
- Height: 0.579 in
- Product Weight: 0.0340 lbs
- Carton Quantity: 10
- Manufacturer Part #: ALNS-1-38
Features
- Tin plated for corrosion resistance and enhanced conductivity
- Long barrel design for secure conductor insertion and crimping
- Compression connection type ensures reliable mechanical and electrical connection
- Color-coded for easy identification
- UL and CSA listed for safety and compliance
- Suitable for stranded aluminum conductors
- Silver finish for durability and professional appearance
