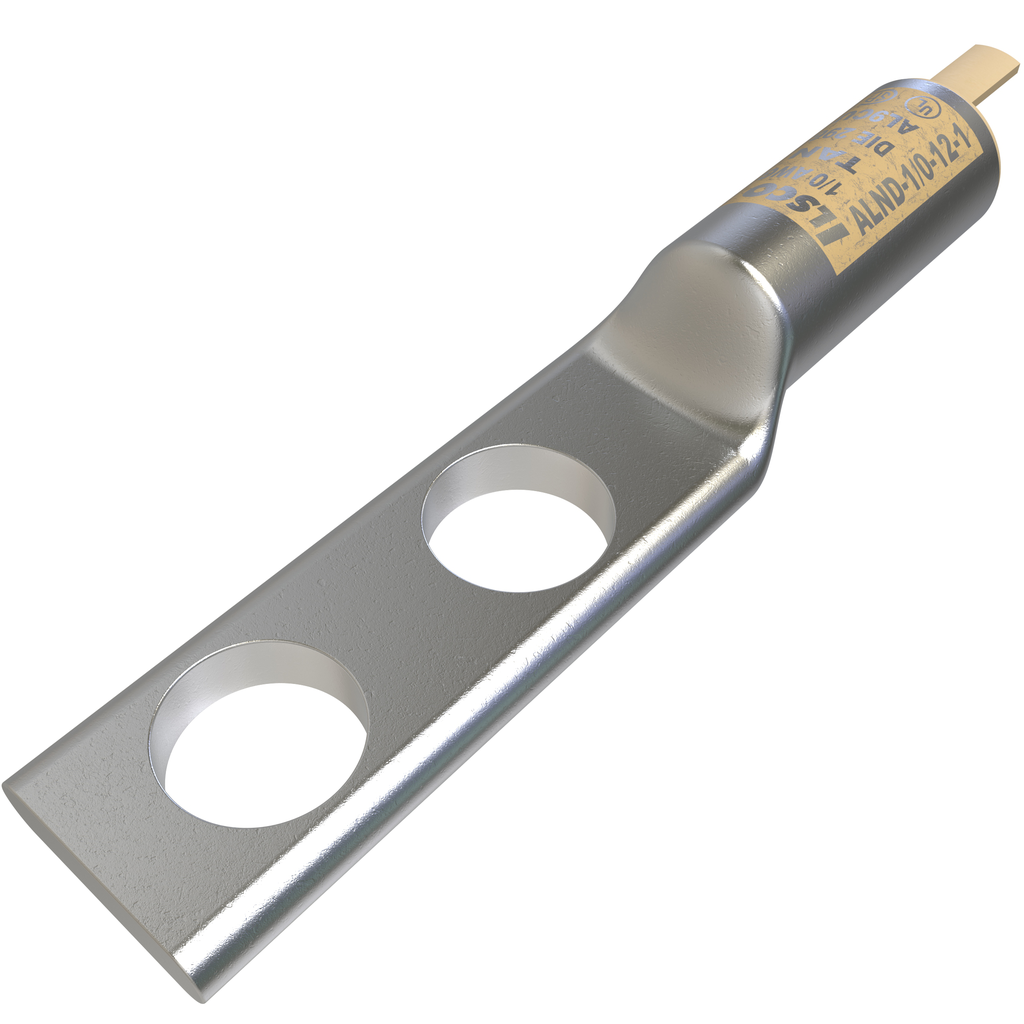

Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250326
Part: #ALND-1/0-12-1
UPC: 783669691566
Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250326
Part: #ALND-1/0-12-1
UPC: 783669691566
Total Price: $15.06 per each Sold in increments of 1 each
Next day delivery
Description
Surecrimp Aluminum Compression Lug, Conductor Size 1/0 – Aluminum Wire and Cable Connector
This Surecrimp Aluminum Compression Lug is designed for use with 1/0 stranded aluminum conductors, providing reliable compression connections for electrical distribution and lighting solutions. Manufactured by ILSCO, it features a long barrel design and tin plating for corrosion resistance. This lug is suitable for use by electrical distributors and switchgear suppliers requiring durable and efficient wire and cable terminations.
Specifications
- Conductor Size: 1/0 AWG
- Conductor Type: Stranded
- Material: Aluminum
- Conductor Material: Aluminum
- Connection Type: Compression
- Number of Holes: 2
- Mounting Hole Size: 0.562 inches
- Hole Spacing: 1 inch
- Barrel Type: Long
- Barrel Length: 1.2 inches
- Inside Diameter: 0.385 inches
- Outside Diameter: 0.599 inches
- Color: Silver
- Color Coding: Tan
- Dimensions (L x W x H): 3.7 in x 0.819 in x 0.634 in
- Product Weight: 0.0560 lbs
- Direct Burial: No
- Manufacturer: ILSCO
- Manufacturer Part Number: ALND-1/0-12-1
- Carton Quantity: 10
Features
- Tin plated for enhanced corrosion resistance
- Long barrel design facilitates secure conductor insertion and crimping
- Dual-hole lug for stable mounting with 1/2 inch bolt size
- Compatible with stranded aluminum conductors
- Color-coded for easy identification of conductor size
