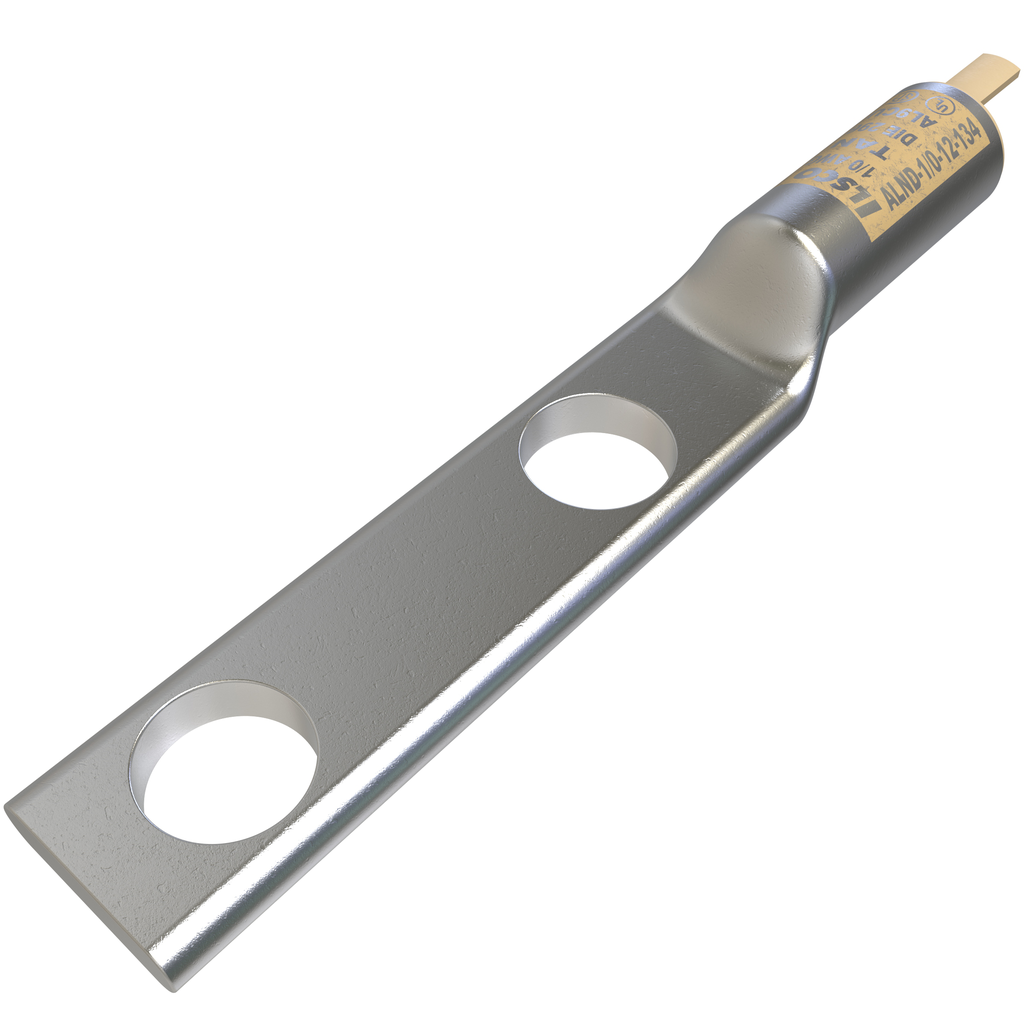

Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250333
Part: #ALND-1/0-12-134
UPC: 783669691597
Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250333
Part: #ALND-1/0-12-134
UPC: 783669691597
Next day delivery
Description
Surecrimp Aluminum Compression Lug, 1/0 Conductor Size – Electrical Connector
The Surecrimp Aluminum Compression Lug is designed for secure electrical connections in wire and cable applications. Suitable for stranded aluminum conductors, this lug features a long barrel and compression connection type, making it ideal for electrical distributors and switchgear suppliers requiring reliable aluminum conductor terminations. It is tin-plated to resist corrosion and is UL and CSA certified for safety and performance.
Specifications
- Conductor Size: 1/0 AWG
- Number of Holes: 2
- Bolt Size: 1/2 inch
- Hole Spacing: 1-3/4 inches
- Barrel Length: 1.2 inches
- Barrel Type: Long
- Connection Type: Compression
- Conductor Type: Stranded
- Material: Aluminum
- Conductor Material: Aluminum
- Color: Silver
- Color Coding: Tan
- Mounting Hole Size: 0.562 inches
- Inside Diameter: 0.385 inches
- Outside Diameter: 0.599 inches
- Dimensions (L x W x H): 4.56 in x 0.819 in x 0.634 in
- Product Weight: 0.07 lbs
- Carton Quantity: 10
- Certifications: UL, CSA
- Manufacturer: ILSCO
- Manufacturer Part #: ALND-1/0-12-134
Features
- Tin-plated aluminum construction for corrosion resistance
- Long barrel design for improved conductor insertion and secure crimping
- Compression type connection ensures reliable electrical contact
- Designed for stranded aluminum conductors
- Dual-hole lug with precise hole spacing for secure mounting
- Color-coded tan barrel for easy identification
- UL and CSA listed for safety compliance
