Support Grips, Single Eye, Single Weave, Closed Mesh, Tin-Coated Bronze – Cable Support Solutions

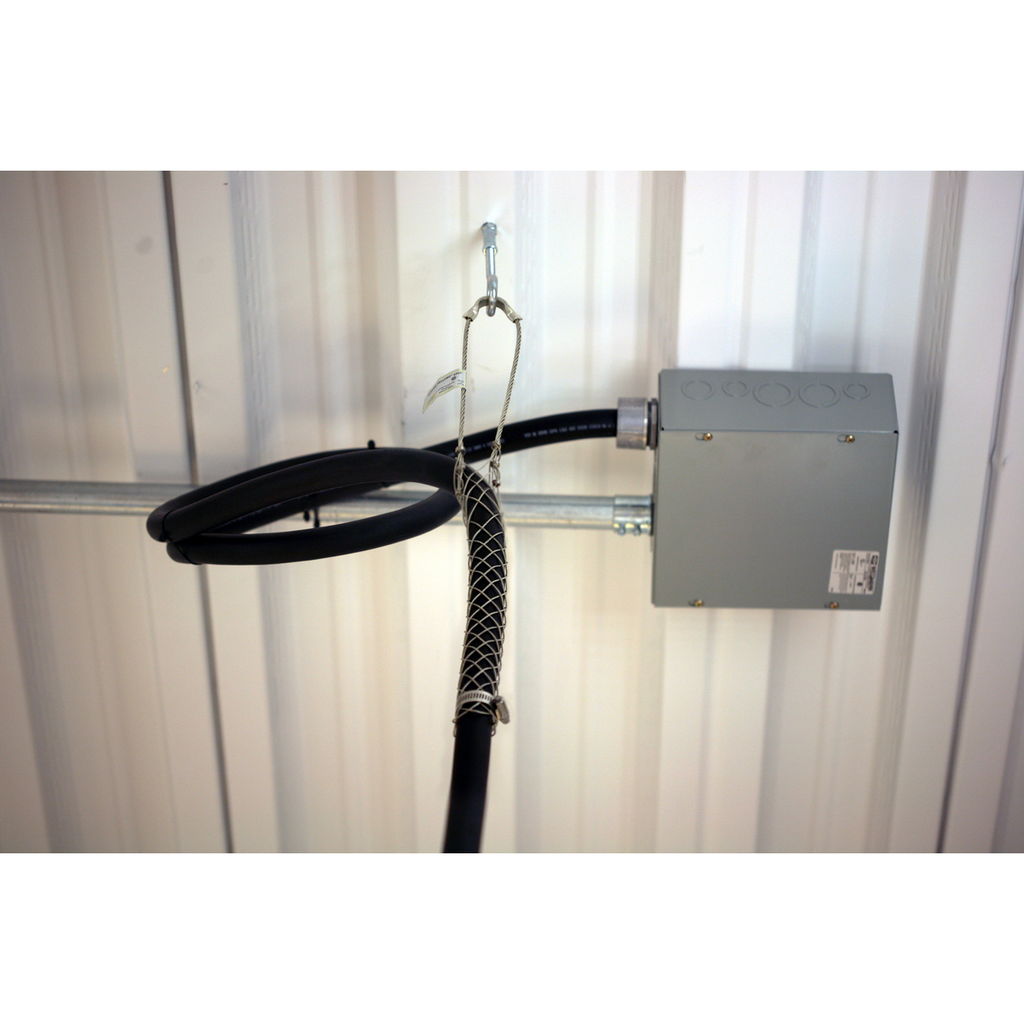

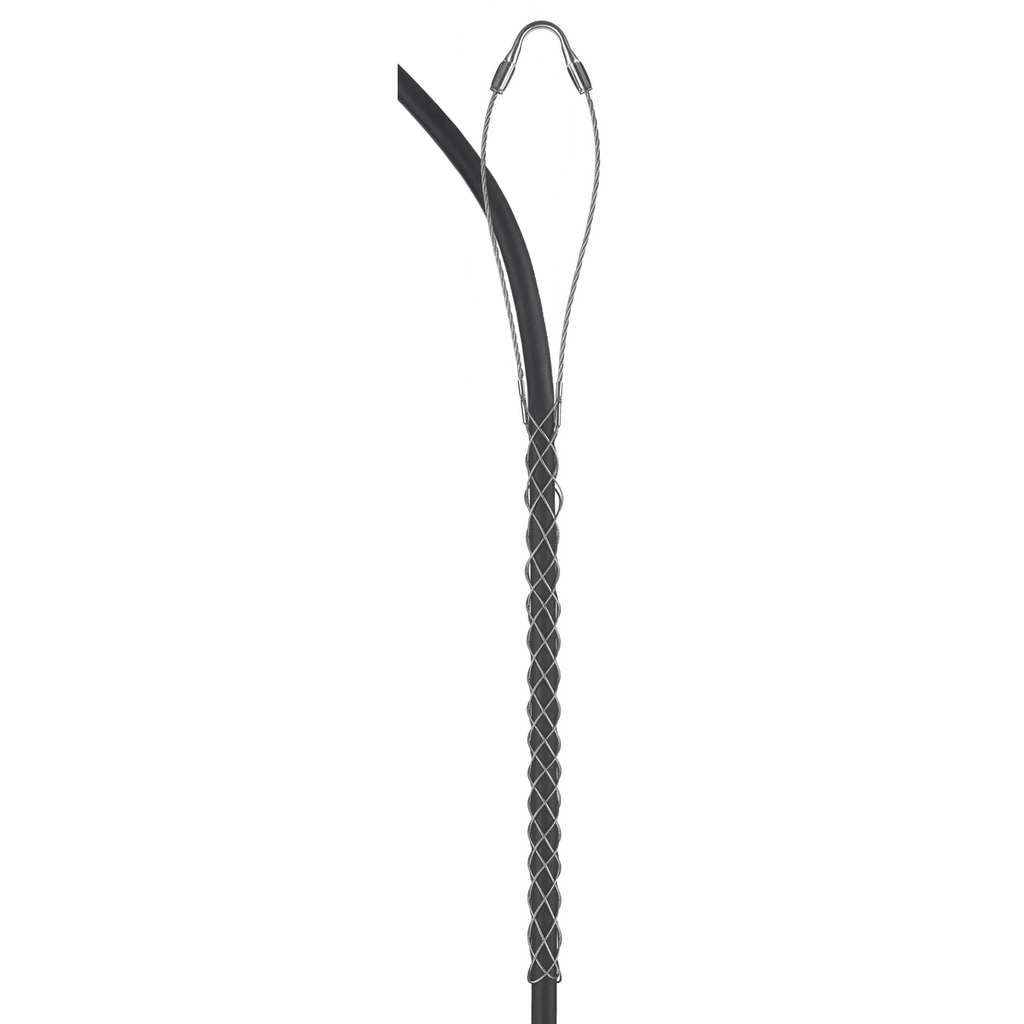

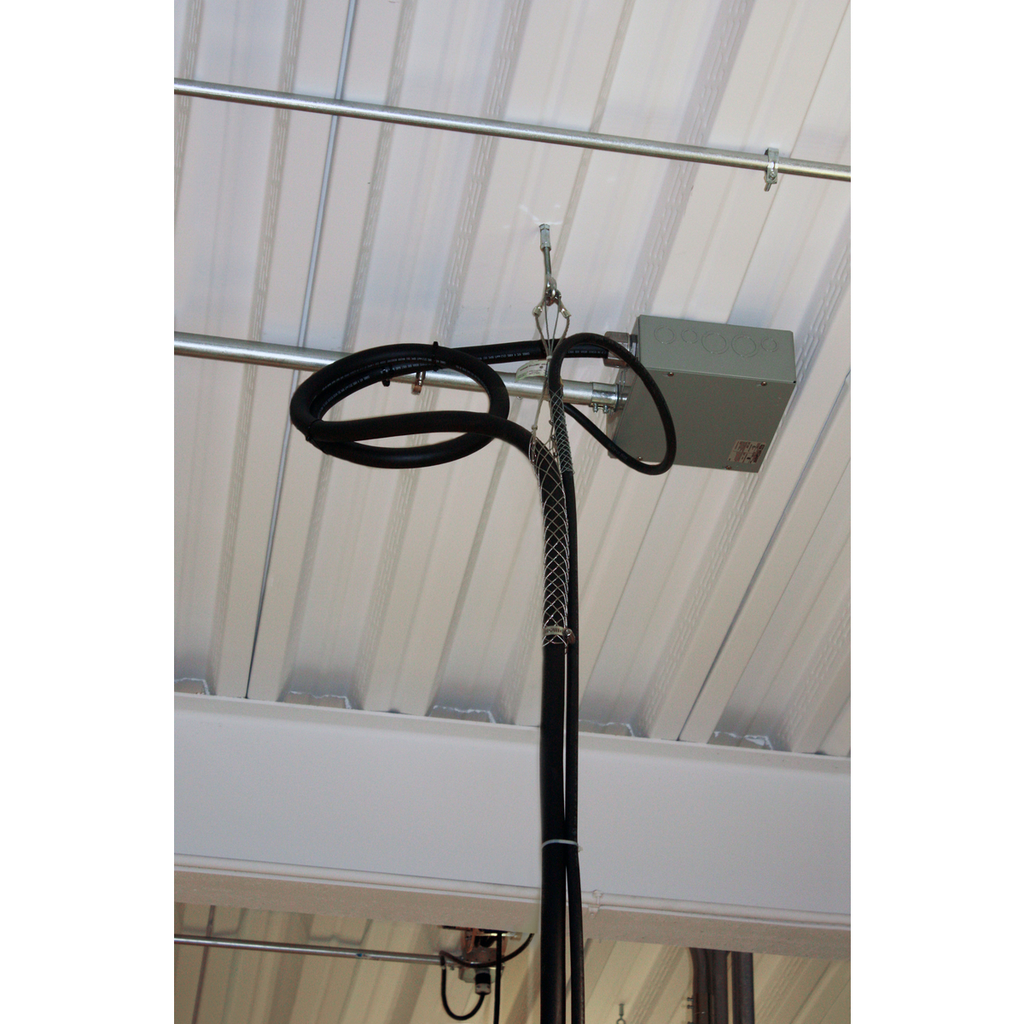

This support grip is designed for securing and supporting wire and cable in electrical installations. It features a single eye, single weave, closed mesh construction made from tin-coated bronze, providing durability and corrosion resistance. Suitable for cable diameters ranging from 0.63 to 0.74 inches, it is ideal for use in wire and cable management applications within industrial, commercial, and institutional facilities. The product can be mounted using a screw hook or beam clamp, making it compatible with various mounting configurations.

Specifications

• Application: Single Eye
• Material: Bronze, Tin Coated
• Color: Metallic
• Construction: Woven
• Cable Size: 0.63 in - 0.74 in (1.60 - 1.88 cm)
• Width: 2.500 in
• Product Weight: 0.6570 lbs
• Mounting: Screw Hook or Beam Clamp
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 02201014

Features

• Single weave, closed mesh design for secure cable support
• Tin-coated bronze material offers corrosion resistance and durability
• Compatible with screw hook or beam clamp mounting options
• Supports cable diameters between 0.63 and 0.74 inches
• Woven construction provides flexibility and strength
