Features

• Provides highly accurate, multi-functional smart-metering solutions for seamless integration into advanced building control management systems. The Series 3300 & 3500 meters feature advanced communication protocols to enable tracking, monitoring and verification of real-time energy use and easy building management system integration. Series 3300 communicates via Modbus RTU or BACnet MS/TP over RS-485 and Ethernet enabled Series 3500 features Modbus TCP/IP and BACnet IP. Both meters deliver universal voltage performance, offer standard isolated pulse outputs, and easily integrate with building management systems.Do you have a question about submetering? Contact us to learn more.
• Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
• Isolated pulse output
• Integrates easily with building management systems
• Highly accurate 0.5% accuracy class
• Delivers universal voltage performance
• 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
• 100-5000 Amps
• Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
• Certified to all applicable standards of ANSI C12.1
• Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
• Up to three sets of CTs per phase can be paralleled per meter

Specifications

• Country of Origin: United States

Product Features

• CTs Included: 3 Split Core CTs
• Communication: Pulse Output, Ethernet, ModBus TCP/IP, BACnet IP
• Enclosure: Indoor (NEMA 1)
• Meter Configuration: Single Meter

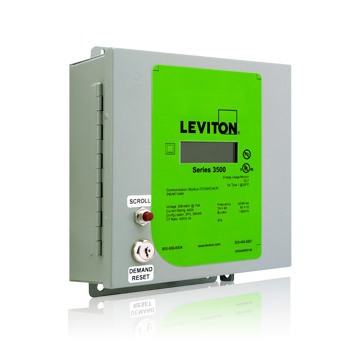

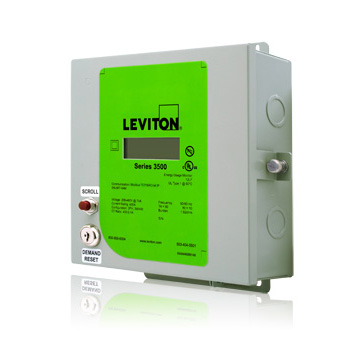

• Product Line: Series 3500 Kit

Electrical Specifications

• Amperage: 200 A
• Voltage: 480 VAC

Type

• Product Type: Submeter and Current Transformer(s)
