Submeter, Embedded Branch Circuit Monitor, 48 Inputs, LCD Display, NEMA 1 Enclosure - Branch Circuit Monitor

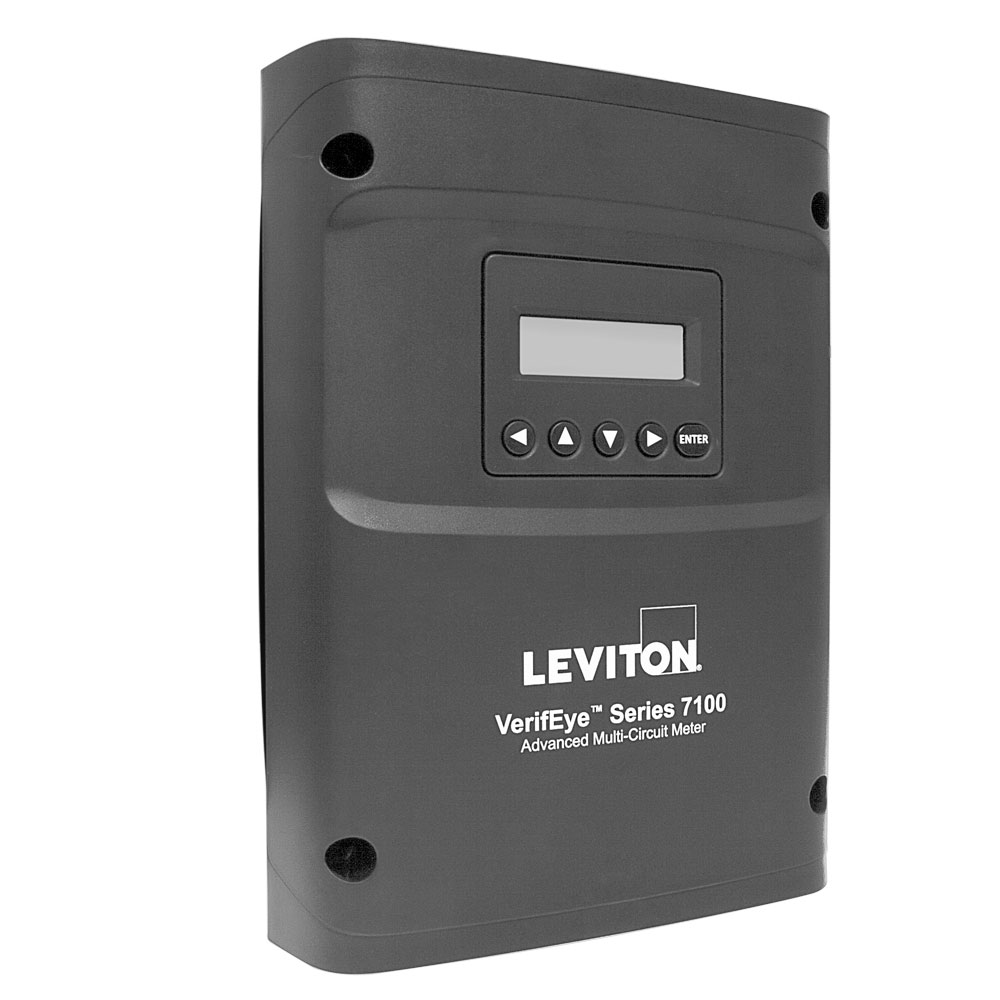

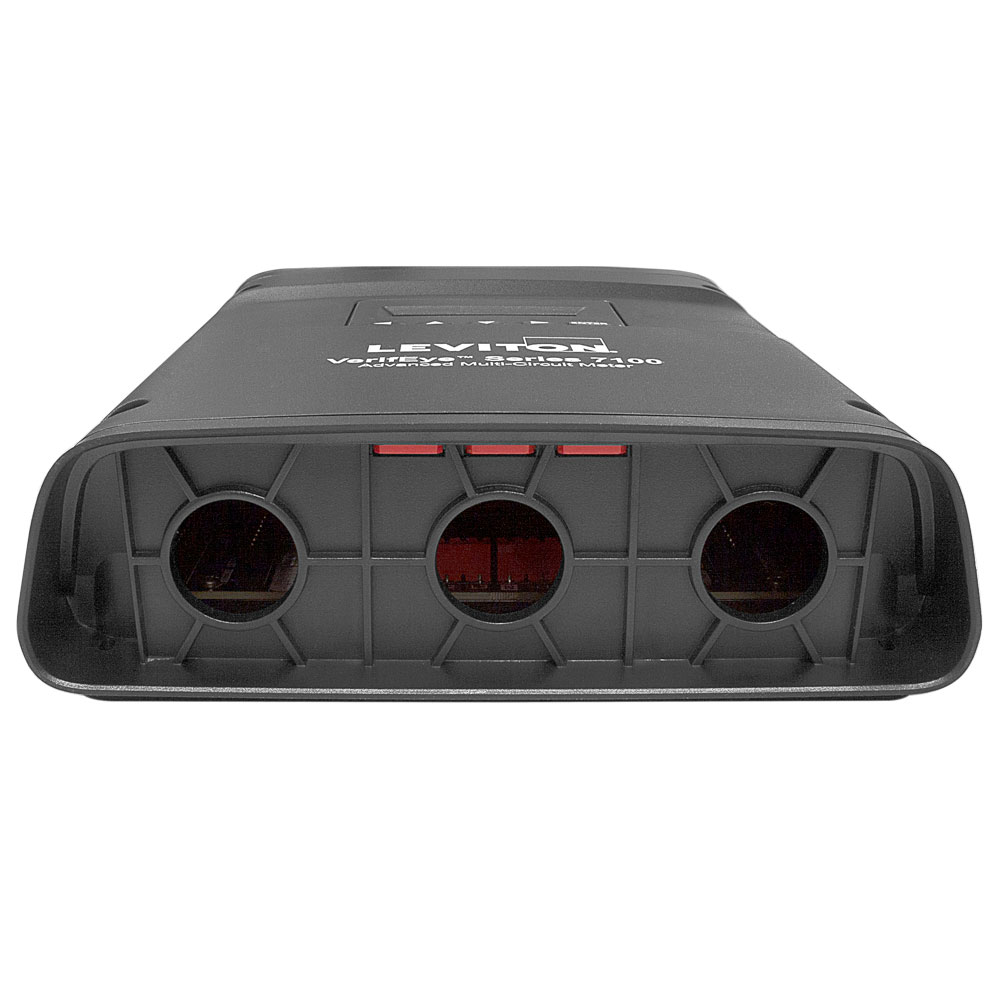

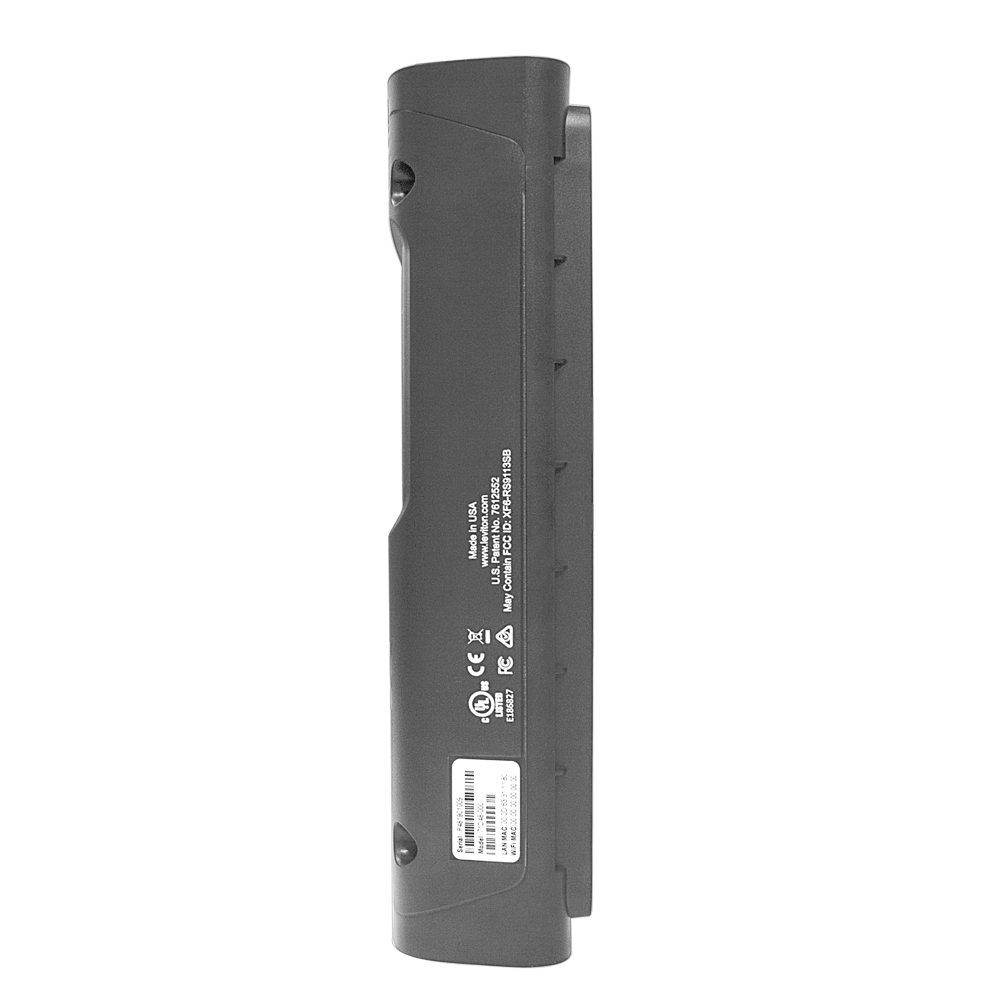

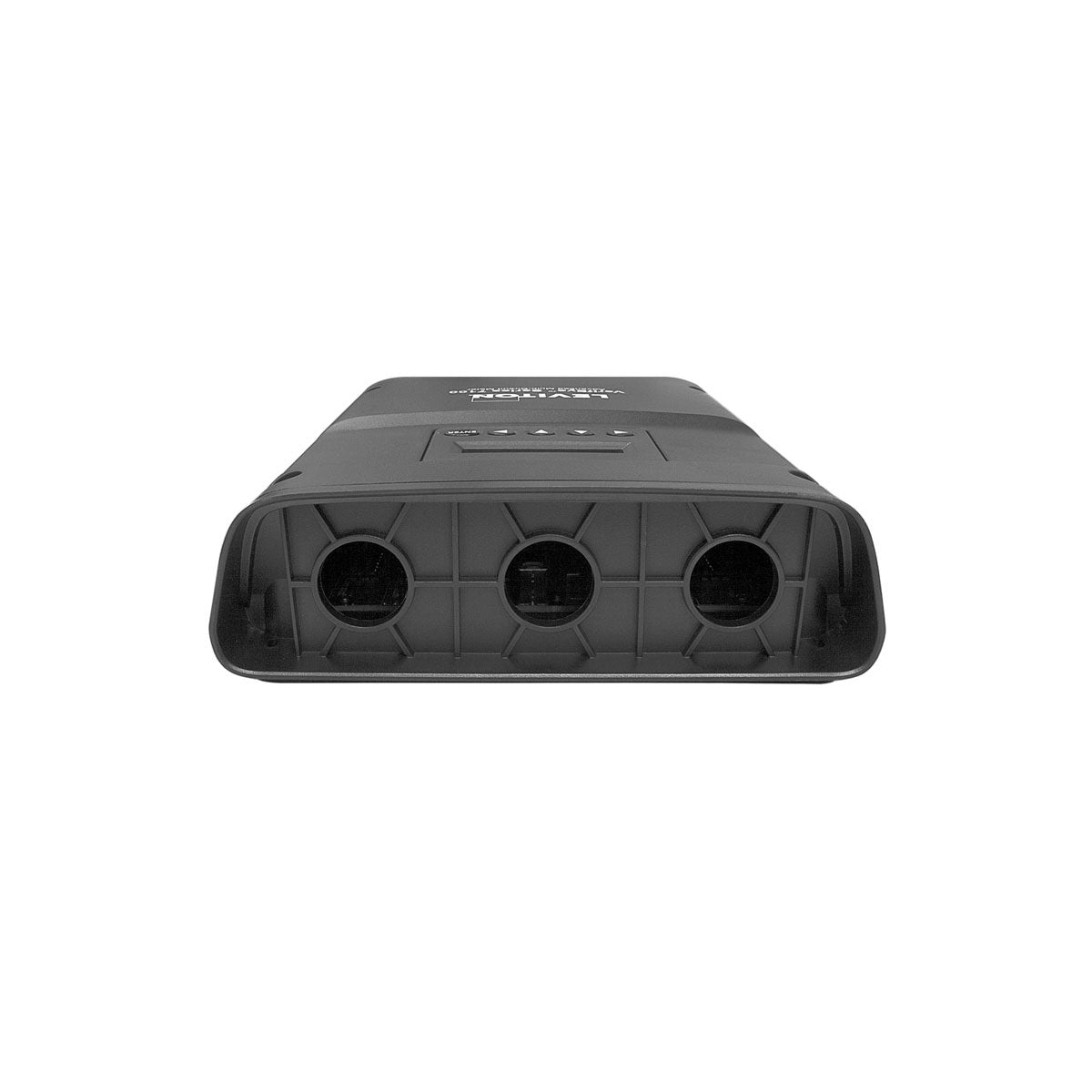

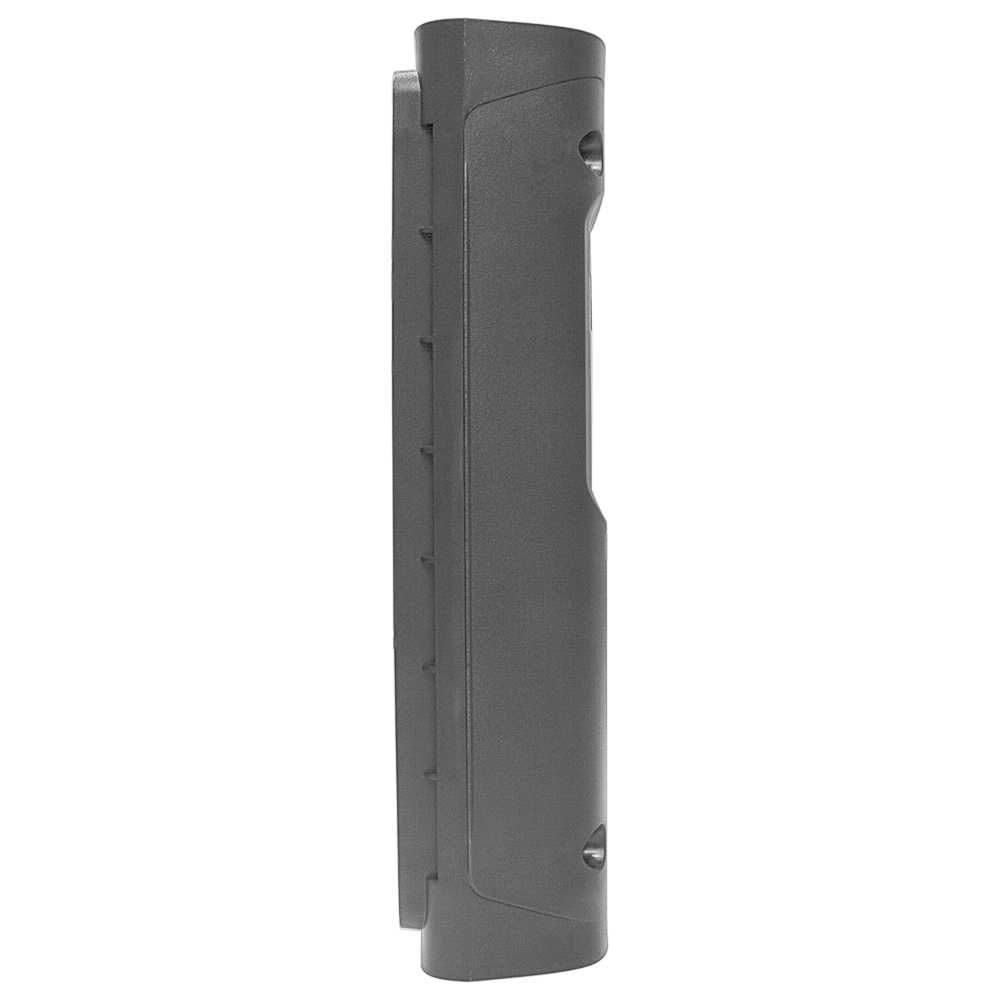

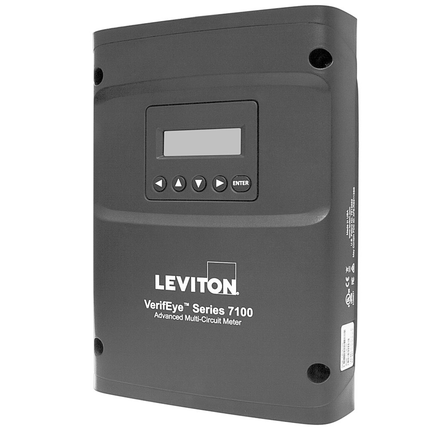

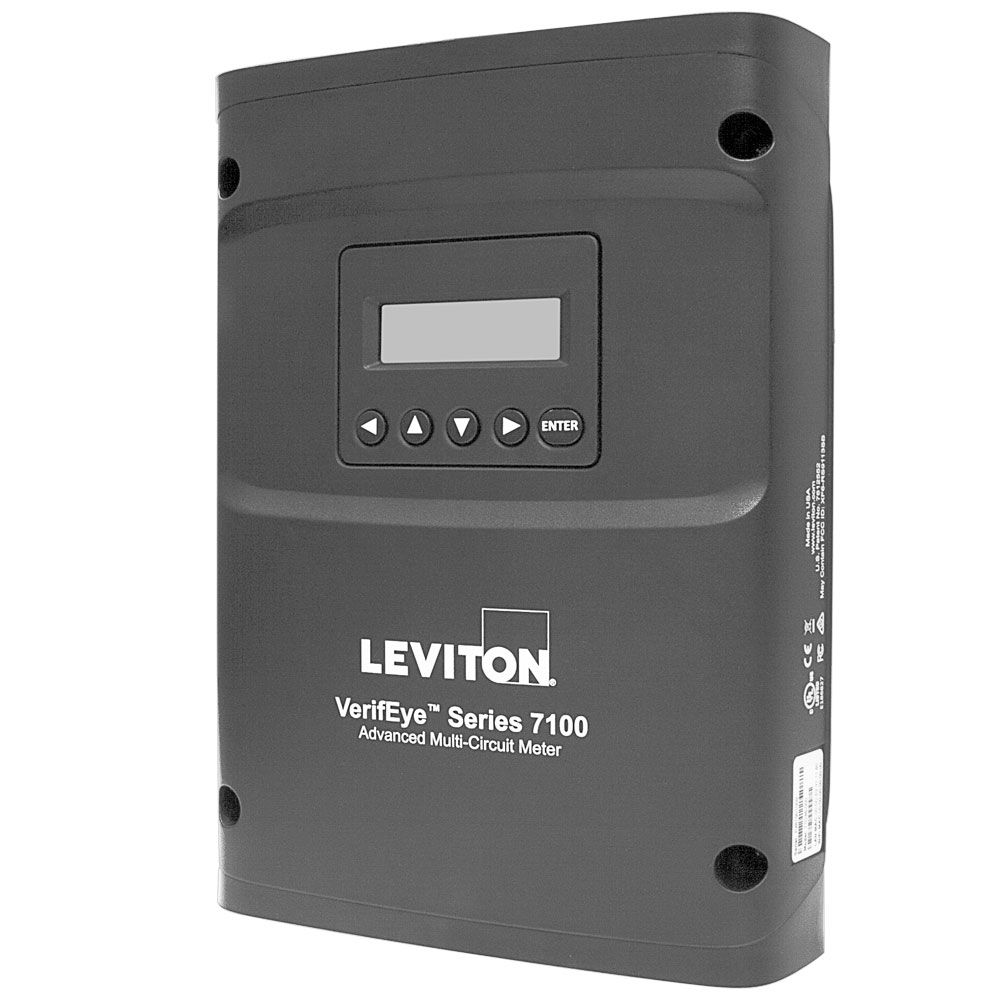

The Leviton VerifEye‚Ñ¢ Series 7100 Submeter is an advanced branch circuit monitor designed for high-density electrical load management in commercial and industrial applications. This device monitors up to 48 branch circuits, providing detailed real-time data on current, voltage, power, demand, and energy consumption. It is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking reliable submetering solutions for energy allocation, load monitoring, tenant energy monitoring, and building code compliance. The Series 7100 features a NEMA 1 enclosure and an LCD display for local monitoring, supporting industry-standard communication protocols for integration into broader energy management systems.

Specifications

• Manufacturer Part #: 71D48
• Amperage: 4000 amperes
• Grade: Revenue
• Product Weight: 6.2 lbs
• Country of Origin: United States
• Made in USA: Yes
• Enclosure Dimensions: 13.25‚Äù L x 9.87‚Äù W x 3.14‚Äù D (336.6mm x 250.90mm x 79.80mm)
• Electrical Service Types Supported: 1P/2W, 2P/3W, 3P/4W, 3P/3W (Delta)
• Voltage Range: 90-600 VAC RMS CAT 3, 50/60Hz
• Current Channels: 48 inputs, compatible with solid core, split core, and Rogowski Coil CTs
• Measurement Accuracy: ANSI C12.20 Class 0.2, NIST traceable calibration
• Communication Interfaces: RS-485, Ethernet, USB (configuration only)
• Supported Protocols: Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP
• Operating Temperature: -4¬∞ to 140¬∞F (-20¬∞ to 60¬∞C)
• Operating Humidity: 5-95% non-condensing
• Certifications: UL Recognized and Listed, CE EN 61000-6-4 Class A

Features

• Monitors current, voltage, instantaneous power, demand, and energy consumption for each circuit and main feed
• 48 individual CT inputs configurable for single, two, or three-pole meters
• Two independent reference voltage inputs for simultaneous monitoring of two systems
• Line powered from 90-600V phase-to-phase
• Bidirectional energy monitoring capability
• Phase loss alarms with user-configurable thresholds
• LCD display with navigation buttons for local data access
• Supports solid core, split core, and Rogowski coil CTs
• Easy access terminals with removable connectors for CT wiring
• Stores up to 60 days of 15-minute interval kWh data, downloadable as CSV
• Compatible with industry standard communication protocols for integration with energy management systems
• Limited 5-year warranty
