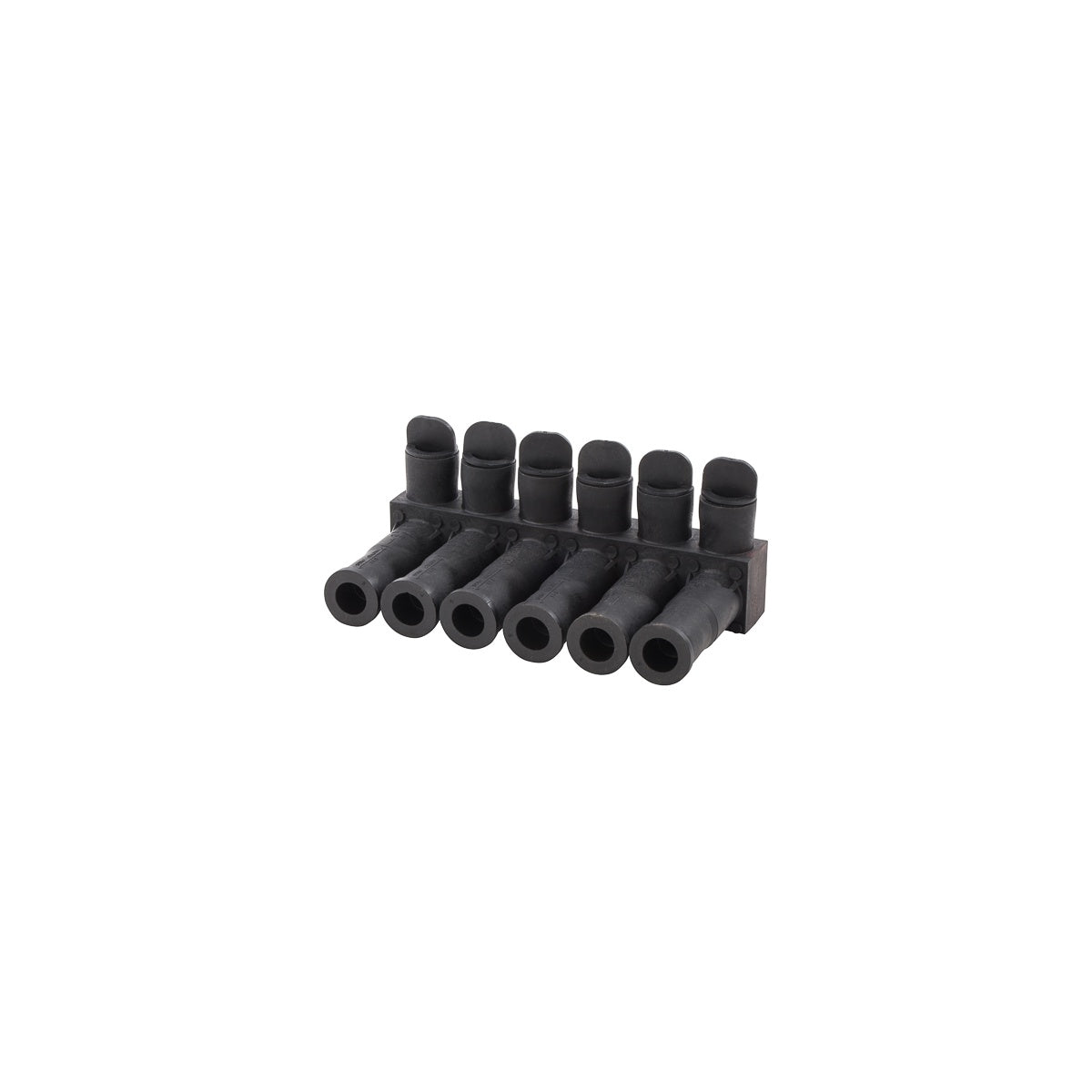

Submersible Pedestal Connector 350 6 – Wire Termination Solutions

The Submersible Pedestal Connector 350 6 by NSI Industries is designed for wire termination applications, providing reliable electrical connections in submersible and direct burial environments. This connector supports wire sizes from 350 MCM to 12 AWG and is suitable for Class B & C wire types. Its robust construction and insulating features make it an ideal component for electrical distributors and switchgear suppliers seeking durable and efficient lighting and wire and cable solutions.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPB350-6
• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 7.18 in x 4.19 in x 3.06 in
• Product Weight: 1.0780 lbs
• Environmental Conditions: Rated to 90 °C
• Wire Range: 350 MCM - 12 AWG

Features

• Manufactured from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes in one connector
• Encapsulated in EPDM rubber with nominal thickness of 125 mils providing high dielectric strength
• Abrasion and chemical resistant
• UV resistant, suitable for direct burial and submersible applications
• Will not support combustion
