Description
Submersible Pedestal Connector 350 4 - Wire Termination Connector

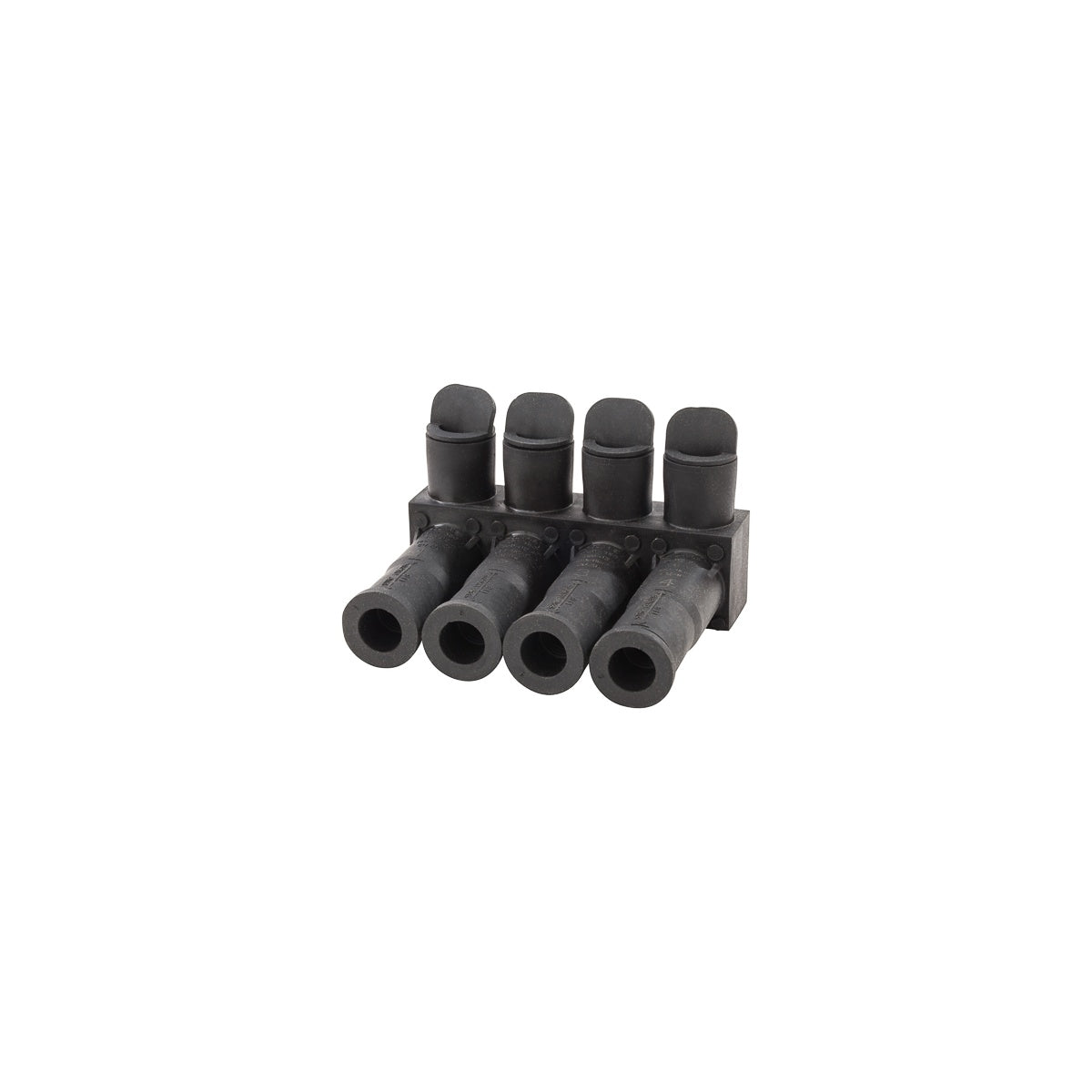

The Submersible Pedestal Connector 350 4 is a direct bury, pre-insulated connector designed for wire termination applications. It supports wire sizes from 350 MCM to 12 AWG and is suitable for use with copper and aluminum cables, making it an ideal component for electrical distributors and switchgear suppliers handling wire and cable installations in demanding environments. This connector features robust construction and insulation to ensure reliable electrical connections in submersible and outdoor conditions.
Specifications
- Application: Wire Termination
- Manufacturer: NSI Industries
- Manufacturer Part #: ISPB350-4
- Material: Aluminum
- Finish: EPDM Rubber Insulated
- Color: Black
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 350 MCM - 12 AWG
- Environmental Conditions: Rated for 90 °C
- Length: 4.8 in
- Width: 4.19 in
- Height: 3.06 in
- Product Weight: 0.7340 lbs
- UPC: 662381788962
Features
- Manufactured from high-strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
- Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes in one connector
- Encapsulated in 125 mil thick EPDM rubber insulation with high dielectric strength for submersible and outdoor use
- Abrasion and chemical resistant construction
- UV resistant insulation that will not support combustion
- Meets or exceeds ANSI C119.4 Class A specifications for dry locations
- Rated for 600V and cold temperature rated to -45 °C
