Submersible Pedestal Connector 350 3
SKU: #305086
Part: #ISPB350-3
UPC: 662381788955
Submersible Pedestal Connector 350 3
SKU: #305086
Part: #ISPB350-3
UPC: 662381788955
Description

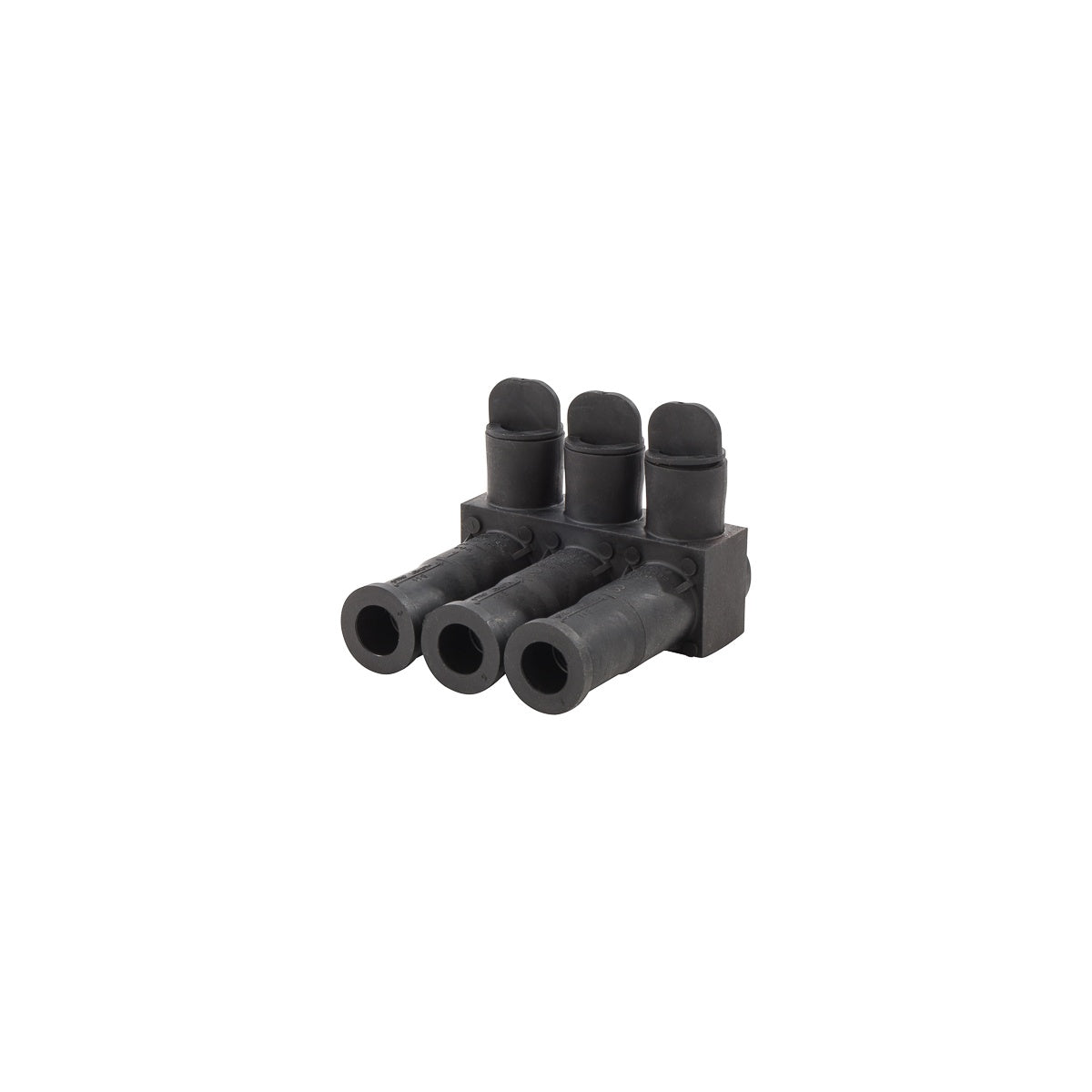

Submersible Pedestal Connector 350 3 - Wire Termination Connector
The Submersible Pedestal Connector 350 3 by NSI Industries is designed for reliable wire termination in electrical distribution and lighting solutions. This connector supports wire sizes ranging from 350 MCM to 12 AWG and is suitable for Class B & C wire types. It is engineered for submersible applications with a durable plastisol finish and aluminum construction, making it appropriate for use in demanding environments up to 90°C.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol
- Color: Black
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90°C
- Dimensions (L x W x H): 3.61 in x 4.19 in x 3.06 in
- Product Weight: 0.73 lbs
- Manufacturer Part #: ISPB350-3
Features
- Pre-filled with oxide inhibitor for improved conductivity and corrosion resistance
- Meets or exceeds ANSI C119.4 specifications for underground connectors
- 3-port design suitable for multi-conductor connections
- Durable plastisol coating provides environmental protection in submersible conditions
- Constructed from 6061-T6511 aluminum for strength and corrosion resistance
- Compatible with wire sizes from 350 MCM to 12 AWG
- Includes 5/16 internal hex pressure screws for secure connections
