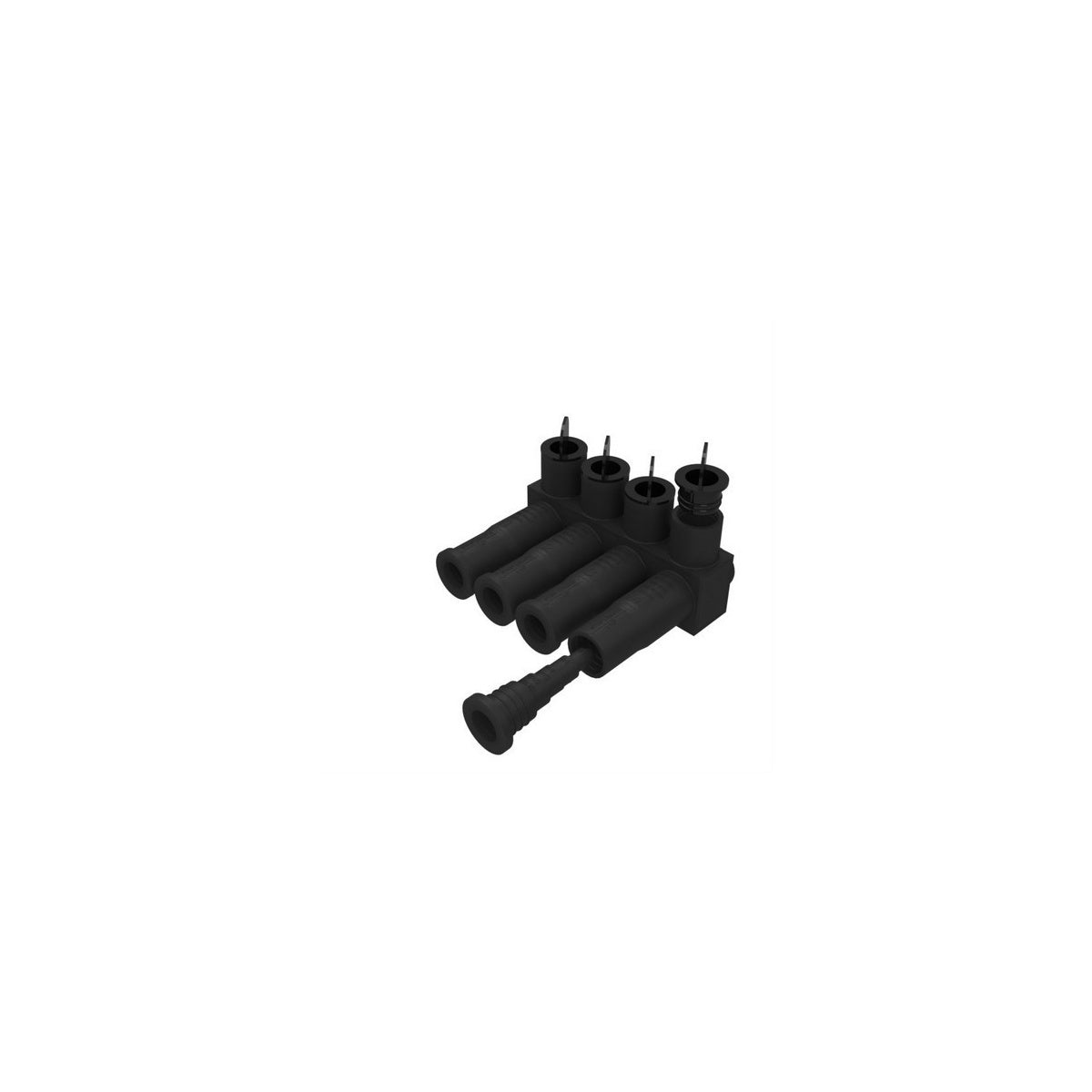

Submersible Insulated Pedestal Connectors Multi-Port #12 - 350 MCM 4 Port - Electrical Connectors

This Submersible Insulated Pedestal Connector is designed for multi-port splicing of electrical conductors ranging from #12 to 350 MCM. Suitable for direct burial and submersible applications, it provides reliable connections for wire and cable installations in demanding environments. Ideal for electrical distributors and switchgear suppliers requiring durable and insulated pedestal connectors for underground or wet locations.

Specifications

• Manufacturer: Morris Products
• Manufacturer Part #: 98024
• Material: Aluminum
• Dimensions (L x W x H): 4.75 in x 4.06 in x 2.46 in
• Product Weight: 1.35 lbs
• Conductor Size Range: #12 - 350 MCM
• Number of Ports: 4

Features

• Multi-port splice design for efficient electrical connections
• Insulated and submersible for use in direct burial and wet environments
• Set screw access plug for secure conductor insertion and maintenance
• Compatible with conductor torque requirements from 135 to 360 inch-pounds depending on conductor size
• Includes conductor sleeve (rocket) for proper conductor insertion and secure connection
