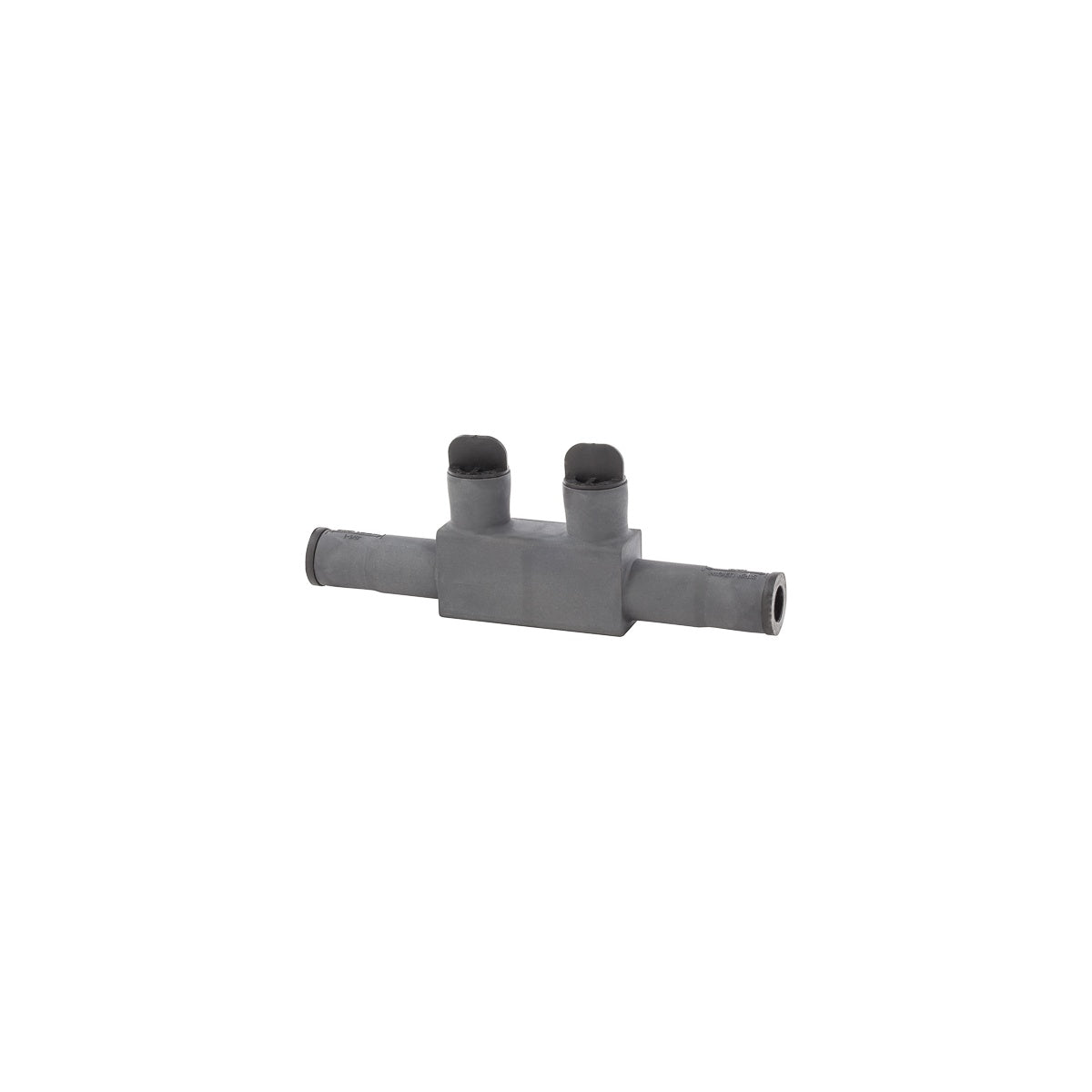

Submersible Conn. 350 - #12 Wire Termination Connector

This submersible splice connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. It is manufactured by NSI Industries and intended for use with Class B & C wire types, accommodating wire sizes from 350 MCM to 12 AWG. The connector is insulated with EPDM rubber to provide environmental protection and withstands temperatures up to 90°C, making it suitable for demanding electrical and outdoor conditions.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPBS350
• Application: Wire Termination
• Material: Aluminum (6061-T6511 alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Wire Type: Class B & C
• Number of Conductors: 2
• Number of Poles: 1
• Environmental Conditions: Rated for 90°C
• Dimensions (L x W x H): 1.25 in x 8.83 in x 3.38 in
• Product Weight: 0.62 lbs

Features

• Manufactured from high-strength 6061-T6511 aluminum alloy for electrical and mechanical performance
• EPDM rubber insulation provides abrasion, chemical, UV resistance, and submersible protection
• Designed for use with copper and aluminum cables, excluding fine stranded flexible wire
• Meets or exceeds ANSI C119.1 specifications for submersible connectors
• Removable caps allow access to 5/16 internal hex pressure screws for secure conductor termination
• Compact design suitable for direct burial and harsh environmental conditions
