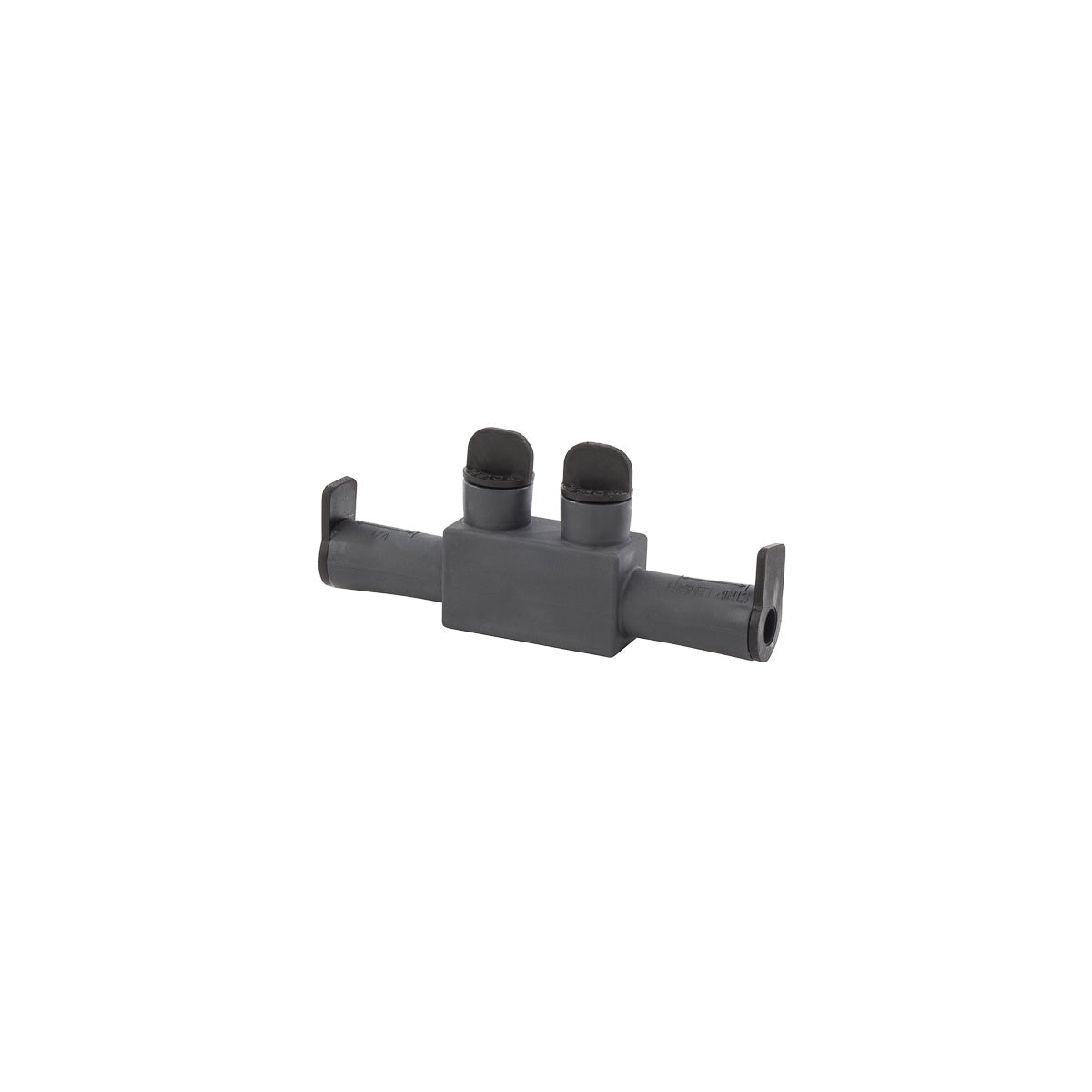

Submersible Conn. 2/0-#14 - Submersible Connector for Wire Termination

This submersible connector is designed for wire termination applications, suitable for use in electrical distribution and lighting solutions. It supports wire sizes from 2/0 AWG to #14 AWG and is ideal for use with Class B & C wire types. The connector is manufactured by NSI Industries and provides reliable performance in wet and damp environments, making it suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable connectors.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPBS2/0
• Application: Wire Termination
• Wire Range: 2/0 AWG to #14 AWG
• Wire Type: Class B & C
• Number of Conductors: 2
• Number of Poles: 1
• Material: Aluminum (6061-T6511 alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 5.05 in x 0.88 in x 2.10 in
• Environmental Conditions: Rated for 90 °C
• Product Weight: 0.1660 lbs
• UL Listed: UL 486D Sealed Wire Connector (Dry location)
• Temperature Rating: Rated to -45 °C cold temperature, 90 °C operating temperature
• Voltage Rating: 600V
• Max Torque: 120 in-lbs
• Hex/Wrench Size: 3/16 inch

Features

• Submersible to 6 feet in damp/wet locations and suitable for direct burial
• Manufactured from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes in one connector
• Encapsulated in rubber with a nominal thickness of 125 mils for high dielectric strength
• Abrasion, chemical, and UV resistant
• Will not support combustion
• Pre-filled with oxide inhibitor for enhanced corrosion resistance
• Removable caps provide access to 3/16 internal hex pressure screws for secure installation
• Shipped in sealed bag with installation instructions included
