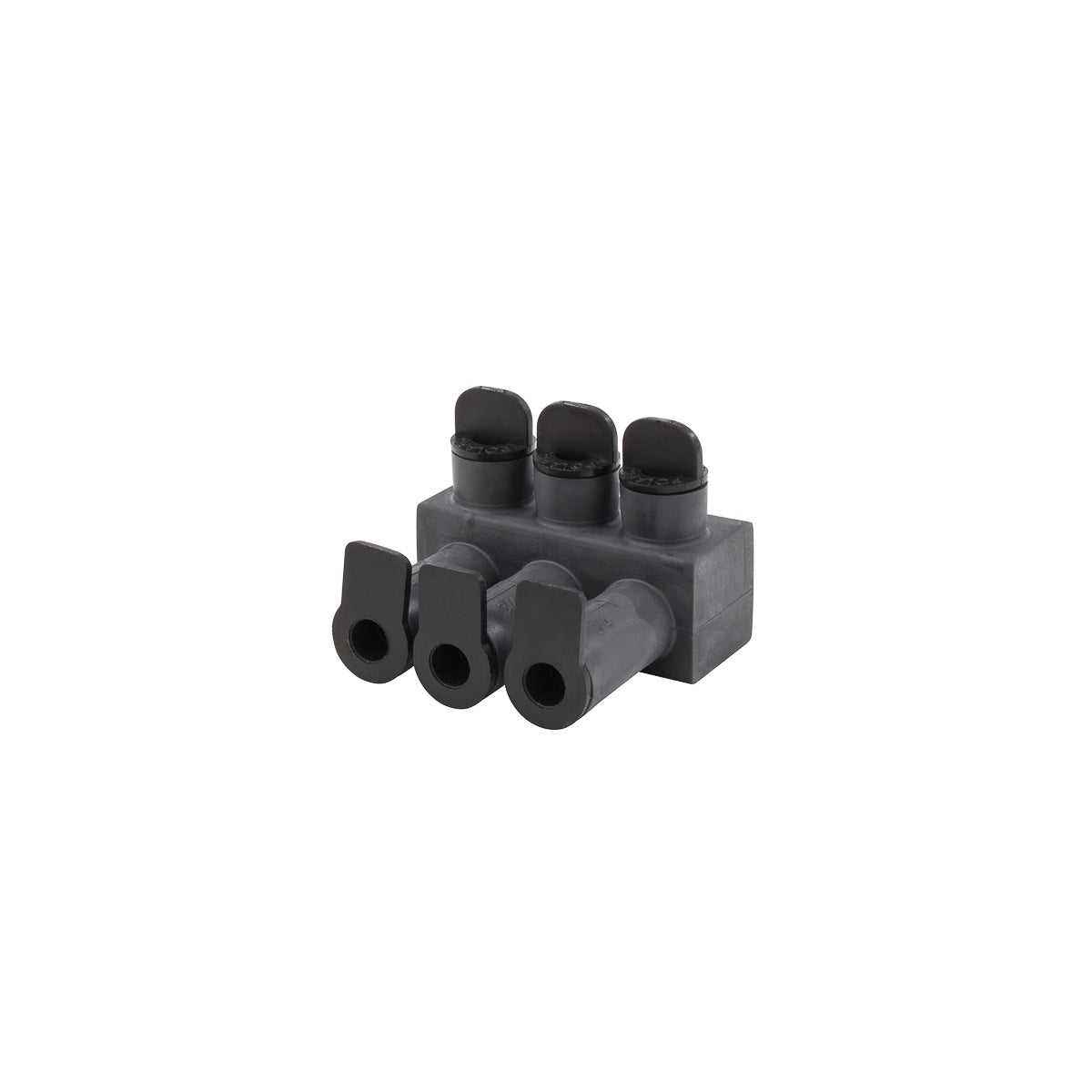

Submersible Conn. 2/0 - #14 Submersible Connector

The Submersible Connector 2/0 - #14 by NSI Industries is designed for wire termination applications, providing reliable and durable connections for electrical distributors and lighting solutions. This 3-port connector supports wire sizes from 2/0 AWG to 14 AWG and is suitable for use with Class B & C wire types. It is engineered for submersible use up to 6 feet in damp or wet locations, making it ideal for outdoor or underground installations requiring robust wire and cable connections.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPB2/0-3
• Application: Wire Termination
• Number of Conductors: 3
• Number of Poles: 1
• Wire Range: 2/0 AWG to 14 AWG
• Wire Type: Class B & C
• Material: Aluminum
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 2.79 in x 2.65 in x 2.10 in
• Product Weight: 0.3 lbs
• Environmental Conditions: Rated for 90°C
• UL Listing: UL 486D Sealed Wire Connector (Dry location)

Features

• Submersible up to 6 feet in damp/wet locations and suitable for direct burial
• Manufactured from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws reduce conductor strand damage and accommodate a wide range of conductor sizes
• Encapsulated in EPDM rubber with 125 mil nominal thickness for high dielectric strength
• Resistant to abrasion, chemicals, and UV exposure
• Will not support combustion
• Removable caps provide access to 3/16 internal hex pressure screws for secure installation
• Pre-filled with oxide inhibitor and shipped in sealed bags with installation instructions
