Submersible Conn. 2/0 - #14
SKU: #305112
Part: #ISPBO2/0
UPC: 662381787873
Submersible Conn. 2/0 - #14
SKU: #305112
Part: #ISPBO2/0
UPC: 662381787873
Next day delivery
Description

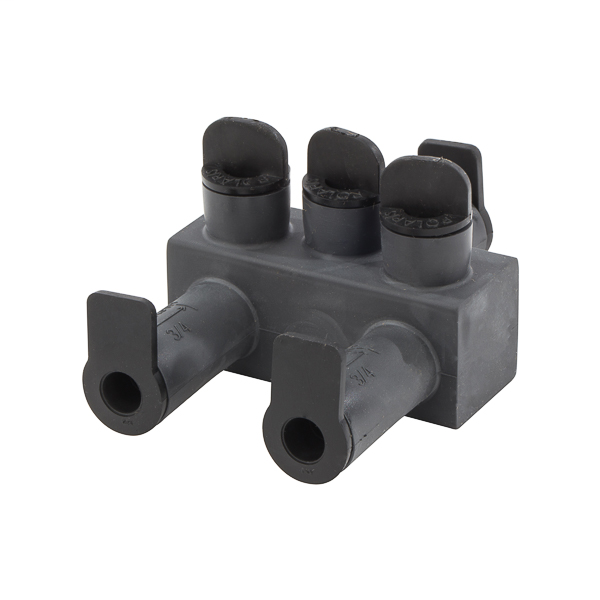

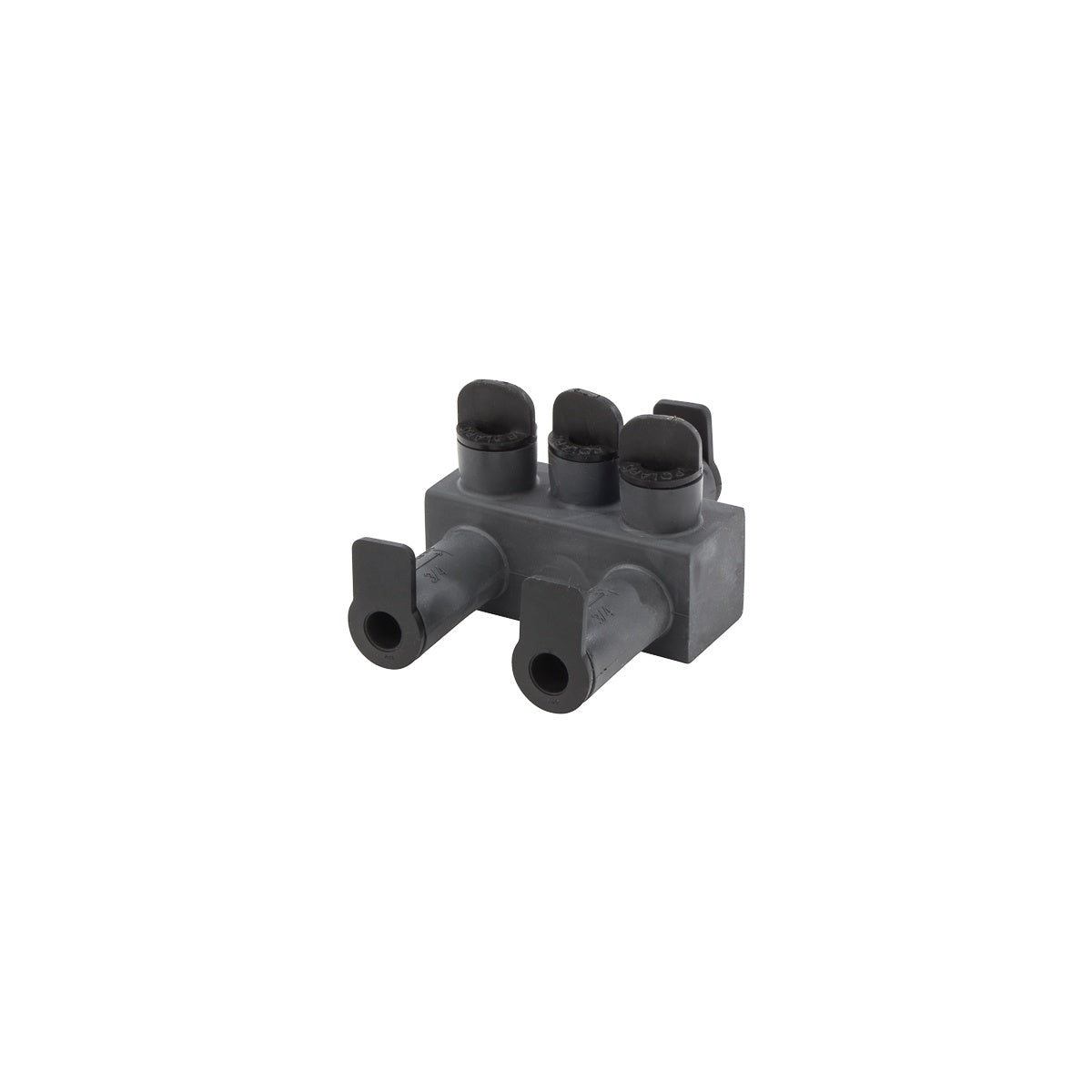

Submersible Conn. 2/0 - #14 Wire Termination Connector
This submersible connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable connections between 2/0 AWG and #14 AWG wires. It features a three-port design accommodating Class B & C wire types and is insulated with EPDM rubber for enhanced durability in demanding environments.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: ISPBO2/0
- Application: Wire Termination
- Material: Aluminum
- Finish: EPDM Rubber Insulated
- Color: Black
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 2.79 in x 4.18 in x 2.10 in
- Product Weight: 0.3060 lbs
Features
- Three conductor ports supporting 2/0 AWG to #14 AWG wire sizes
- Removable caps provide access to 3/16 internal hex pressure screws for secure connections
- Pre-filled with oxide inhibitor to protect against corrosion
- Di-electric silicone film on rocket and caps for easy assembly and disassembly
- Constructed from 6061-T6511 aluminum for strength and corrosion resistance
- Shipped in sealed bag with installation instructions
