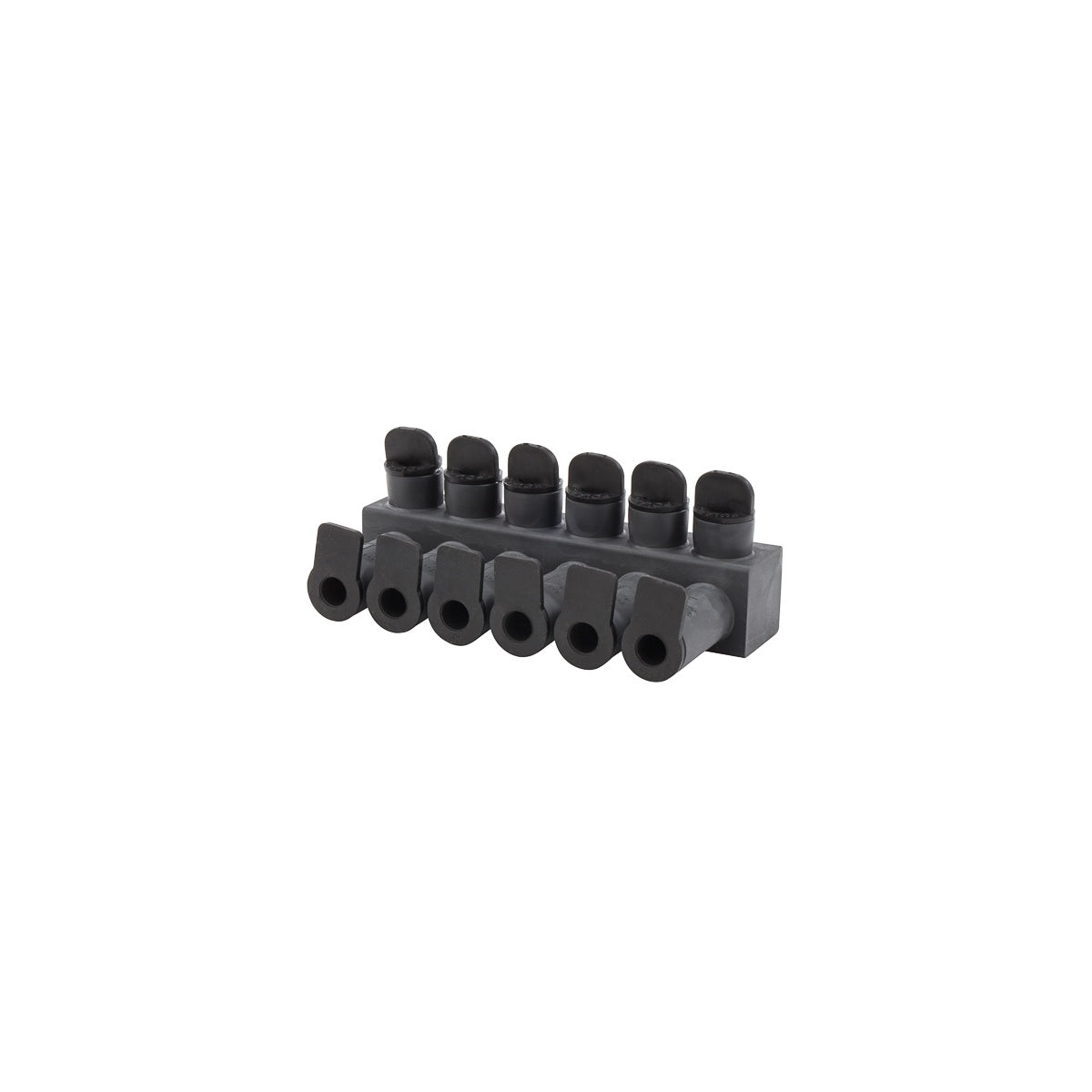

Submersible Conn. 2/0 - #14 Wire Termination Connector

This submersible connector is designed for wire termination applications, suitable for use by electrical distributors and lighting solutions providers requiring reliable connections for wire and cable systems. It supports six conductors ranging from 2/0 AWG to #14 AWG, making it versatile for various electrical installations. Manufactured by NSI Industries, this connector is engineered for submersible and direct burial use, ensuring durability in demanding environments.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPB2/0-6
• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C (Dual rated for copper or aluminum conductors)
• Wire Range: 2/0 AWG to #14 AWG
• Material: Aluminum (6061-T6 alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 5.37 in x 2.65 in x 2.10 in
• Product Weight: 0.5900 lbs
• Environmental Conditions: Rated for 90 °C
• UL Listing: UL486D Sealed Wire Connector (Dry location)
• Temperature Rating: Cold temperature rated to -45 °C, rated 600V, 90 °C
• Max Torque Value: 120 in./lbs.
• Hex/Wrench Size: 3/16 in.

Features

• Submersible to 6 feet in damp/wet locations and suitable for direct burial
• Constructed from high strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws minimize conductor strand damage and accommodate a range of conductor sizes
• Encapsulated in EPDM rubber with 125 mil nominal thickness providing high dielectric strength
• Resistant to abrasion, chemicals, and UV exposure
• Non-combustible material construction
• Removable caps provide access to internal hex pressure screws for secure installation
• Pre-filled with oxide inhibitor and shipped with installation instructions
