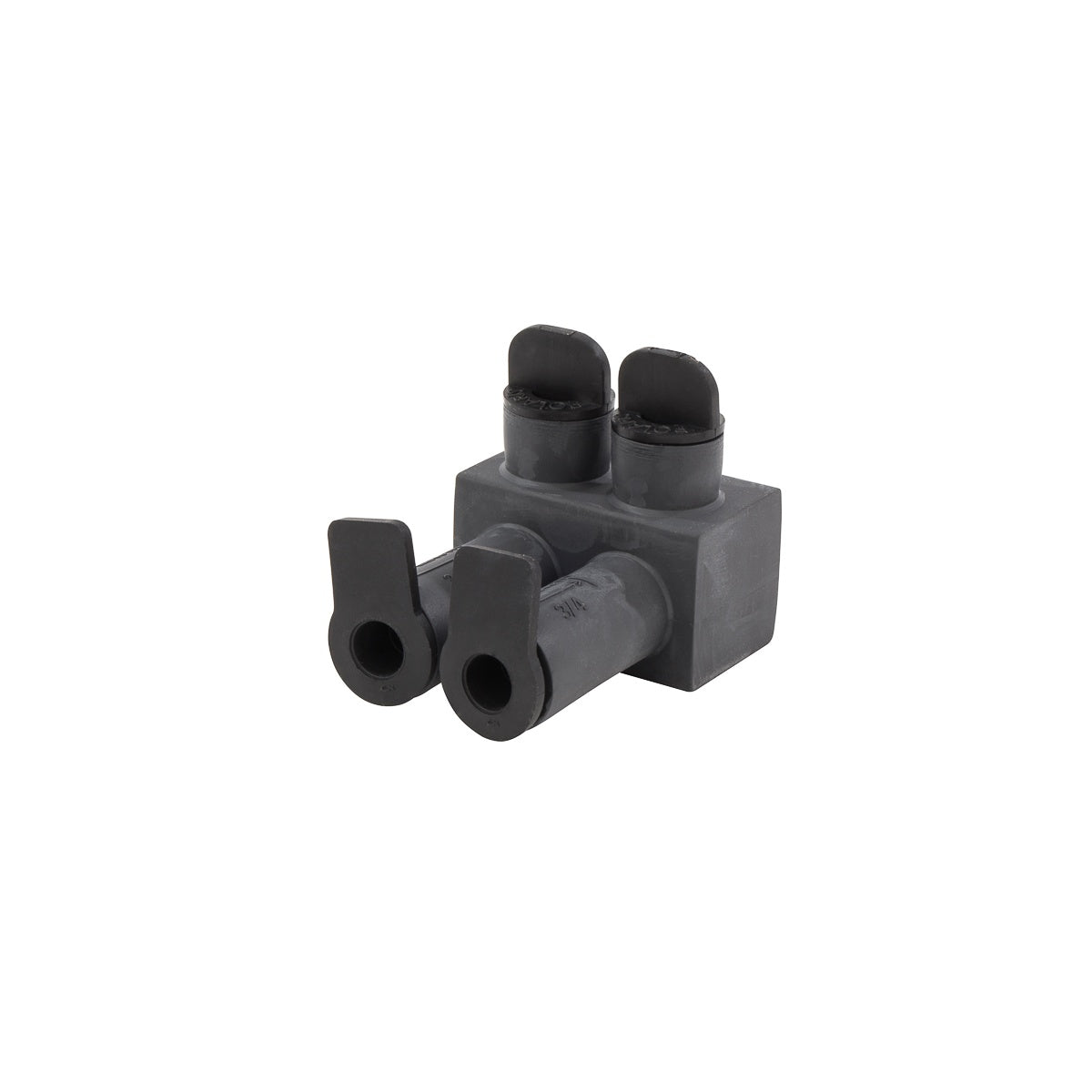

Submersible Conn. 2/0 - #14 Wire Termination Connector

This submersible connector is designed for wire termination applications, suitable for electrical distributors and lighting solutions requiring reliable connections for wire and cable. Manufactured by NSI Industries, it supports Class B & C wire types and is ideal for use in wet or damp environments, ensuring secure and durable connections in switchgear and related electrical systems.

Specifications

• Application: Wire Termination
• Wire Range: 2/0 AWG to #14 AWG
• Number of Conductors: 2
• Number of Poles: 1
• Material: Aluminum
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 1.93 in x 2.65 in x 2.10 in
• Environmental Conditions: Rated to 90 °C
• Wire Type: Class B & C
• Manufacturer: NSI Industries
• Manufacturer Part #: ISPB2/0-2
• Product Weight: 0.2040 lbs

Features

• Submersible to 6 feet for damp or wet locations and direct burial (UL486D compliant)
• Manufactured from high-strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes
• Encapsulated in EPDM rubber with a nominal thickness of 125 mils, providing high dielectric strength
• Abrasion, chemical, and UV resistant
• Will not support combustion
• Removable caps provide access to 3/16 internal hex pressure screws for secure installation
• Dual rated for copper or aluminum conductors
• Pre-filled with oxide inhibitor and shipped in sealed bags with installation instructions
