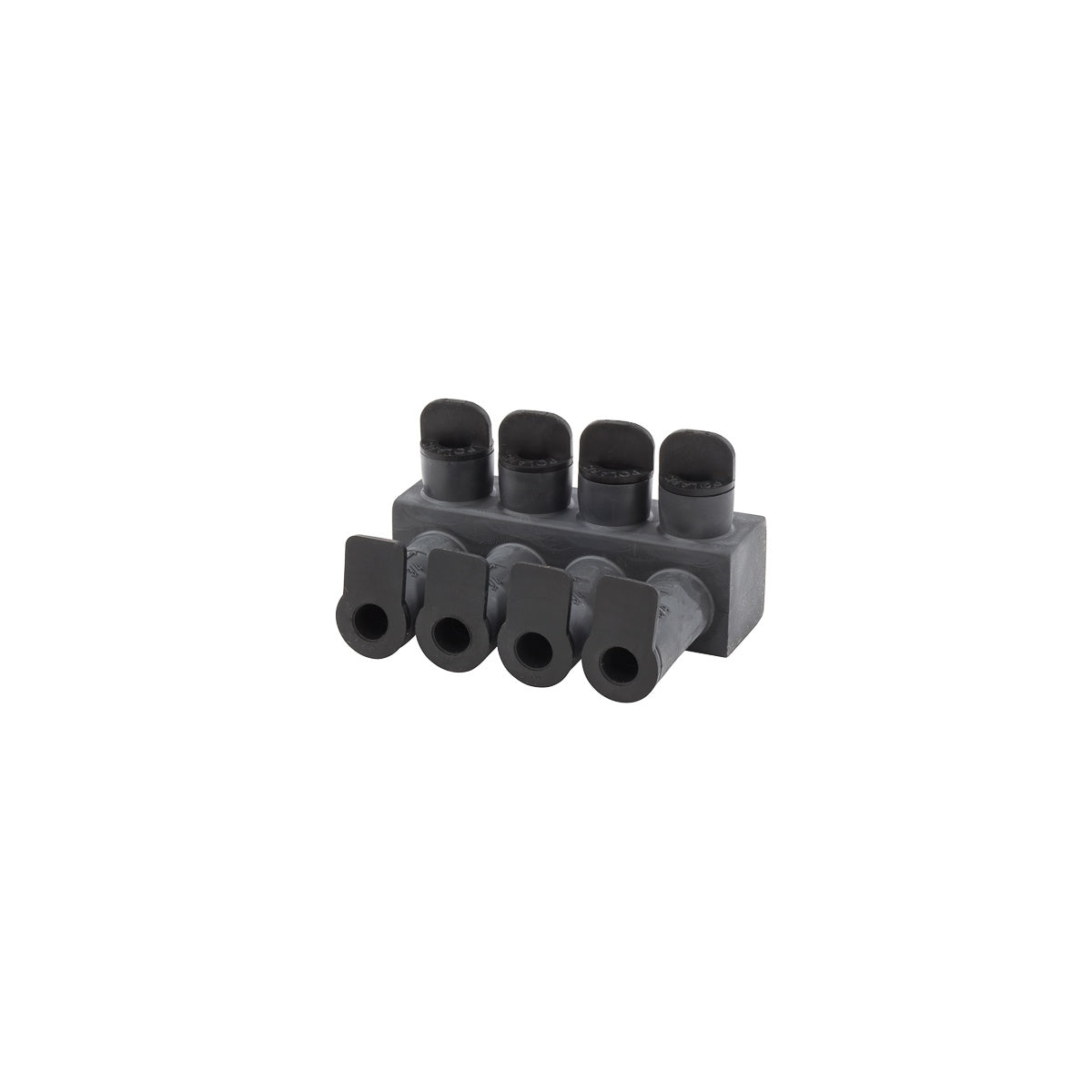

Submersible Conn. 2/0 - #14 Wire Termination Connector

This submersible connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable connections for wire and cable ranging from 2/0 AWG to #14 AWG. It is a 4-port connector manufactured by NSI Industries, providing robust performance in wet and damp environments.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: ISPB2/0-4
• Application: Wire Termination
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C (dual rated for copper or aluminum conductors)
• Wire Range: 2/0 AWG - #14 AWG
• Material: Aluminum (6061-T6 alloy)
• Finish: EPDM Rubber Insulated
• Color: Black
• Dimensions (L x W x H): 3.65 in x 2.65 in x 2.10 in
• Environmental Conditions: Rated for 90 °C
• Product Weight: 0.3960 lbs
• UL Listing: UL 486D Sealed Wire Connector (dry location)
• Temperature Rating: -45 °C to 90 °C
• Voltage Rating: 600V

Features

• Submersible up to 6 feet for damp and wet locations, suitable for direct burial
• Constructed from high-strength 6061-T6 aluminum alloy for premium electrical and mechanical performance
• Encapsulated in EPDM rubber with 125 mil nominal thickness providing high dielectric strength
• Radial tipped set-screws reduce conductor strand damage and accommodate multiple conductor sizes and types in one connector
• Abrasion, chemical, and UV resistant
• Will not support combustion
• Removable caps provide access to 3/16 internal hex pressure screws for secure installation
• Pre-filled with oxide inhibitor and shipped with installation instructions in sealed bag
