Sub-Metering Current Transformers, 200A - Leviton Electrical Measurement Solutions

Leviton's Sub-Metering Current Transformers (CTs), rated at 200 amperes with a 200:0.1A ratio, are designed for accurate power consumption measurement in commercial, institutional, industrial, and government applications. These solid core CTs are intended for use with VerifEye‚Ñ¢ Series 1000, 2000, 3500, and 8000 meters, Mini Meters, and Multiple Meter Units (MMUs). As a trusted electrical distributor and switchgear supplier, Leviton provides CTs that support load profiling, energy management, tenant cost allocation, and compliance with Title 24 and ASHRAE 90.1 standards.

Specifications

• Amperage: 200 amperes
• Primary to Secondary Ratio: 200:0.1A
• Core Type: Solid core
• Dimensions (Diameter): 0.72 inches (18.3 mm)
• Lead Length: 48 inches (1219 mm)
• Maximum Rated Voltage: 600 V
• Operating Ambient Temperature: -30 to 55¬∞C
• Relative Humidity: Up to 90%
• Pollution Degree: 2 (normally non-conductive pollution)
• Compliance: UL and cUL listed, Title 24 Compliant, ASHRAE 90.1 Compliant
• Product Weight: 0.8125 lbs

Features

• Accurate, revenue-grade measurement with ANSI-certified performance
• Solid core design for cost-effective, durable installation requiring circuit de-energization

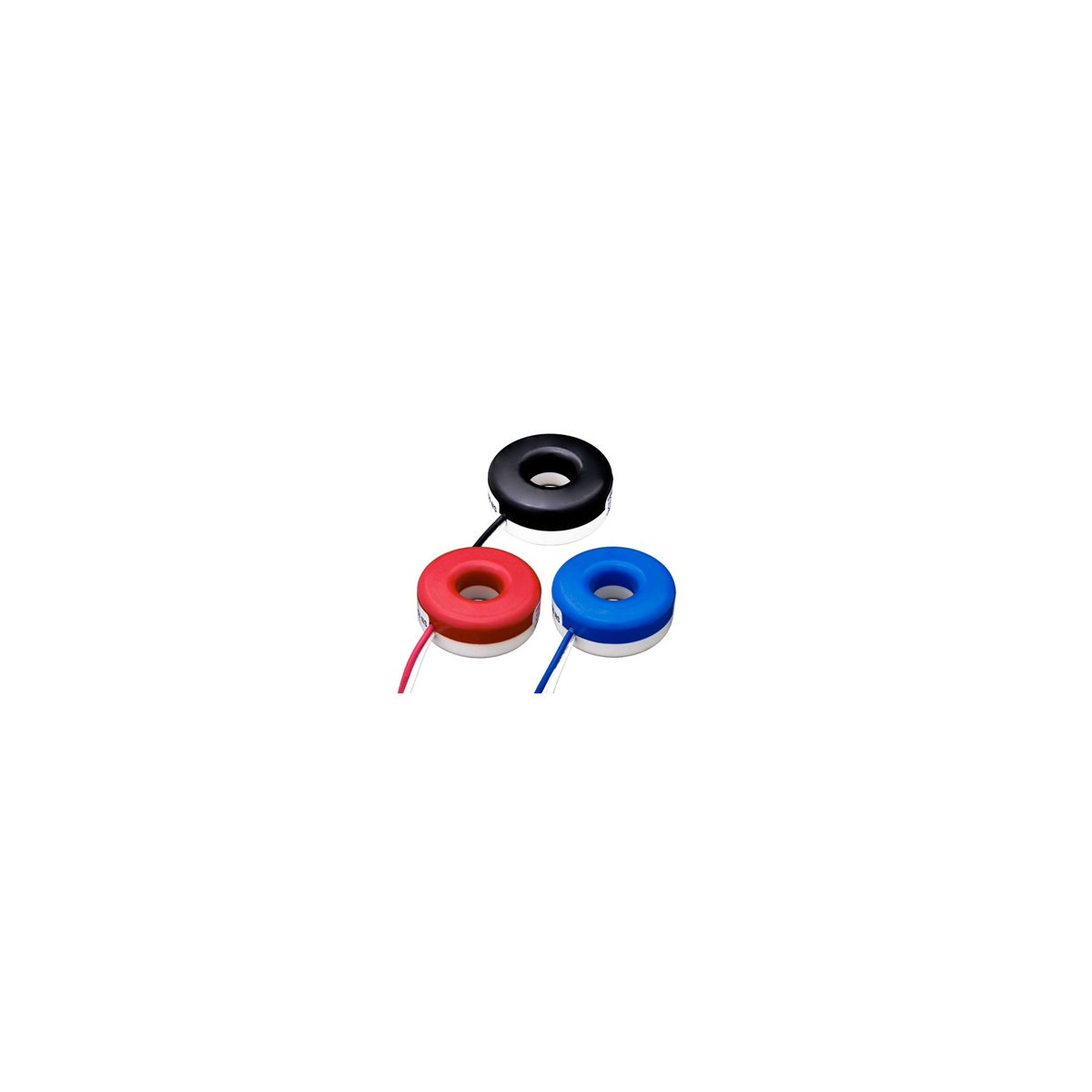

• Color-coded leads (Blue, Red, Black) to assist with correct phase identification and installation
• Built-in voltage suppression devices for enhanced safety preventing hazardous voltages on CT secondaries
• Supports energy monitoring applications including AMR/BAS/BMS/EMS integration and tenant cost allocation
• Suitable for indoor use in compliance with electrical codes and standards
• Lead wires extendable up to 500 feet with twisted wire to maintain accuracy
