STUD WALL & DRYWALL Extension Plate Bracket

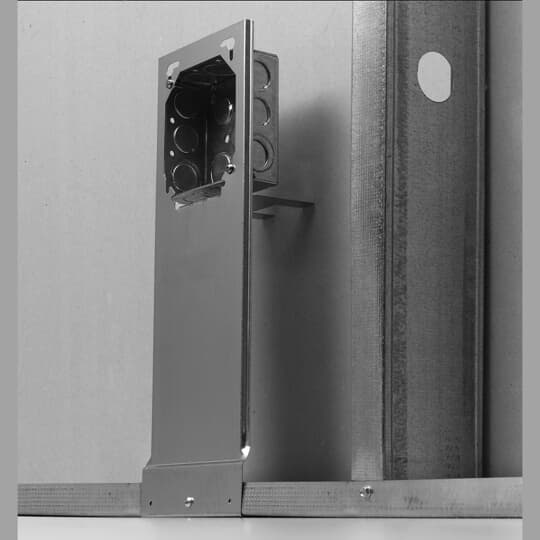

The Steel City SSF-SV18 is an extension plate bracket designed for mounting 4 inch and 4-11/16 inch outlet boxes on stud walls and drywall assemblies. Manufactured from pre-galvanized steel with a galvanized finish, this bracket supports secure electrical box installation in metal stud framing. It is suitable for electrical distributors and switchgear suppliers requiring reliable mounting solutions for wire and cable management.

Specifications

• Material: Steel
• Color: Silver
• Height: 18 inches
• Fits Outlet Boxes: 4 inch and 4-11/16 inch
• Product Weight: 20.3 lbs
• Knockouts: None
• Manufacturer: Steel City
• Manufacturer Part Number: SSF-SV18
• Standards: UL E13938
• Country of Origin: China

Features

• Improved bracket with bendable stabilizer leg for use on 2-1/2 inch and 3-1/2 inch metal studs
• Mounts outlet boxes 12 inch or 18 inch offset from a metal stud track or stud
• Drywall ring is brought within 1/6 inch of drywall surface to prevent bulging or break out
• Pre-galvanized steel construction with galvanized finish for corrosion resistance
• Compatible with standard 4 inch and 4-11/16 inch outlet boxes
• Designed for use in stud wall and drywall applications in electrical installations
