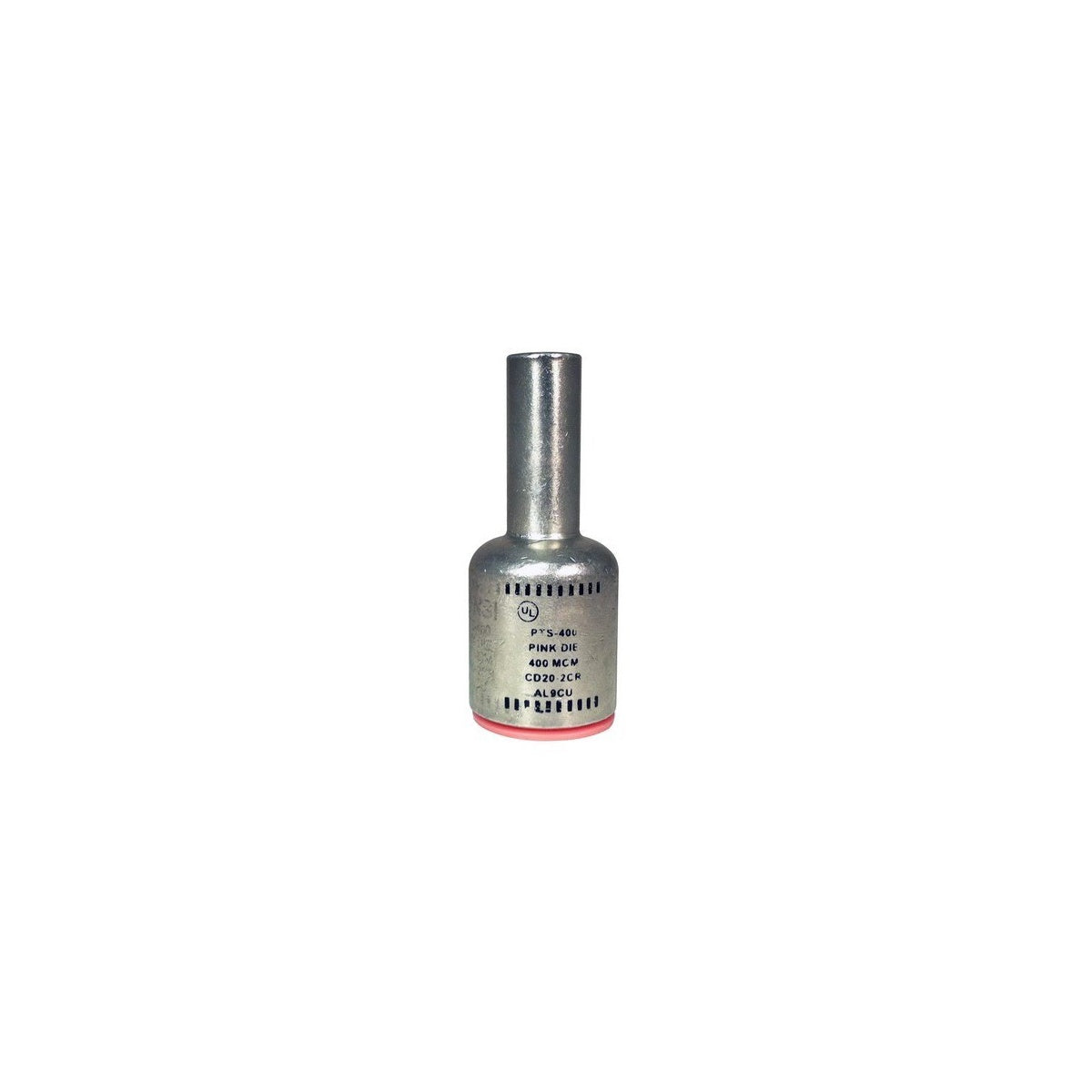

Straight Solid Pin Terminal Connectors 500 MCM Awg Cable To 350 MCM Pin - Bi-Metallic Pin Terminals

These Straight Solid Pin Terminal Connectors are designed for electrical distributors and switchgear suppliers requiring reliable cable terminations between aluminum and copper conductors. Ideal for lighting solutions and wire and cable applications, they provide a secure connection from 500 MCM AWG cable to a 350 MCM pin, ensuring compatibility and conductivity in industrial electrical systems.

Specifications

• Material: 6061-T6 Aluminum Alloy
• Voltage Rating: 600 V
• Wire Range: 500 MCM cable to 350 MCM pin size
• Color Coding: Pink
• Product Weight: 0.3000 lbs
• Manufacturer Part #: 90982
• UL Certified: Yes
• cUL Certified: Yes
• RoHS Compliant: Yes
• Electro Tin Plated

Features

• Manufactured from high strength, high conductivity aluminum alloy
• Electro tin plated for corrosion resistance
• Oxide inhibitor coated barrel to prevent oxidation
• EDPM rubber insulating cover for electrical insulation and durability
• Suitable for aluminum to copper cable terminations

Downloads & Links

• Spec Sheet
