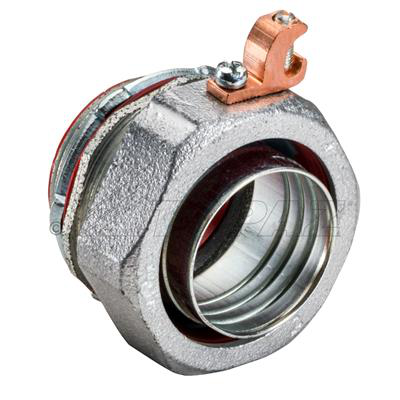

Straight Liquidtight Connector with Copper Grounding Lug 1-1/2" – Liquidtight Conduit Fitting

This Straight Liquidtight Connector with Copper Grounding Lug is designed to connect liquidtight conduit and terminate an external bonding conductor running parallel to the conduit. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable grounding and conduit connection solutions in hazardous locations. The fitting is UL listed and meets NEC requirements for grounding and hazardous location use, making it ideal for wire and cable installations in demanding environments.

Specifications

• Conduit Size: 1-1/2"
• Material: Malleable iron with copper lug and steel locknut
• Finish: Zinc electro plated
• Weight: 0.83 lbs
• UL Listings: UL 467, UL 486A
• Standards: Fed. Spec. W-S-610E, NEMA GR 1-2017
• Manufacturer Part #: 475CSGR

Features

• Liquidtight, raintight, and oiltight design
• Copper lay-in grounding lug for effective grounding
• Insulated throat protects conductors from abrasion damage
• Zinc electro plated finish for enhanced durability
• Suitable for hazardous locations per NEC 501-4(b), 502-4(a), (2)503-3(a) Class 1 Div.2, Class II Div.1 and 2, Class III Div.1 and 2
