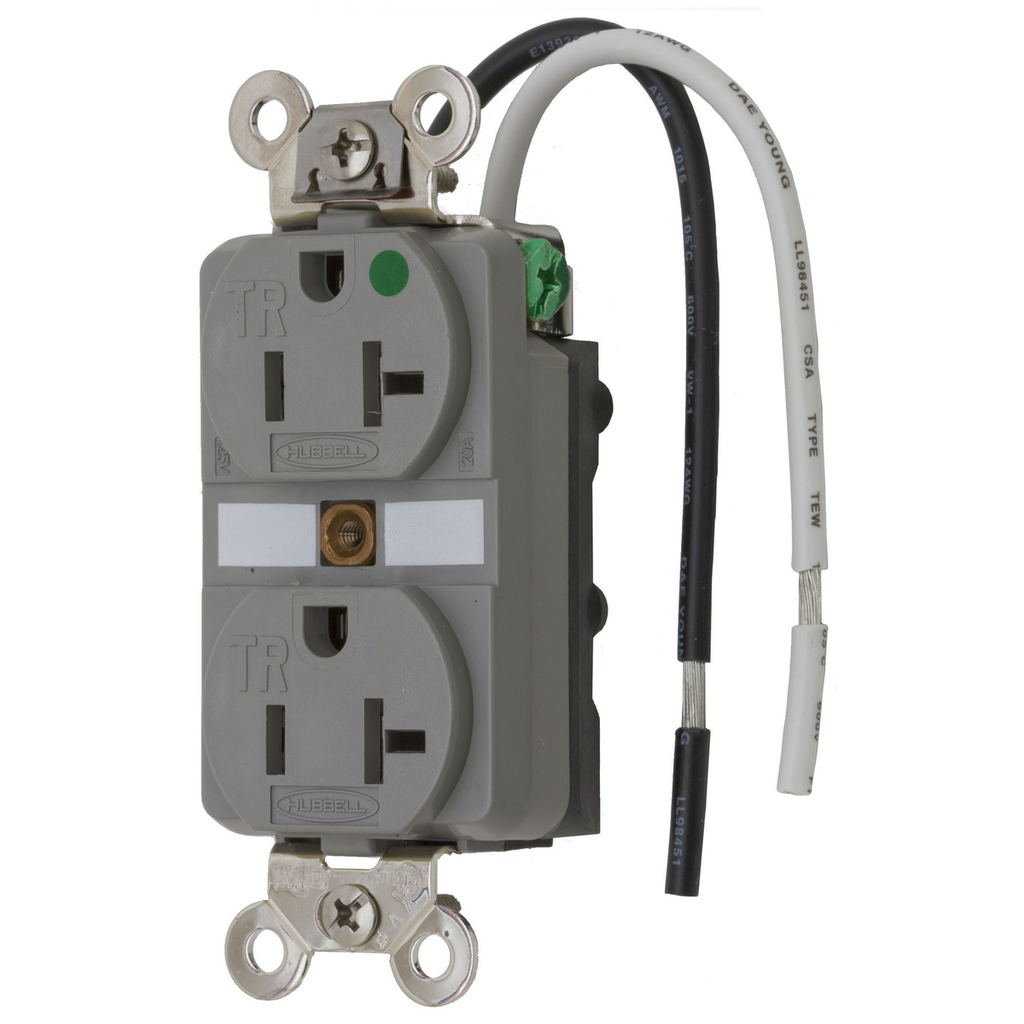

Straight Blade Duplex Receptacle Safety Grade Hospital Grade 20A

This Straight Blade Duplex Receptacle is designed for extra heavy duty hospital grade applications, suitable for electrical distributors and lighting solutions requiring reliable and safe wire and cable connections. It features a 2-pole, 3-wire grounding configuration rated for 20 amperes at 125 volts, making it appropriate for use in medical and other critical environments. The receptacle provides tamper-resistant safety and is intended for indoor dry locations unless additional protection is applied.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Amperage: 20 amperes
• Voltage Rating: 125V
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Horsepower Rating: 1 horse power
• Dielectric Strength: Withstands 2,000V minimum
• Color: Gray
• Width: 2.200 in
• Product Weight: 0.3500 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8300SGGYA

Features

• Straight blade duplex design with tamper-resistant safety for hospital-grade use
• Back and side wired screw terminals for versatile wiring options
• Thermoplastic construction for durability and electrical insulation
• Meets National Electrical Code requirements for pediatric locations
• Rated for 20A and 125V with 1 horsepower motor capacity
• Designed for secure mounting with screw mount configuration
• Withstands high dielectric strength of 2,000 volts minimum
• Color-coded gray for easy identification in electrical installations
