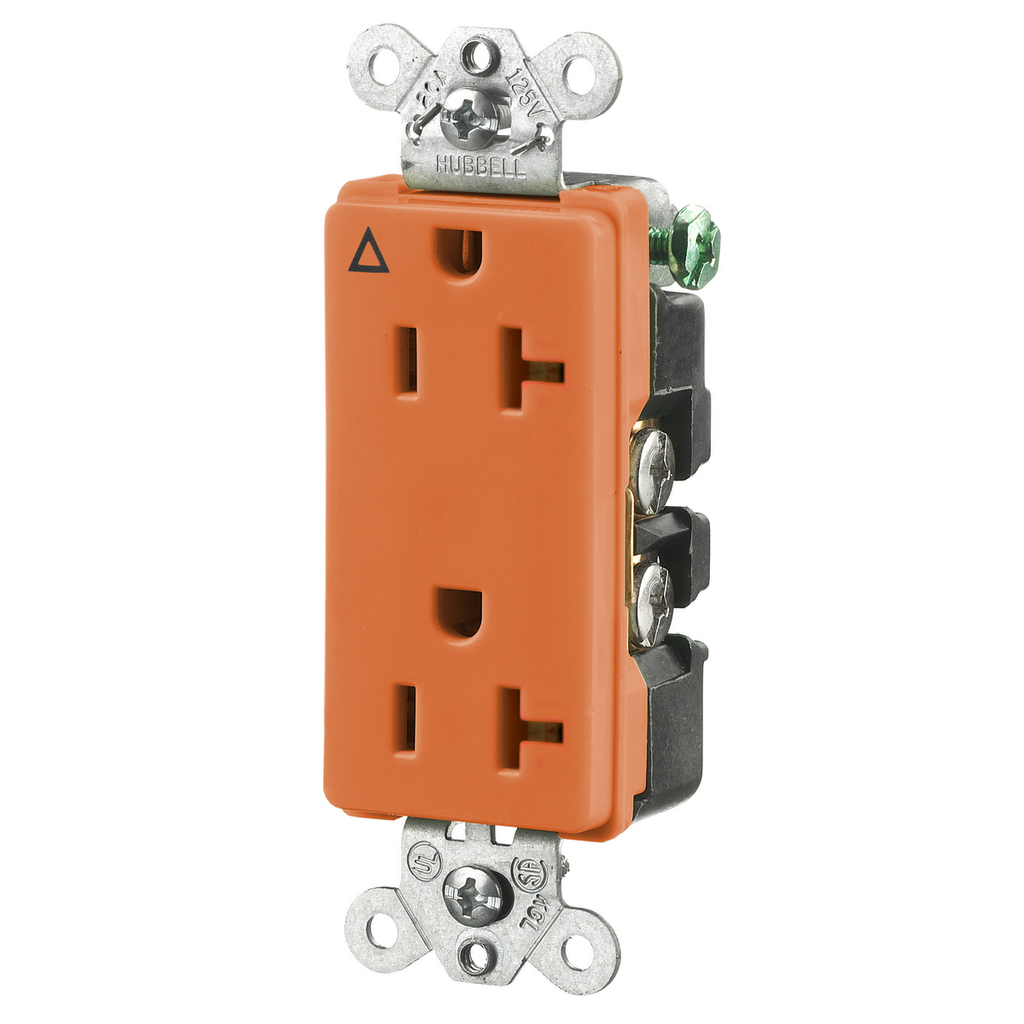

Straight Blade Duplex Receptacle Commercial/Decorator Grade, Isolated Ground 20A

This Straight Blade Duplex Receptacle is designed for commercial and decorator-grade applications requiring isolated ground wiring. It supports 20 amperes at 125 volts with a 2-pole, 3-wire grounding configuration, making it suitable for heavy-duty electrical distribution and wiring installations. Ideal for electrical distributors and switchgear suppliers focusing on reliable, code-compliant wiring devices.

Specifications

• Application: Heavy Duty Style Line Decorator Duplex
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon
• Color: Orange
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Horsepower Rating: 1 horse power
• Width: 1.790 in
• Product Weight: 0.2500 lb
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: IG2162

Features

• Isolated ground design reduces electromagnetic interference for sensitive equipment
• Back and side wired screw terminals provide flexible wiring options
• Heavy-duty construction suitable for commercial electrical distribution
• Compliance with national and local electrical codes when installed by qualified electricians
• Mounting strap equipped with approved grounding clip for grounded metallic boxes
