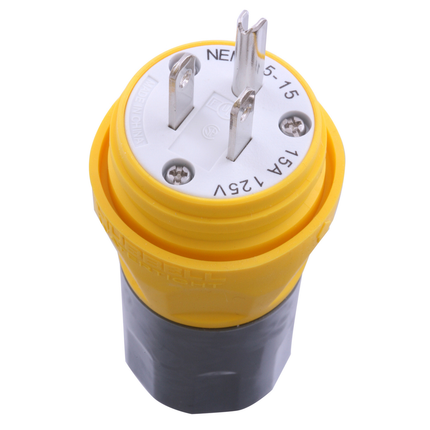

Straight Blade Devices, Thermoplastic Elastomer Water Tight – Industrial Electrical Connector

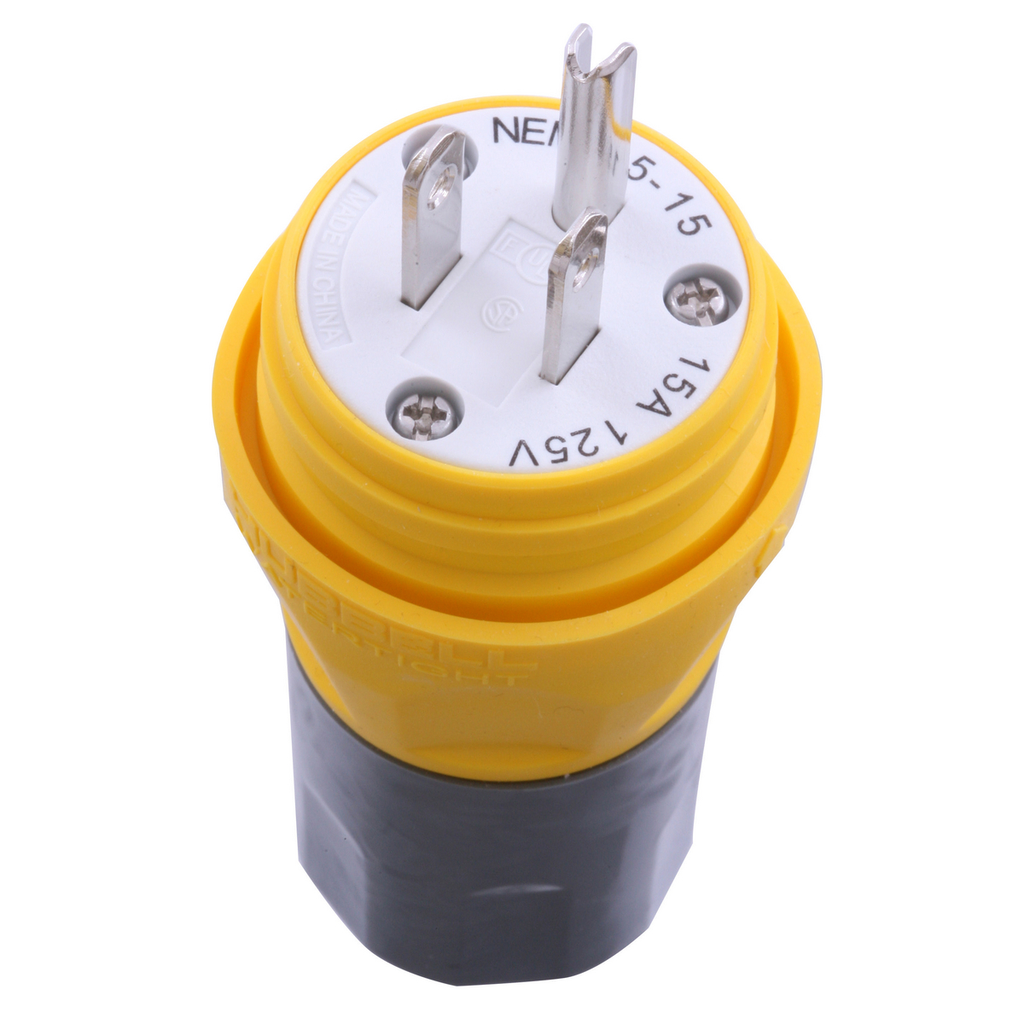

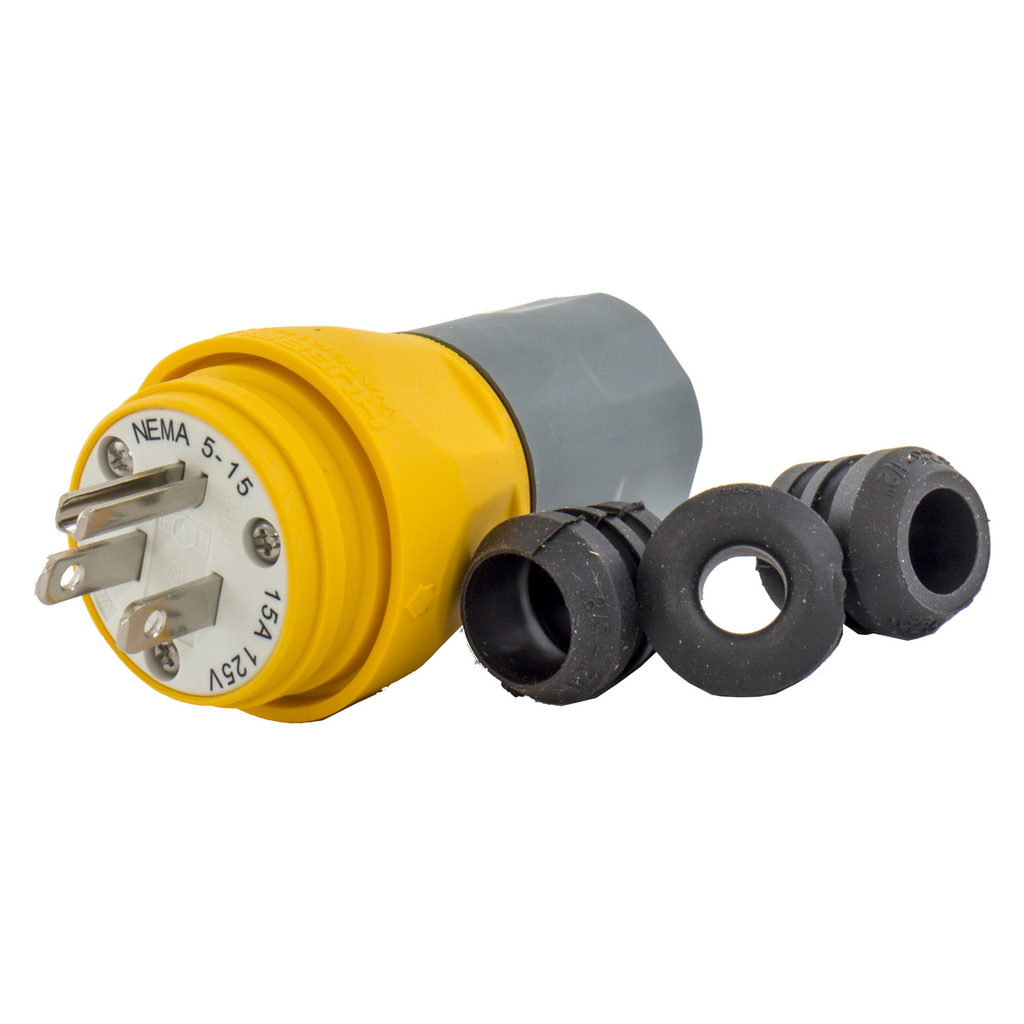

This Straight Blade Device by Hubbell Wiring Device-Kellems is an industrial/commercial grade electrical connector designed for reliable and safe wire and cable connections in demanding environments. It features a thermoplastic elastomer body that is watertight, making it suitable for wet and harsh conditions. The device is cord mounted with screw terminals, supporting a 2-pole, 3-wire grounding configuration rated for 15 amperes and 125 volts. Its yellow color enhances visibility on job sites, and the unit is made in the USA, ensuring quality and compliance with industry standards.

Specifications

• Application: Industrial/Commercial
• Current Rating: 15 amperes
• Voltage Rating: 125 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Elastomeric/Composite
• Color: Yellow
• Mounting: Cord Mounted
• Connection: Screw Terminals
• NEMA Rating: 5-15P
• Product Weight: 6.3450 lbs
• Width: 3.260 in
• Environmental Conditions: Watertight
• Made in USA: Yes
• Manufacturer Part #: HBL14W47A
• Country of Origin: United States
• UPC: 783585131191

Features

• Smooth body design minimizes collection points, simplifying the wash down process

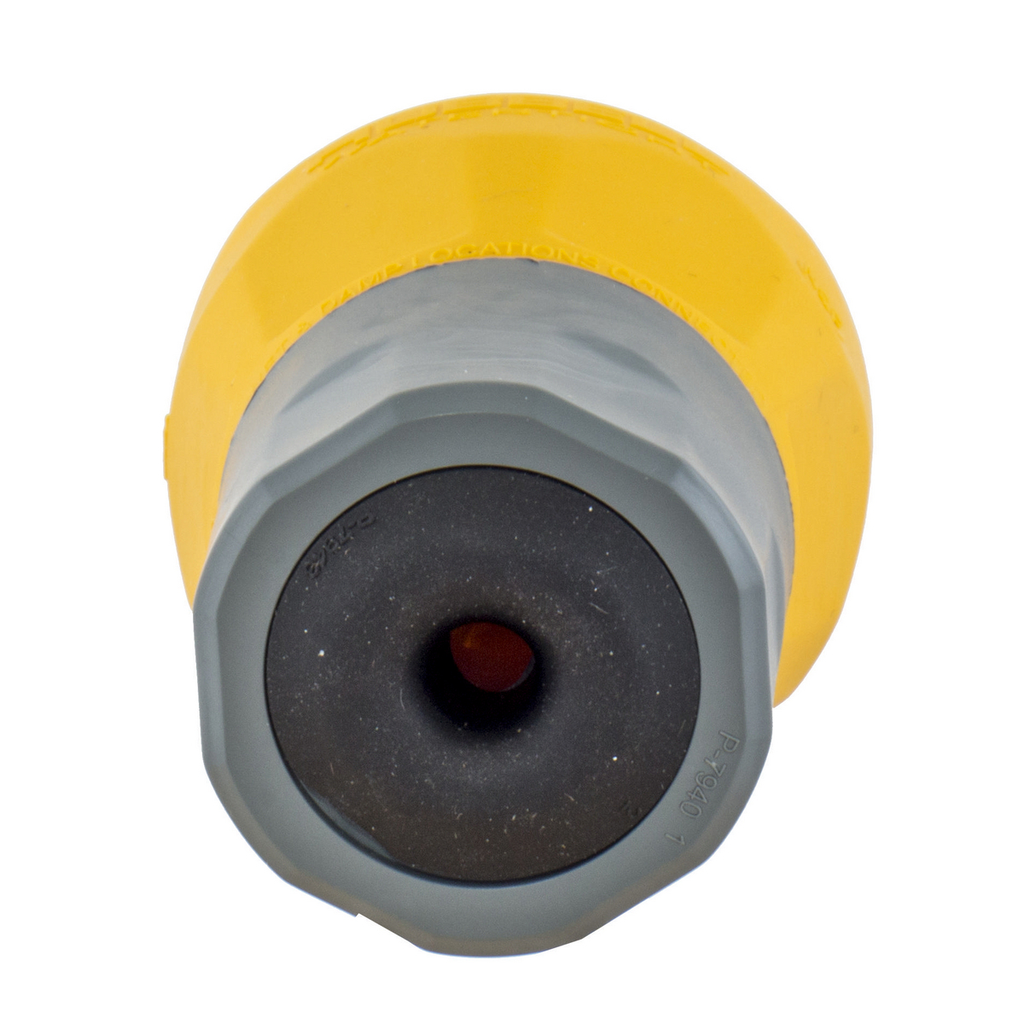

• Strain relief nut seals on the body to minimize debris collection
• Stainless steel hardware and corrosion-resistant connection points for durability
• Rated for current interruption per UL498 with dielectric voltage of 2500V AC
• Operating temperature range from -40°C (without impact) to +60°C continuous
• UL Listed and CSA Certified to Type 4, 4X, 12, 6, 6P for moisture resistance
• UV stabilized materials for outdoor use
• Industry standards compliance: IP69K rating, UL498, CSA C22.2 No. 42, NEMA WD-1, WD-6, ANSI standards
