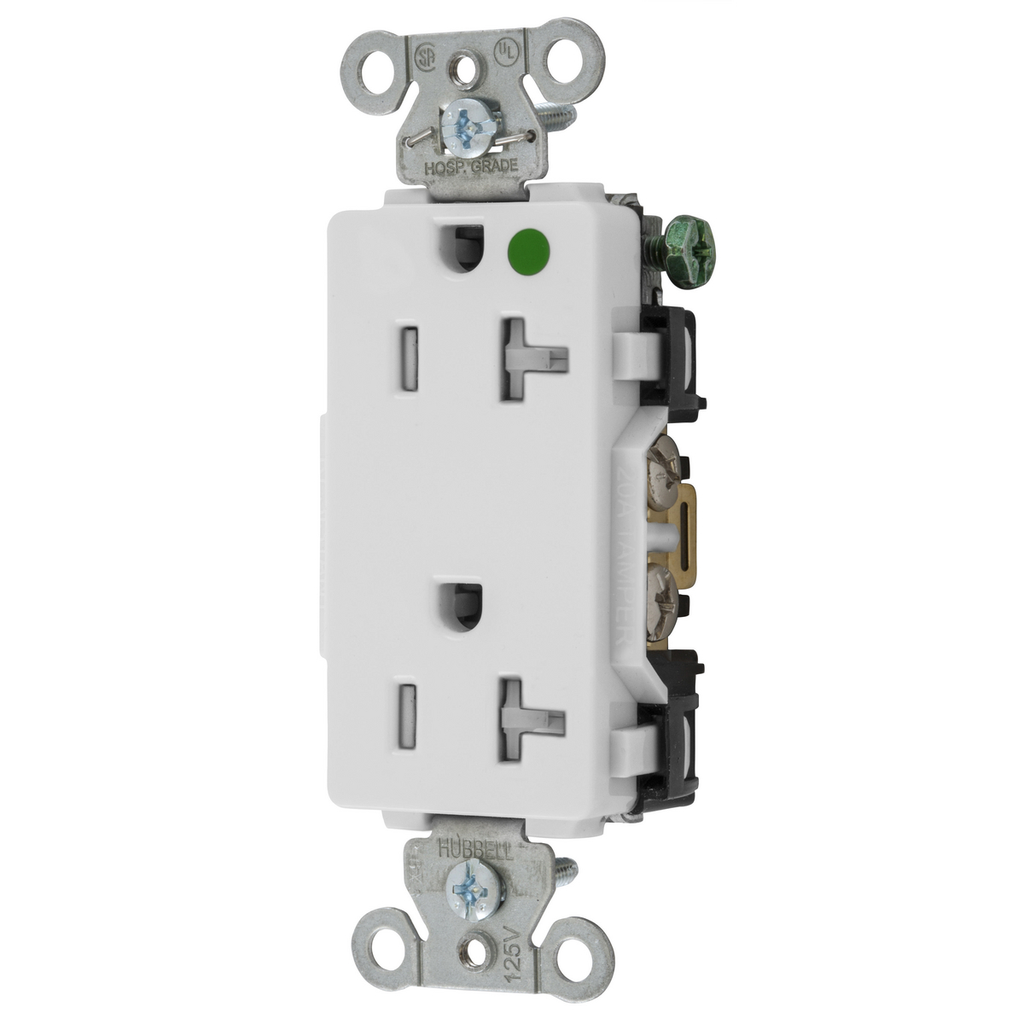

Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, White
SKU: #136374
Part: #2182WTRA
UPC: 783585542058
Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, White
SKU: #136374
Part: #2182WTRA
UPC: 783585542058
Description
Straight Blade Devices Hubbell-Pro Heavy Duty Hospital Grade Tamper Resistant Duplex Receptacle
This Hubbell-Pro Straight Blade Device is a heavy duty, hospital grade tamper-resistant decorator duplex receptacle designed for demanding electrical applications. It is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections with enhanced safety features. The device supports 20 amperes at 125 volts, 2-pole, 3-wire grounding, and is compliant with NEC® tamper-resistant requirements, making it ideal for institutional environments such as hospitals, schools, and assisted living facilities.
Specifications
- Application: Hubbell-Pro Heavy Duty Hospital Grade
- Color: White
- Current: 20 amperes
- Amperage Rating: 20 A
- Material: Nylon (face), PBT (base)
- Width: 1.900 in
- Connection: Terminal Screws
- Mounting: Mounting Screws
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- NEMA Rating: 5-20R
- Horsepower: 1 horse power
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected by Additional Means
- Made in USA: Yes
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: 2182WTRA
Features
- Tamper-resistant shutter complies with NEC® requirements
- Best-in-class tamper-resistant mechanism eliminates plug-in difficulty
- Fed-Spec UL listed and tested to UL Hospital Grade standards for impact resistance and abrupt plug pull-out
- Triple wipe brass contacts for enhanced electrical performance
- High impact resistant nylon decorator face
- Steel mounting strap and galvanized steel mounting hardware
- Automatic self-grounding stainless steel staple
- UL 94V-2 flammability rated
- Certified for current interrupting at full rated current
- Terminal accommodation for #12–#10 AWG stranded or solid copper wire
- NAFTA and Trade Act compliant
