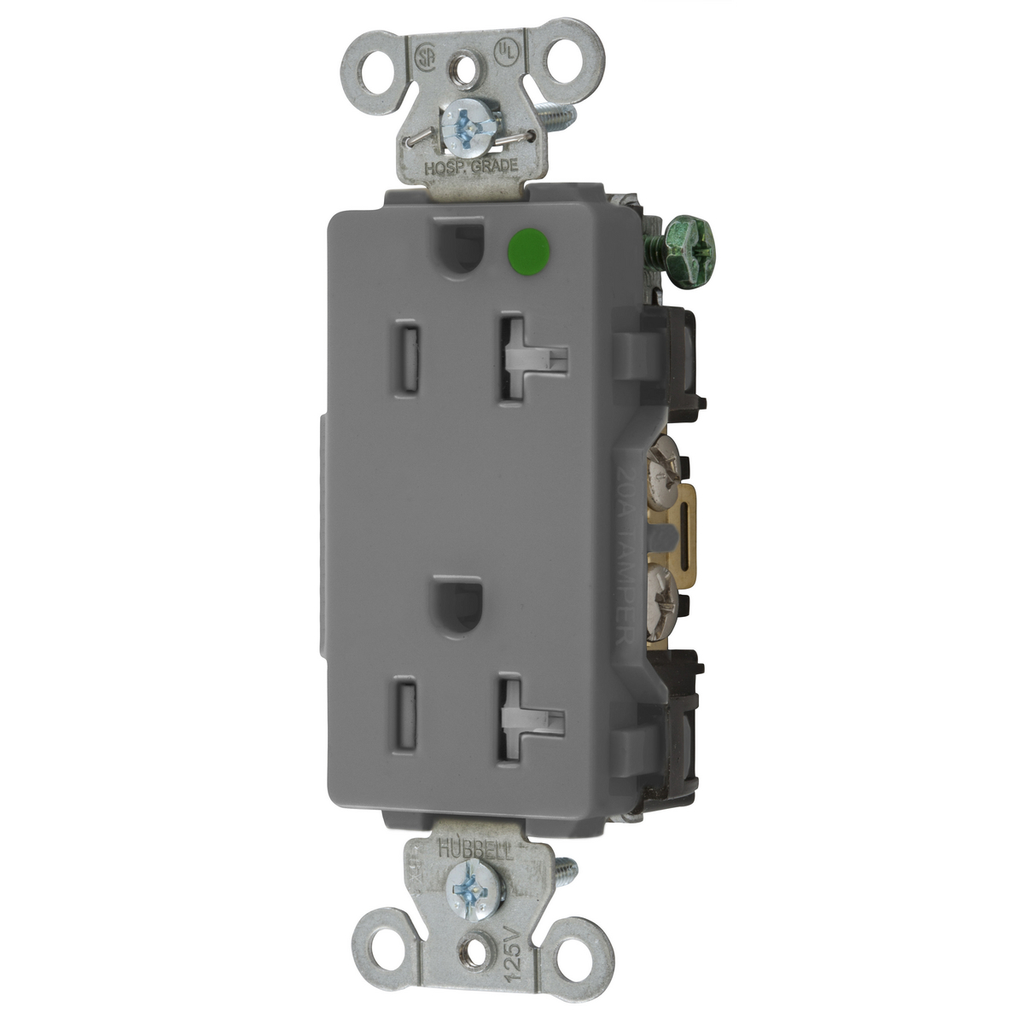

Straight Blade Devices Tamper Resistant Decorator Duplex Receptacle – Hubbell-Pro Heavy Duty Hospital Grade

This Hubbell-Pro Heavy Duty Hospital Grade straight blade duplex receptacle is designed for reliable electrical distribution in healthcare and commercial environments. It features tamper-resistant shutters for enhanced safety and is suitable for use by electrical distributors and switchgear suppliers requiring durable, code-compliant wiring devices. The receptacle supports 20 amperes at 125 volts with 2-pole, 3-wire grounding, meeting the needs of demanding lighting solutions and wire and cable installations.

Specifications

• Application: Hubbell-Pro Heavy Duty Hospital Grade
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon (Face), PBT (Base)
• Color: Gray
• Width: 1.910 in
• Horsepower Rating: 1 horse power
• Dielectric Strength: Withstands 2,000V minimum
• Product Weight: 2.25 lbs
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 2182GYTRA

Features

• Tamper-resistant shutter complies with national electrical code requirements
• Triple wipe brass contacts for reliable conductivity
• High impact resistant decorator face
• Steel mounting strap and galvanized steel mounting hardware for durability
• Automatic self-grounding stainless steel staple
• UL Listed to UL498 and CSA certified
• Fed. Spec. W-C-596 and NEMA WD-6 compliant
• Certified for current interrupting at full rated current
• UL 94V-2 flammability rating
• Operating temperature range: -40°C to 75°C continuous (without impact)
