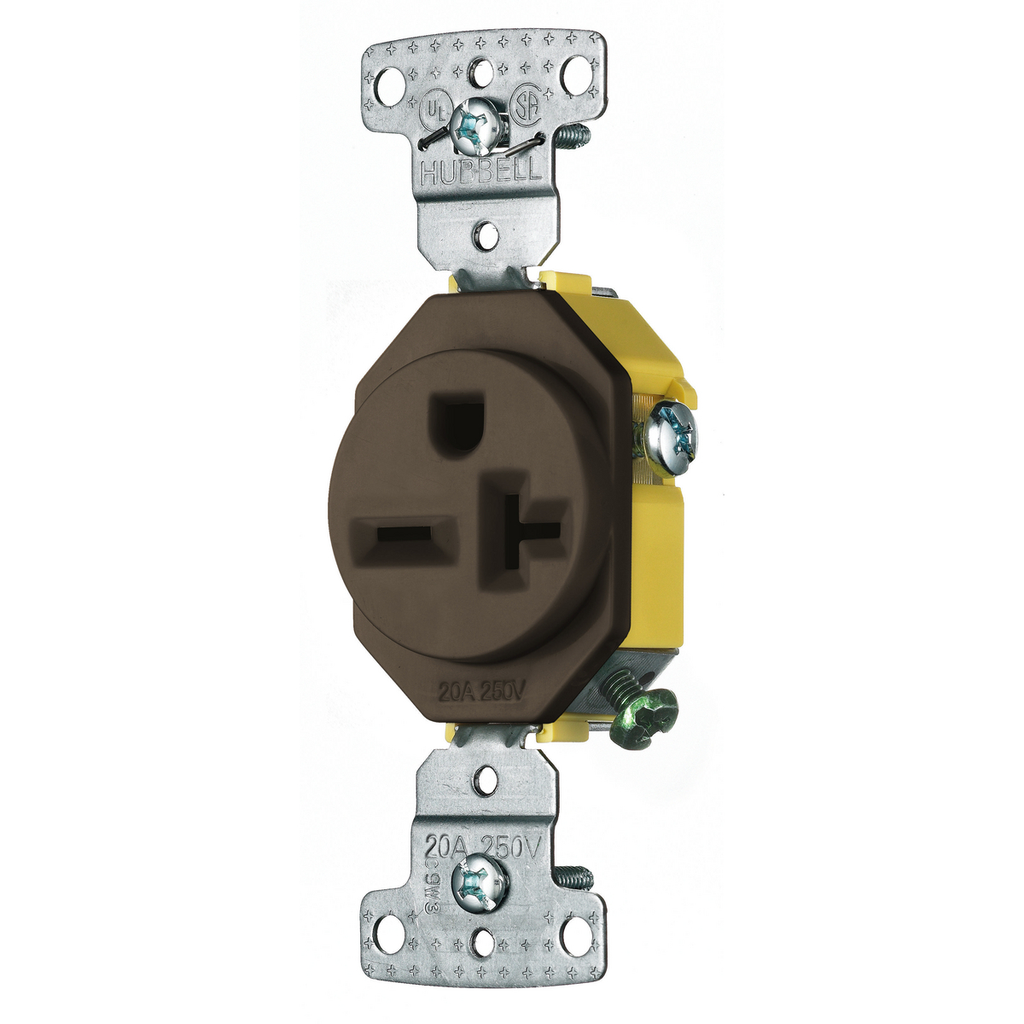

Straight Blade Devices, Receptacles, Single, Residential Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Self Grounding, Brown
SKU: #138565
Part: #CR205
UPC: 783585328515
Straight Blade Devices, Receptacles, Single, Residential Grade, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Self Grounding, Brown
SKU: #138565
Part: #CR205
UPC: 783585328515
Description
Straight Blade Devices Receptacles Single Residential Grade 20A 250V
This Hubbell Wiring Device-Kellems receptacle is designed for residential grade electrical applications. It is a single receptacle with a straight blade configuration, rated for 20 amperes and 250 volts. Suitable for indoor dry environments unless additional protection is applied, this device supports 2-pole, 3-wire grounding connections. It is ideal for electrical distributors and lighting solution providers requiring reliable wire and cable terminations and compatible switchgear components.
Specifications
- Amperage: 20 amperes
- Voltage Rating: 250 volts
- Poles: 2-Pole
- Wiring: 3-Wire Grounding
- NEMA Rating: 6-20R
- Material: Thermoplastic
- Color: Brown
- Mounting: Screw Mount
- Connection: Screw Terminals
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Wire Size: #14 AWG to #12 AWG
- Phase: Single Phase
- Wattage: 5000
- Width: 1.650 in
- Product Weight: 1.2 lbs
- Country of Origin: China
- Manufacturer Part #: CR205
Features
- Self Grounding design for enhanced electrical safety
- Thermoplastic construction ensures durability and electrical insulation
- Screw terminal connections provide secure wiring
- Compatible with standard residential wiring systems
