Straight Blade Devices, Tamper Resistant Hospital Grade Receptacle

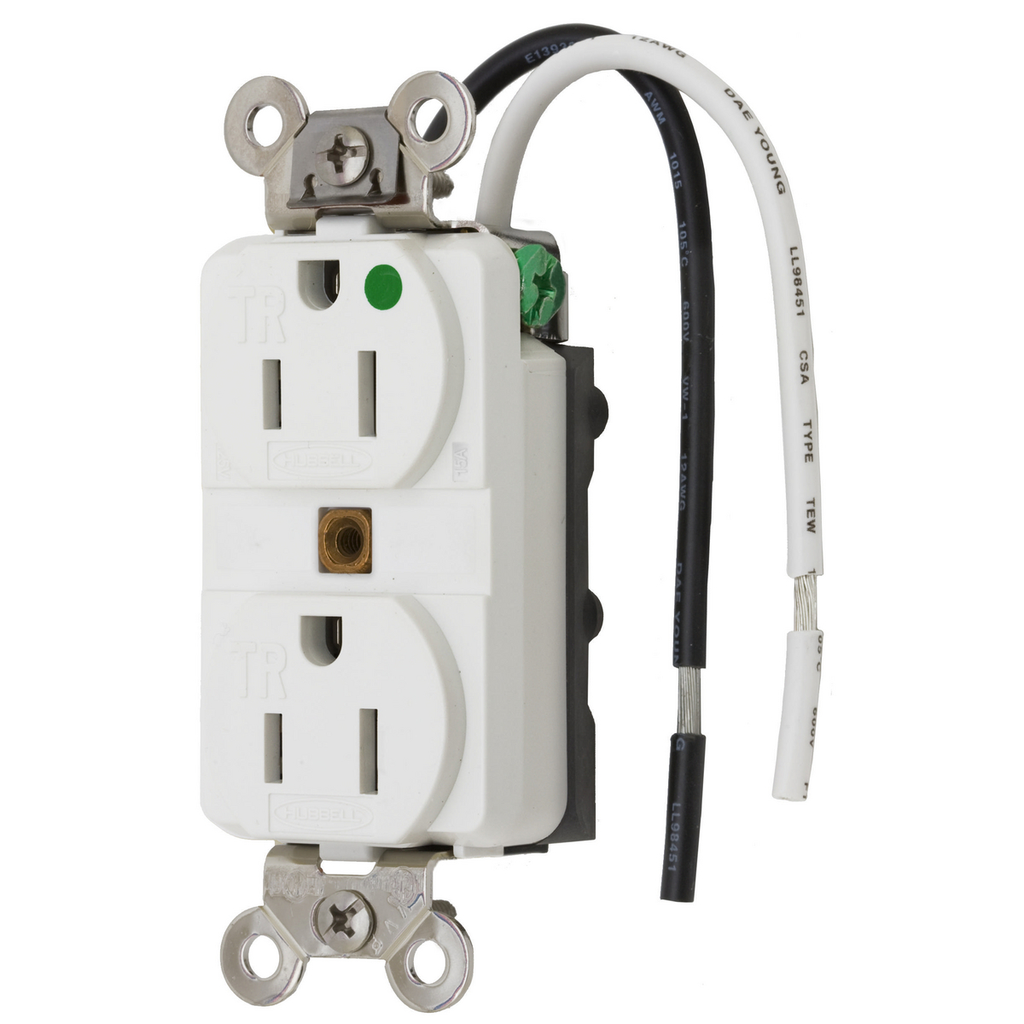

This Hubbell Wiring Device-Kellems tamper-resistant duplex receptacle is designed for extra heavy duty hospital grade applications. It is suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. The device supports 15 amperes at 125 volts with a 2-pole, 3-wire grounding configuration and is compliant with National Electrical Code requirements for pediatric locations. Its thermoplastic construction and screw mount design ensure durability and secure installation in indoor dry environments.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Current: 15 amperes
• Amperage Rating: 15 A
• Voltage: 125 V
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Horsepower Rating: 0.5 horse power
• Material: Thermoplastic
• Color: White
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Width: 2.2 in
• Product Weight: 0.5 lb
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8200SGWA

Features

• Tamper resistant design compliant with NEC® Article 517-18(c) for pediatric locations
• Extra heavy duty construction suitable for hospital grade requirements
• Back and side wired screw terminals for flexible installation
• Thermoplastic polyester face for durability and safety
• Meets UL and CSA standards for 15A 125V receptacles
• Designed for indoor dry environments unless additional protection is provided
