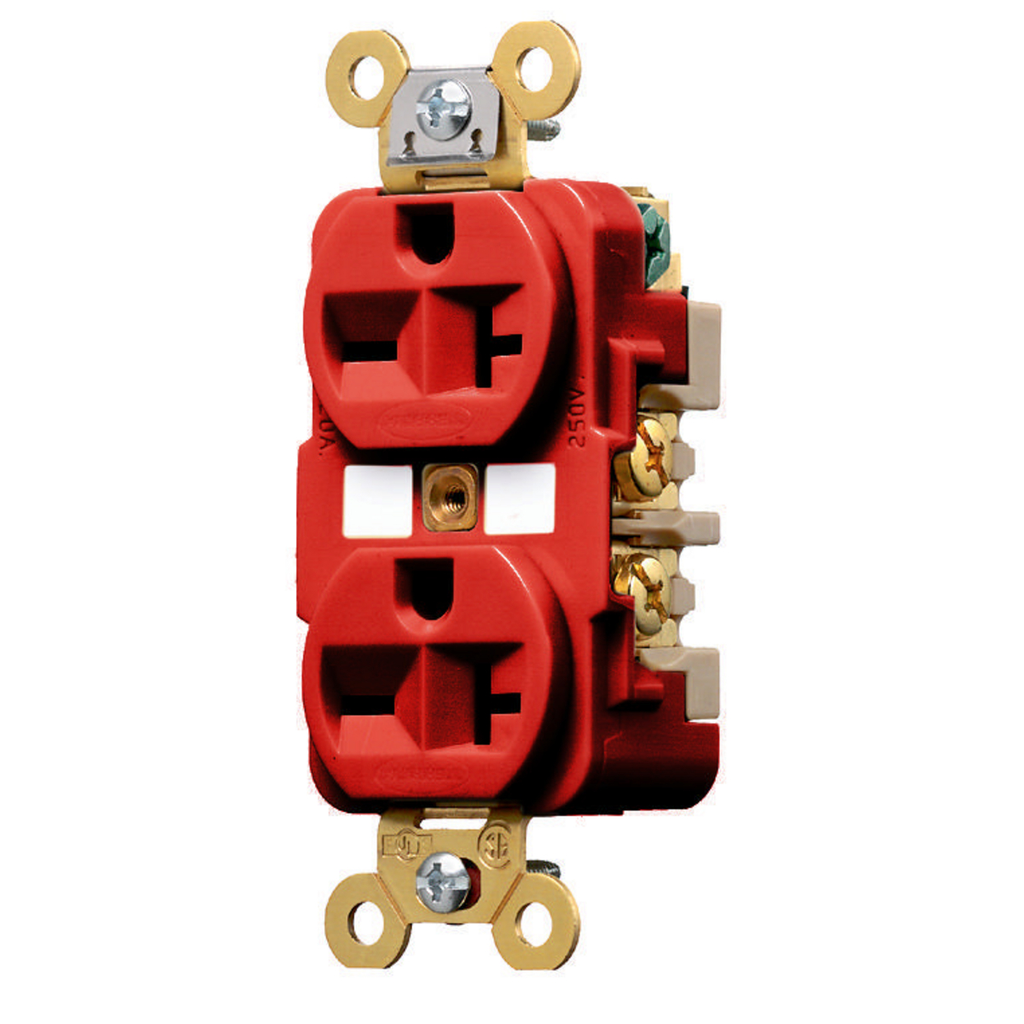

Straight Blade Devices Receptacles Duplex 20A 250V 6-20R Red

This Hubbell Wiring Device-Kellems specification grade duplex receptacle is designed for extra heavy duty electrical applications. It provides reliable 20-amp, 250-volt power distribution with a 2-pole, 3-wire grounding configuration, suitable for industrial and commercial wiring installations. Ideal for electrical distributors and lighting solutions providers requiring durable wire and cable accessories and switchgear components.

Specifications

• Amperage Rating: 20 A
• Voltage: 250 Volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 6-20R
• Horsepower Rating: 2 horse power
• Material: Thermoplastic/Composite
• Color: Red
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Width: 1.900 in
• Product Weight: 2.95 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Made in USA: Yes
• Manufacturer Part #: HBL5462R
• Country of Origin: United States

Features

• Specification Grade design ensures long-term durability and reliable performance
• Flush nylon face with multiple drive screws for secure installation
• Back and side wired terminals provide flexible wiring options
• Extra heavy duty construction suitable for demanding industrial environments
