Straight Blade Devices, Receptacles, Duplex, Specification Grade, 20A 250V, 6-20R, Brown – Electrical Distributor Lighting Solutions

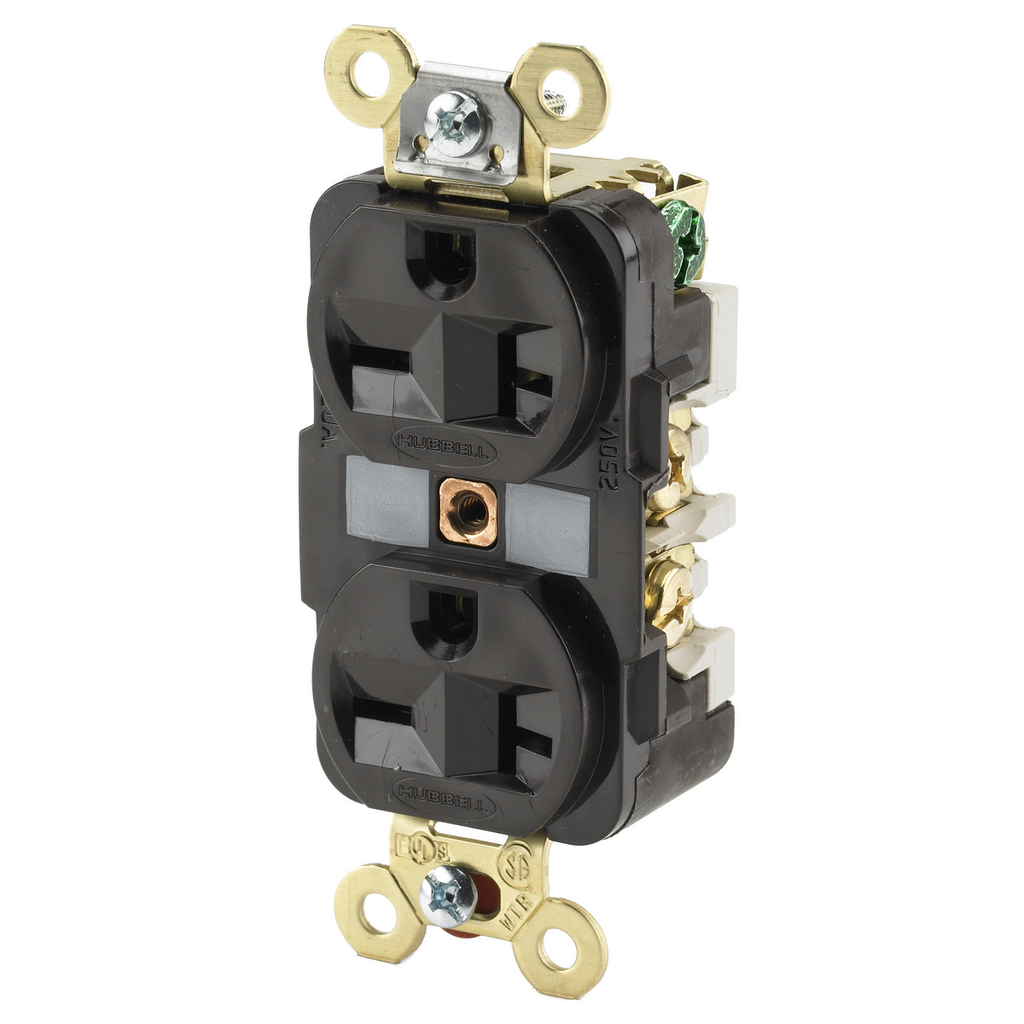

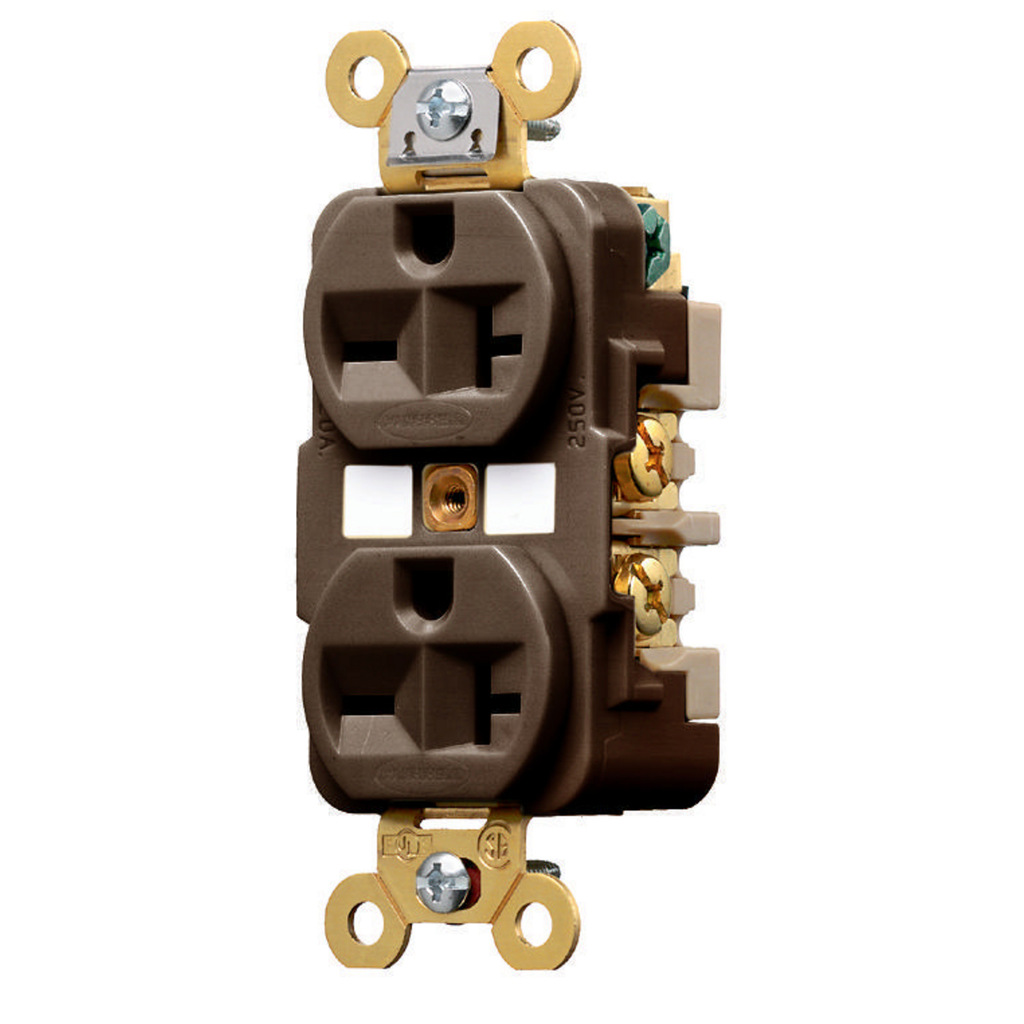

This specification grade duplex receptacle is designed for extra heavy duty applications, suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections. It features a 2-pole, 3-wire grounding configuration rated at 20 amperes and 250 volts, with a NEMA 6-20R rating. The device is constructed from durable thermoplastic/composite materials and is engineered for indoor dry environments unless additional protection is provided. It supports back and side wired screw terminal connections and is mounted via screw mount for secure installation.

Specifications

• Application: Extra Heavy Duty
• Amperage Rating: 20 A
• Current: 20 amperes
• NEMA Rating: 6-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Voltage: 250V
• Horsepower: 2 horse power
• Material: Thermoplastic/Composite
• Color: Brown
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Width: 1.8 in
• Product Weight: 0.8310 lbs
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5462

Features

• Specification grade for durability and reliability in demanding electrical distributor environments
• Back and side wired screw terminals provide flexible wiring options
• Thermoplastic/composite construction offers resistance to impact and wear
• Designed to withstand dielectric stress of at least 2,000 volts
• Suitable for use in indoor dry locations unless additional protective measures are applied
• Manufactured in the USA ensuring quality and compliance with industry standards
