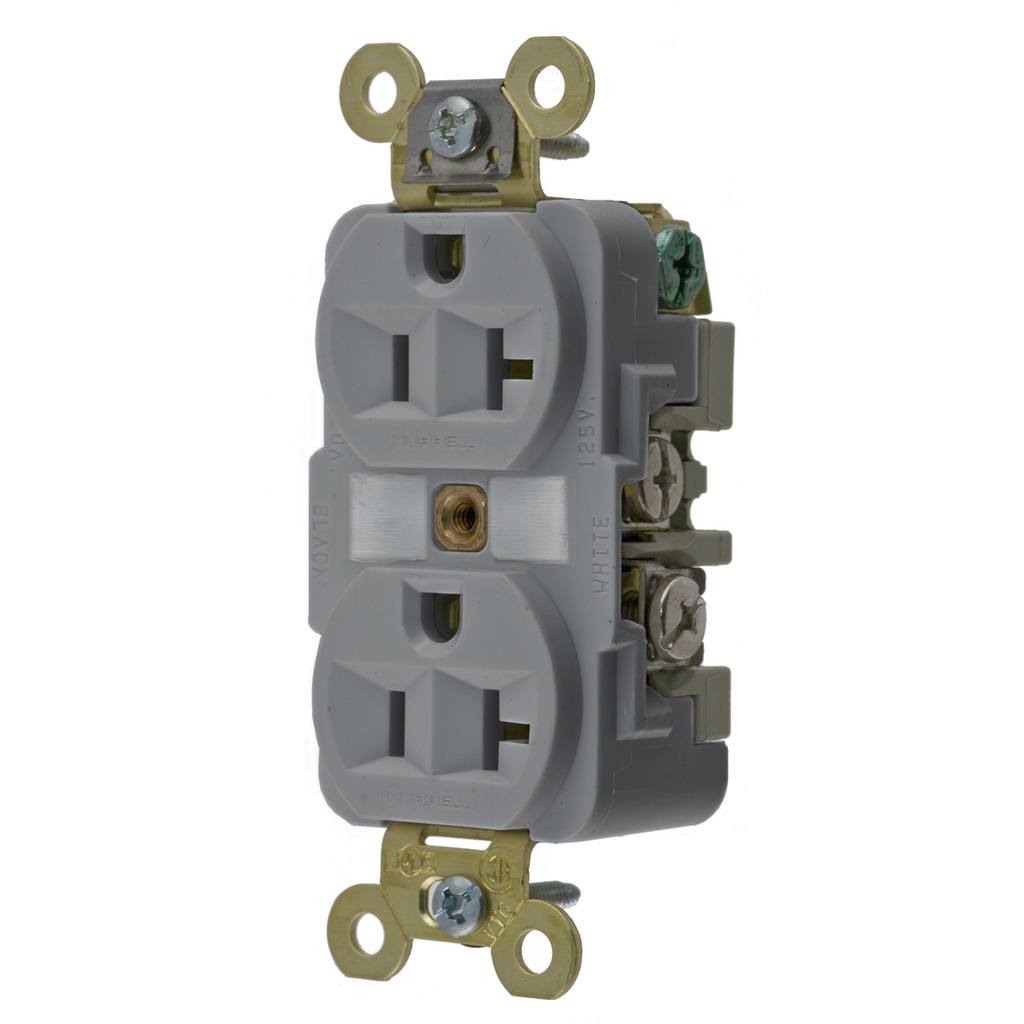

Straight Blade Devices Receptacles Duplex Industrial Grade 20A 125V 5-20R Gray

This Hubbell Wiring Device-Kellems Straight Blade Duplex Receptacle is designed for extra heavy duty specification grade applications. It provides reliable grounding and current interruption for electrical systems requiring 20 amperes at 125 volts. Suitable for indoor dry environments, this device is ideal for electrical distributors and lighting solutions requiring robust wire and cable connections and dependable switchgear components.

Specifications

• Application: Extra Heavy Duty Specification Grade
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Current: 20 amperes
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Dimensions: 3.28 in (L) x 1.65 in (W) x 1.19 in (H)
• Weight: 0.25 lb
• Color: Gray
• Material: Thermoplastic/Composite
• Mounting: Screw Mount
• Horsepower: 1 horse power
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
• Country of Origin: United States
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5362GY

Features

• Back wired ground terminal allows faster, easier installation
• One-piece brass integral ground strap
• Finder Groove Face for secure and reliable wiring
• Deep body design with circuit ID face for clear identification
• Automatic self-grounding clip made of stainless steel
• Durable construction with nickel plated brass clamping plate and brass ground contacts
• UL Listed to UL498 and CSA certified
• Compliant with NEMA WD-6 and Federal Specification W-C-596
