Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 15A 125V, 5-15R, Ivory, Single Pack - Industrial Grade Electrical Distributor

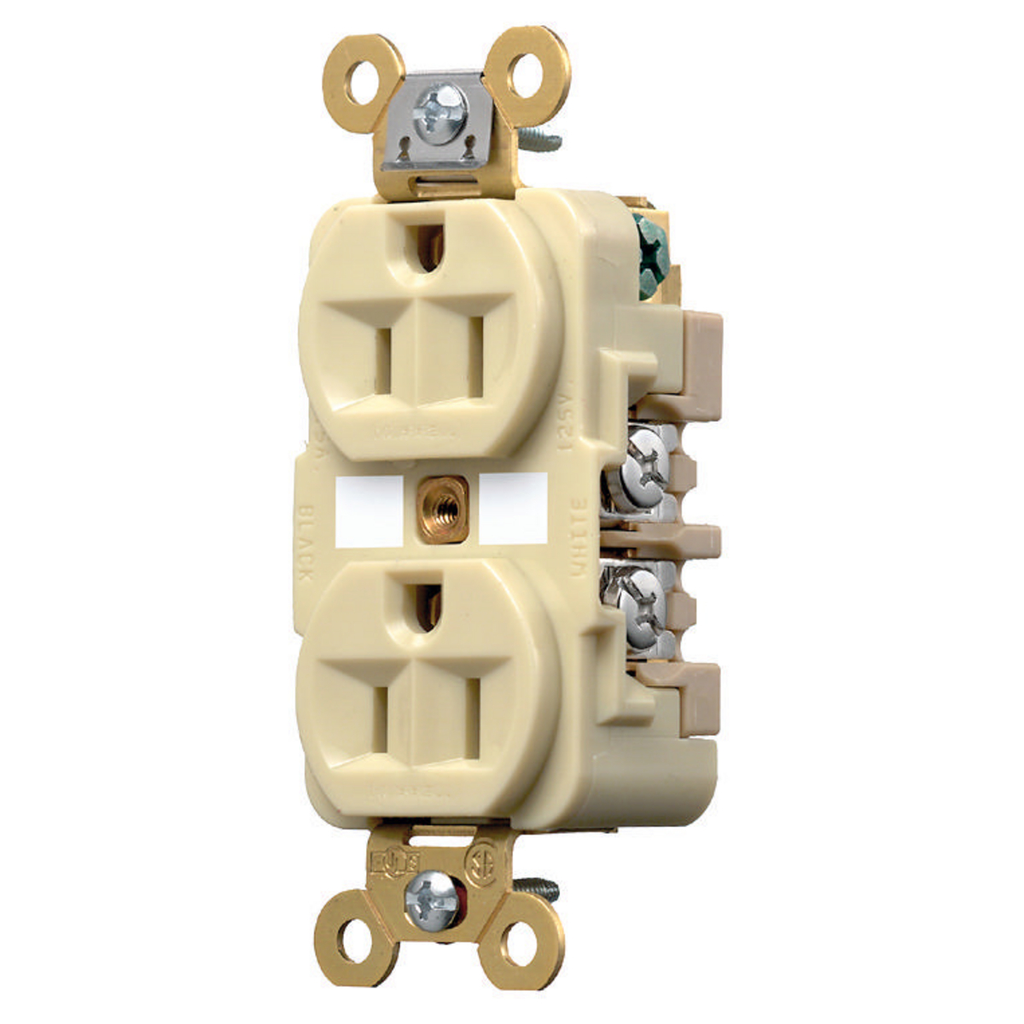

This Hubbell Wiring Device-Kellems straight blade duplex receptacle is designed for extra heavy duty specification grade applications. It is suitable for use in indoor dry environments unless protected by additional means. The device supports 15 amperes at 125 volts with a NEMA 5-15R configuration and is built for reliable grounding with 2-pole, 3-wire grounding capabilities. Ideal for electrical distributors and lighting solutions requiring durable and specification-grade wire and cable components.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5262I
• Application: Extra Heavy Duty Specification Grade
• Amperage Rating: 15 A
• Current: 15 amperes
• Voltage: 125V
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic/Composite
• Color: Ivory
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Horsepower Rating: 0.5 horse power
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Width: 1.800 in
• Product Weight: 0.8310 lbs
• Country of Origin: United States (Made in USA)

Features

• Back and side wired connection for flexible installation
• Thermoplastic/composite construction for durability and electrical safety
• Extra heavy duty industrial grade for demanding applications
• Complies with specification-grade requirements for reliable performance
• Designed for grounding with 2-pole, 3-wire configuration
• Meets NEMA 5-15R standard for receptacles
• Manufactured in the USA, ensuring quality and compliance
