Straight Blade Devices, Receptacles, Industrial Grade - Electrical Distributor Lighting Solutions

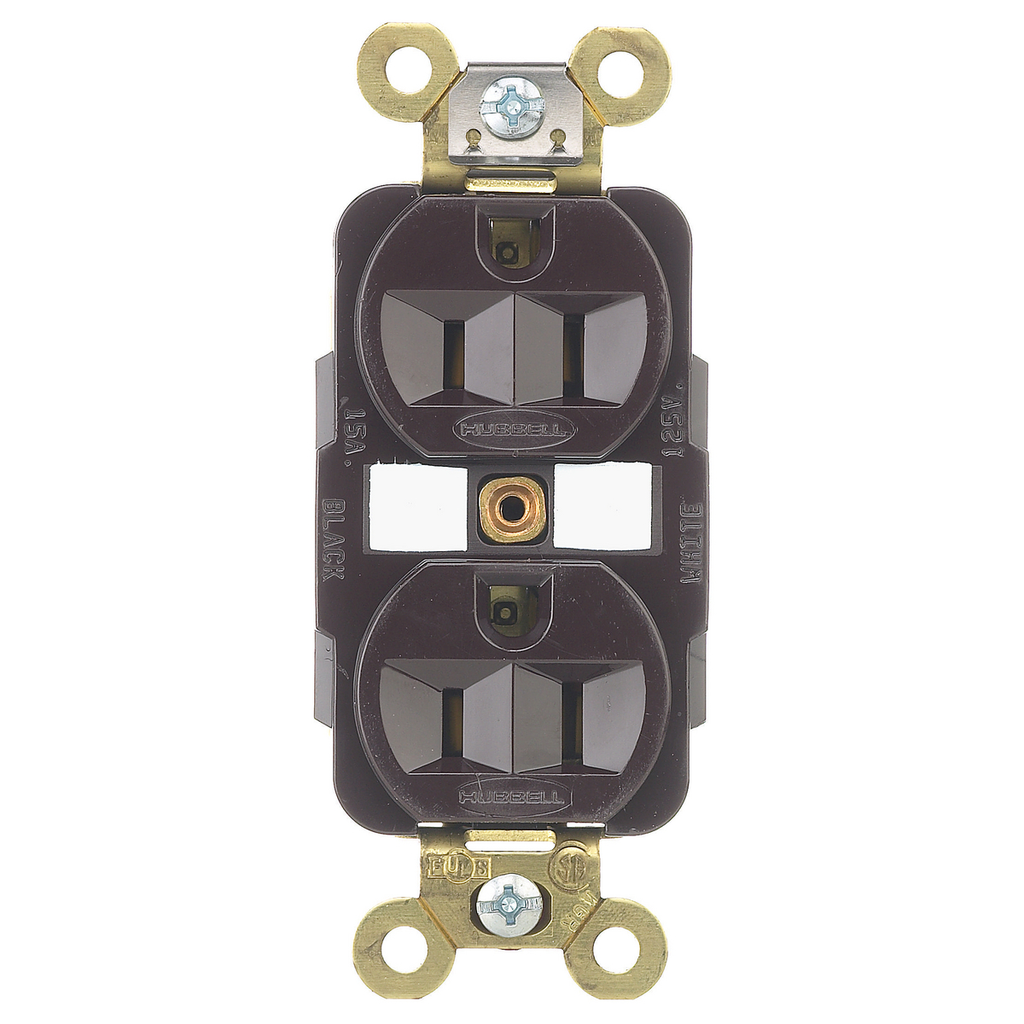

This Straight Blade Duplex Receptacle is designed for extra heavy-duty specification grade applications. It is an industrial-grade device suitable for 15A, 125V electrical systems, providing reliable grounding with a 2-pole, 3-wire configuration. The receptacle is designed for use in indoor dry environments unless additional protection is provided, making it ideal for manufacturing, office spaces, and workstations. The device features back and side wired connections and screw mounting for secure installation, supporting wiring and cable management needs of electrical distributors and switchgear suppliers.

Specifications

• Amperage Rating: 15 A
• Current: 15 amperes
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon
• Color: Brown
• Mounting: Screw Mount
• Connection: Back and Side Wired
• Horsepower: 0.5 horse power
• Product Weight: 0.2500 lbs
• Width: 1.900 in
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5262

Features

• Extra Heavy Duty Specification Grade for durable industrial use
• Back and side wired for flexible installation options
• 2-pole, 3-wire grounding configuration for safety and reliability
• Constructed with nylon for impact and heat resistance
• Screw mount design for secure and stable installation
• Complies with indoor dry environmental conditions, suitable for controlled environments
• Manufactured in the USA ensuring quality and compliance

Downloads & Links

• Catalog Page Asset Reference 1
• Wiring Device Solutions for Strategic Manufacturing Facilities
• Catalog Page Asset Reference 2
• Industrial Solutions
• Installation Manuals Asset Reference 1
• Catalog Full Asset Reference
• Installation Manuals Asset Reference 2
• Spec Sheet
• Education Application Guide
• Warranty Document Asset Reference
• HBL5262 AutoCAD Drawing
• Sales Drawing Asset Reference
• Catalog Page Asset Reference 3
