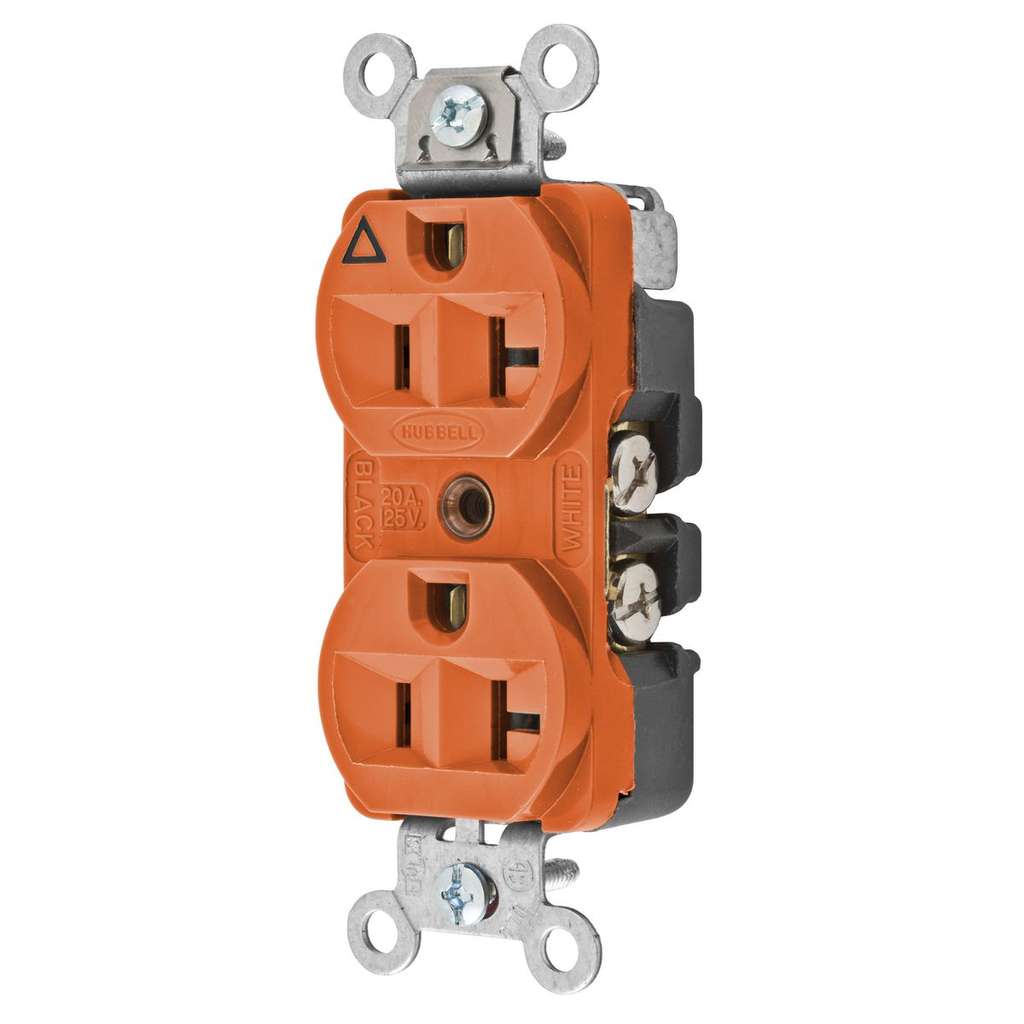

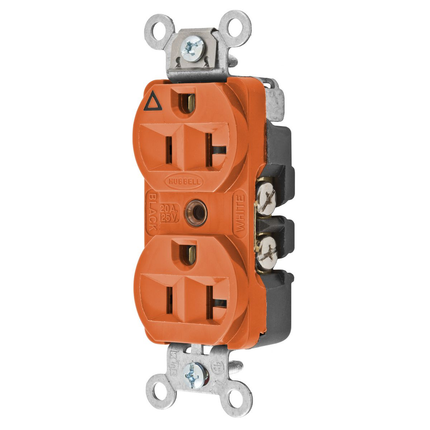

Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 20A 125V, 5-20R, Orange - Isolated Ground

This Hubbell-Pro Heavy Duty duplex receptacle is designed for commercial and industrial electrical applications requiring reliable and durable wiring devices. It features a 2-pole, 3-wire grounding configuration rated at 20 amperes and 125 volts. The receptacle is ideal for use by electrical distributors and switchgear suppliers looking for specification-grade products that ensure safety and performance in lighting solutions, wire and cable installations, and general power distribution.

Specifications

• Application: Hubbell-Pro Heavy Duty
• Amperage: 20 amperes
• Voltage Rating: 125 volts
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Nylon
• Color: Orange
• Width: 1.900 in
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Horsepower Rating: 1 horse power
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.2200 lbs
• Made in USA: Yes
• Country of Origin: United States
• Manufacturer Part #: CR5352IG
• Manufacturer Name: Hubbell Wiring Device-Kellems

Features

• Isolated Ground design for enhanced electrical noise reduction
• Smooth nylon face for durability and resistance to wear
• Back and side wired screw terminals for flexible installation
• Screw mount for secure attachment
• Specification grade receptacle suitable for heavy-duty applications
• Complies with UL and CSA standards for safety and performance
