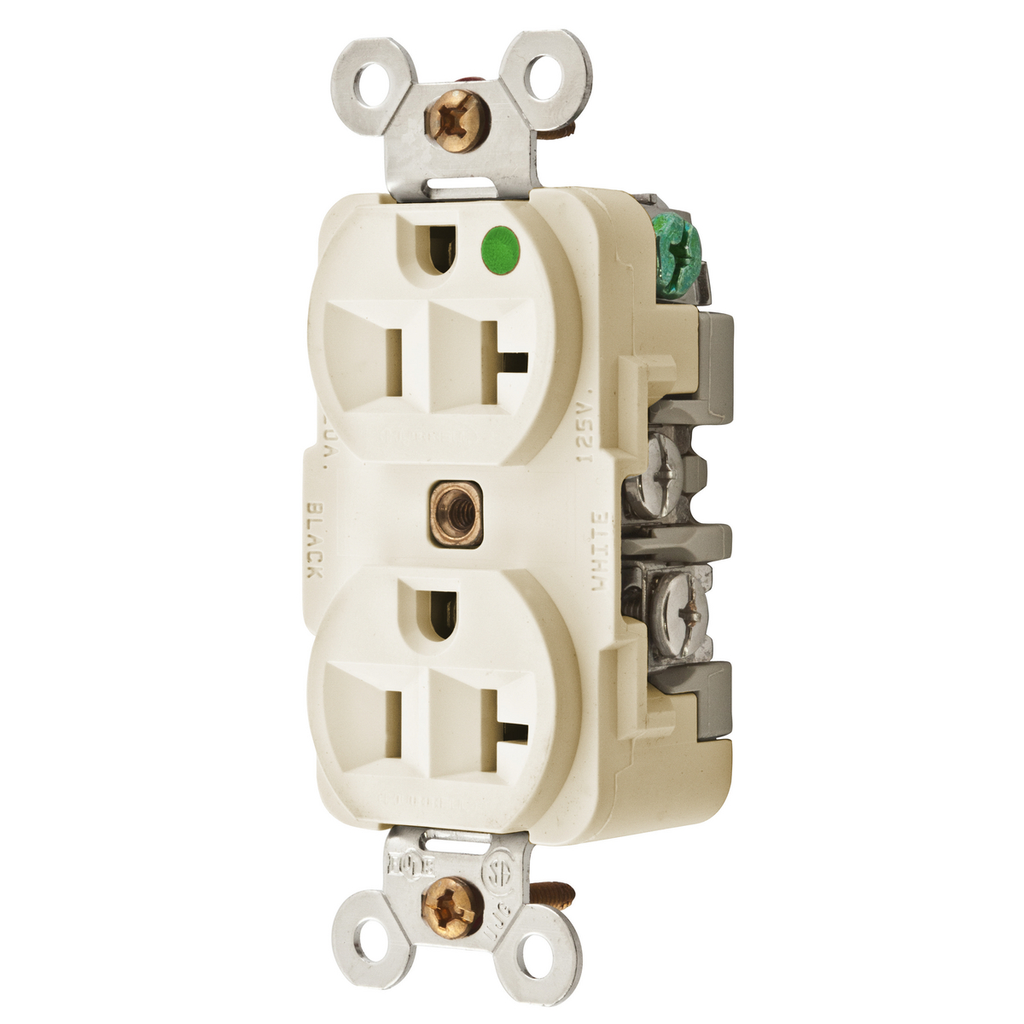

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 20A 125V – Hospital Grade Electrical Receptacle

This hospital grade duplex receptacle from Hubbell Wiring Device-Kellems is designed for medical and healthcare environments, specifically MRI labs. It provides reliable 20 amp, 125 volt electrical connection with 2-pole, 3-wire grounding configuration. Suitable for use by electrical distributors and switchgear suppliers offering specialized lighting and electrical solutions in hospital-grade wire and cable applications.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8300IMRI
• Application: Hospital Grade
• Current Rating: 20 amperes
• Voltage: 125 volts
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Material: Thermoplastic (PBT face and base)
• Color: Ivory
• Mounting: Screw Mount
• Connection Type: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Horsepower Rating: 1 horse power
• Width: 1.9 in
• Product Weight: 0.2 lb
• Country of Origin: United States
• UL Listed to UL498, CSA Certified
• Flammability Rating: UL 94V-2
• Operating Temperature Range: -40°C to 75°C continuous (without impact)

Features

• All non-ferrous construction suitable for MRI lab environments
• One-piece nickel-plated brass integral ground strap for reliable grounding
• Unique bypass contact design for enhanced performance
• I.D. marking surface facilitates quick circuit identification
• Certified for current interrupting at full rated current
• Terminals accommodate #12 to #10 AWG stranded or solid copper wire only
• Terminals identified per UL 498 and CSA standards
• Back and side wired terminals provide wiring flexibility
• Made in USA
