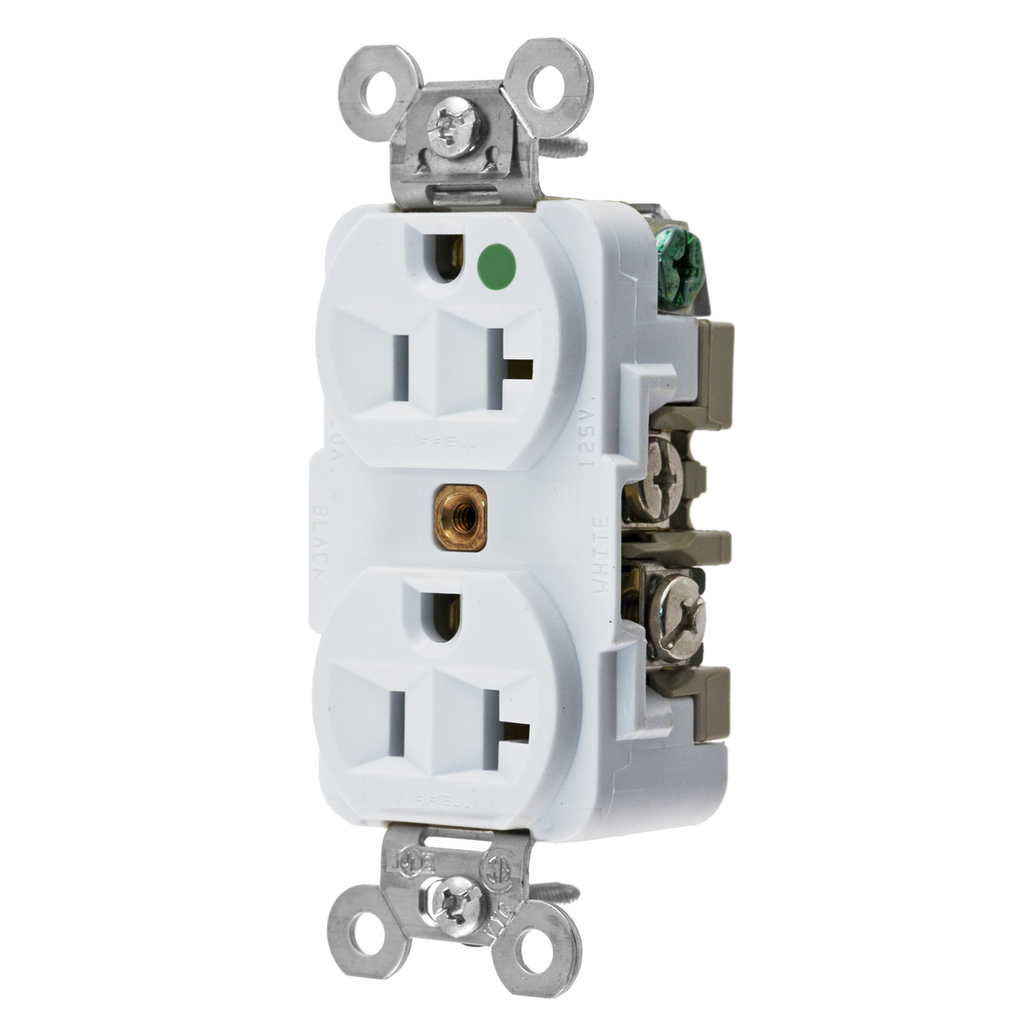

This Hubbell Straight Blade Device is an extra heavy duty hospital grade duplex receptacle designed for critical healthcare applications. It features a 2-pole, 3-wire grounding configuration with a 20 ampere, 125 volt rating and NEMA 5-20R specification. Manufactured in the USA by Hubbell Wiring Device-Kellems, this white thermoplastic receptacle is suitable for indoor dry environments, typically found in hospitals, patient care facilities, and other healthcare settings. Its screw mount design with back and side wired screw terminals ensures secure, reliable electrical connections for demanding applications.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 125 V
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Material: Thermoplastic
• Color: White
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Horsepower Rating: 1 horse power
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Dimensions: Width - 1.900 in
• Product Weight: 0.25 lbs
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8300W
• Country of Origin: United States

Features

• Extra heavy duty hospital grade construction designed to meet and exceed UL requirements for healthcare environments
• Exclusive nickel-plated bypass contact design for increased contact pressure and lower operating temperature
• Four-point grounding system ensures redundant grounding for low resistance ground continuity in high abuse areas
• Impact resistant deep face design prevents breakage in demanding applications
• Back and side wired screw terminals provide secure and reliable electrical connections
• Thermoplastic material offers durability and resistance to impact
• Compliant with stringent hospital grade standards for safety and reliability in critical care settings
