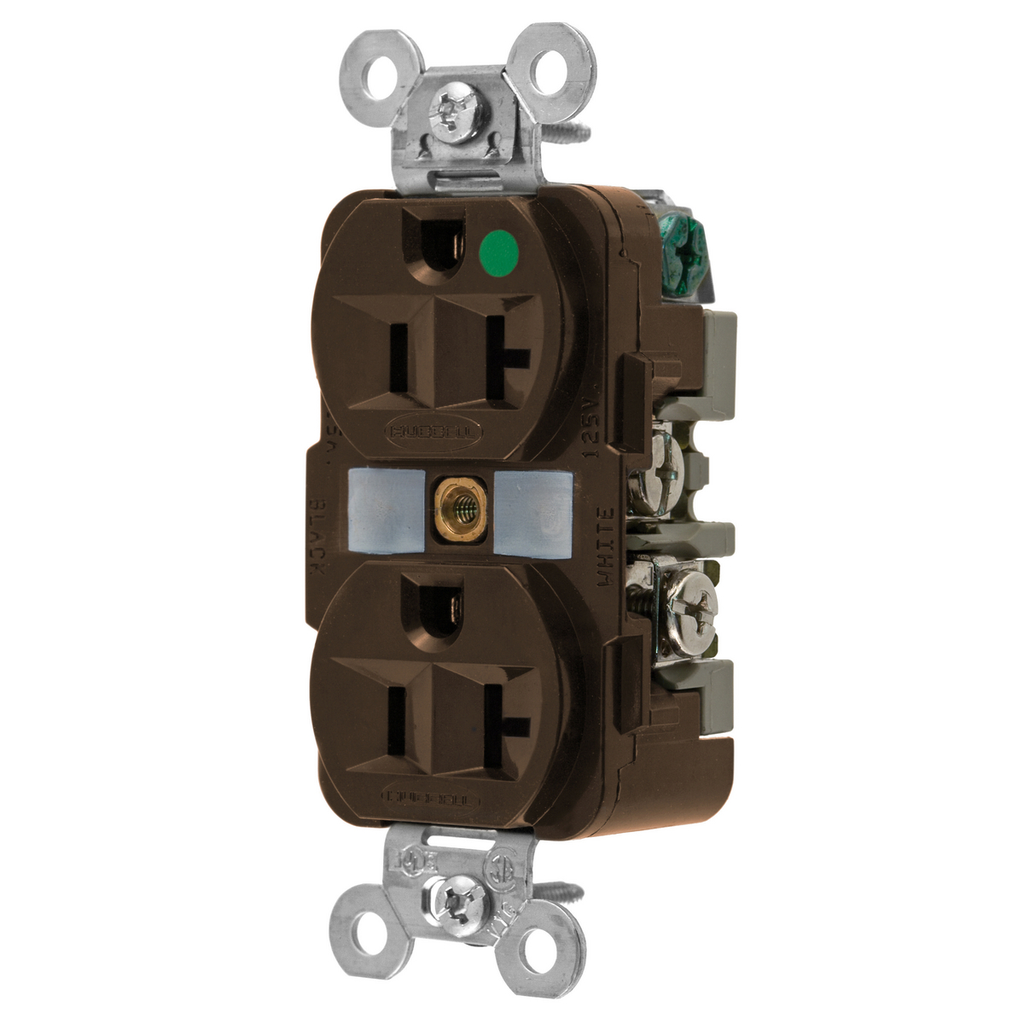

This Hubbell Wiring Device-Kellems extra heavy duty hospital grade duplex receptacle is designed for reliable electrical connections in demanding healthcare environments. It features a 2-pole, 3-wire grounding configuration rated for 20 amperes at 125 volts with a NEMA 5-20R rating. Suitable for indoor dry environments unless otherwise protected, this device is ideal for electrical distributors, lighting solutions, and wire and cable applications requiring hospital-grade switchgear components.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage: 125 volts
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Horsepower: 1 horse power
• Material: Thermoplastic
• Color: Brown
• Width: 1.790 in
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.2500 lbs
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: HBL8300
• Manufacturer Name: Hubbell Wiring Device-Kellems

Features

• Hospital grade receptacle designed for extra heavy duty use
• Back and side wired screw terminals for flexible installation
• Thermoplastic construction for durability and safety
• Complies with hospital-grade electrical standards for healthcare applications
• Flush mount design suitable for standard electrical boxes
• Brown color for easy identification in wiring applications
• Meets UL and CSA certifications for safety and performance
