Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 15A 125V

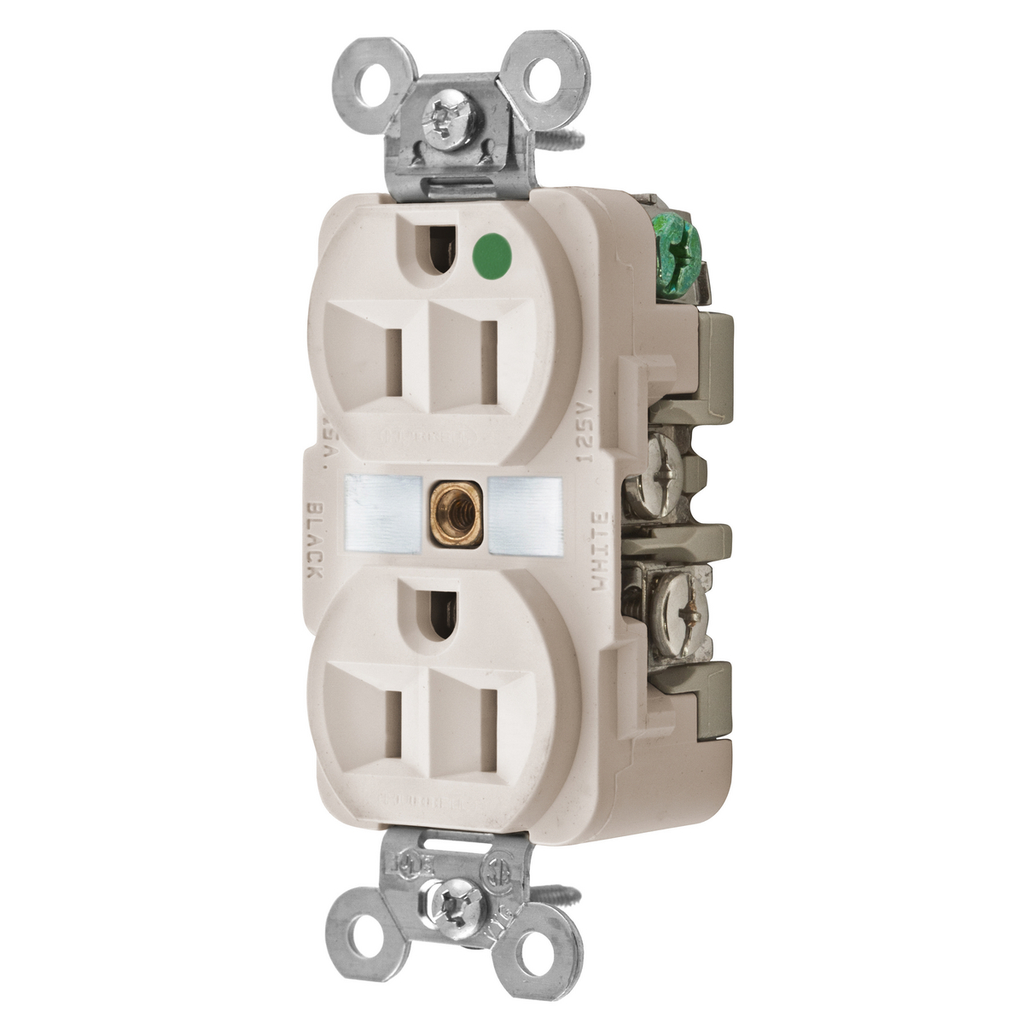

This Hubbell Wiring Device-Kellems hospital grade duplex receptacle provides reliable electrical connections for healthcare facilities requiring extra heavy duty performance. Designed for indoor dry environments, it supports 15 amperes at 125 volts with a NEMA 5-15R configuration. Suitable for use by electrical distributors and switchgear suppliers needing durable wire and cable terminations in critical lighting and power solutions.

Specifications

• Application: Extra Heavy Duty Hospital Grade
• Current: 15 amperes
• Amperage Rating: 15 A
• NEMA Rating: 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Horsepower: 0.5 horse power
• Material: Thermoplastic
• Color: Almond
• Width: 1.790 in
• Mounting: Screw Mount
• Connection: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Product Weight: 0.2500 lbs
• Country of Origin: Puerto Rico
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL8200LA

Features

• Hospital grade for extra heavy duty use in healthcare settings
• Straight blade duplex receptacle with 2-pole, 3-wire grounding
• Back and side wired screw terminals for flexible installation
• Thermoplastic construction for durability and safety
• Complies with UL and CSA standards for electrical safety
• Designed to withstand 2,000 volts dielectric strength
• Light almond color for aesthetic integration in hospital environments
