Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack, Pre-Wired 8" Stranded Leads
SKU: #138607
Part: #CR20GRYP2
UPC: 783585146256
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack, Pre-Wired 8" Stranded Leads
SKU: #138607
Part: #CR20GRYP2
UPC: 783585146256
Description

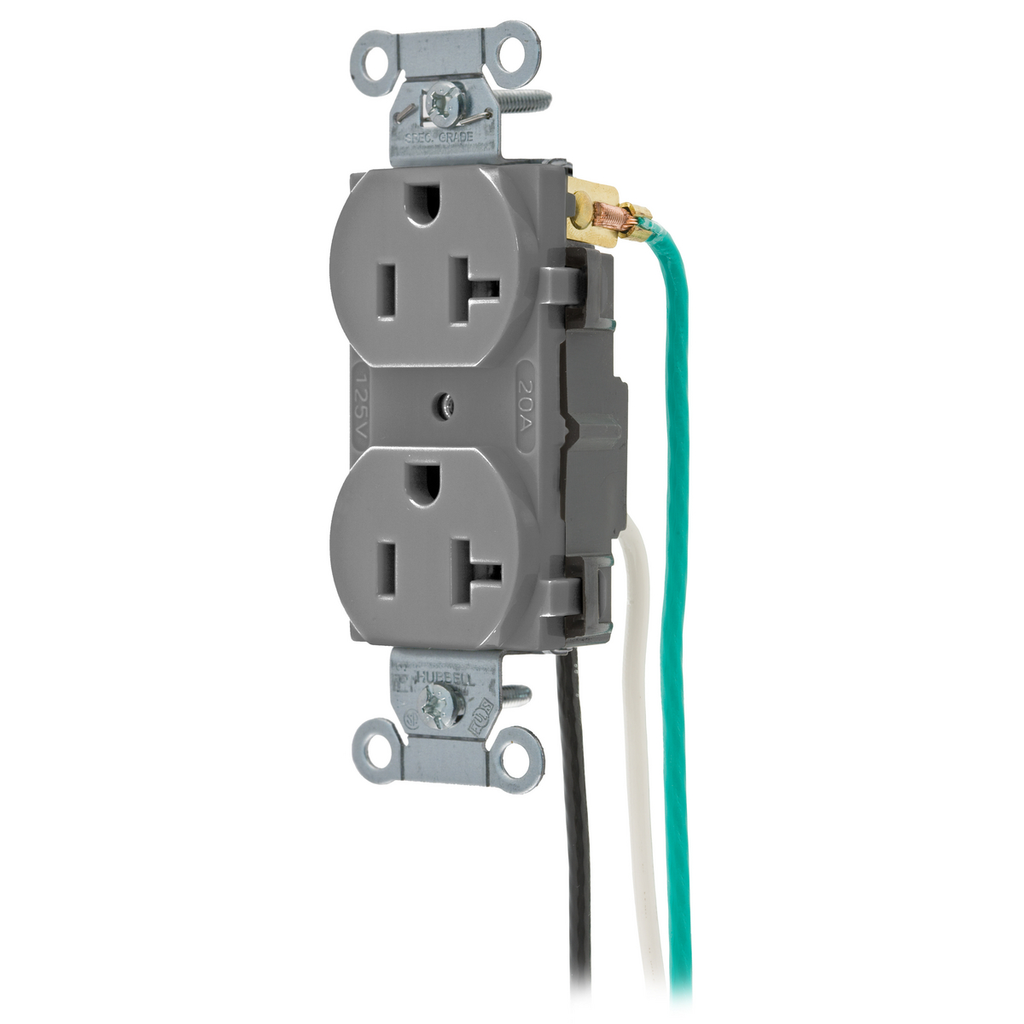

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 5-20R, Gray, Pre-Wired 8" Stranded Leads
This commercial specification grade duplex receptacle is designed for reliable electrical connections in indoor dry environments. It features a 2-pole, 3-wire grounding configuration rated for 20 amperes at 125 volts, suitable for use in wiring and lighting solutions provided by electrical distributors and switchgear suppliers. The device comes pre-wired with 8-inch stranded wire leads, facilitating quick and secure installation.
Specifications
- Application: Commercial Specification Grade
- Amperage Rating: 20 A
- Voltage: 125 V
- NEMA Rating: 5-20R
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- Current: 20 amperes
- Horsepower: 1 horse power
- Material: Nylon
- Color: Gray
- Width: 1.5 in
- Mounting: Screw Mount
- Connection: Stranded Wire Leads
- Dielectric Strength: Withstands 2,000V minimum
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Product Weight: 0.2 lbs
- Country of Origin: China
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: CR20GRYP2
Features
- Pre-wired with 8" stranded wire leads for efficient installation
- Durable nylon construction with gray finish
- Meets commercial specification grade standards
- Self-grounding design with 2-pole, 3-wire grounding configuration
- Rated for 20A, 125V with 5-20R NEMA configuration
- Mounts securely with screw mount system
- Designed for indoor dry environments unless additional protection is applied
- Withstands dielectric voltage of 2,000V minimum for safety
