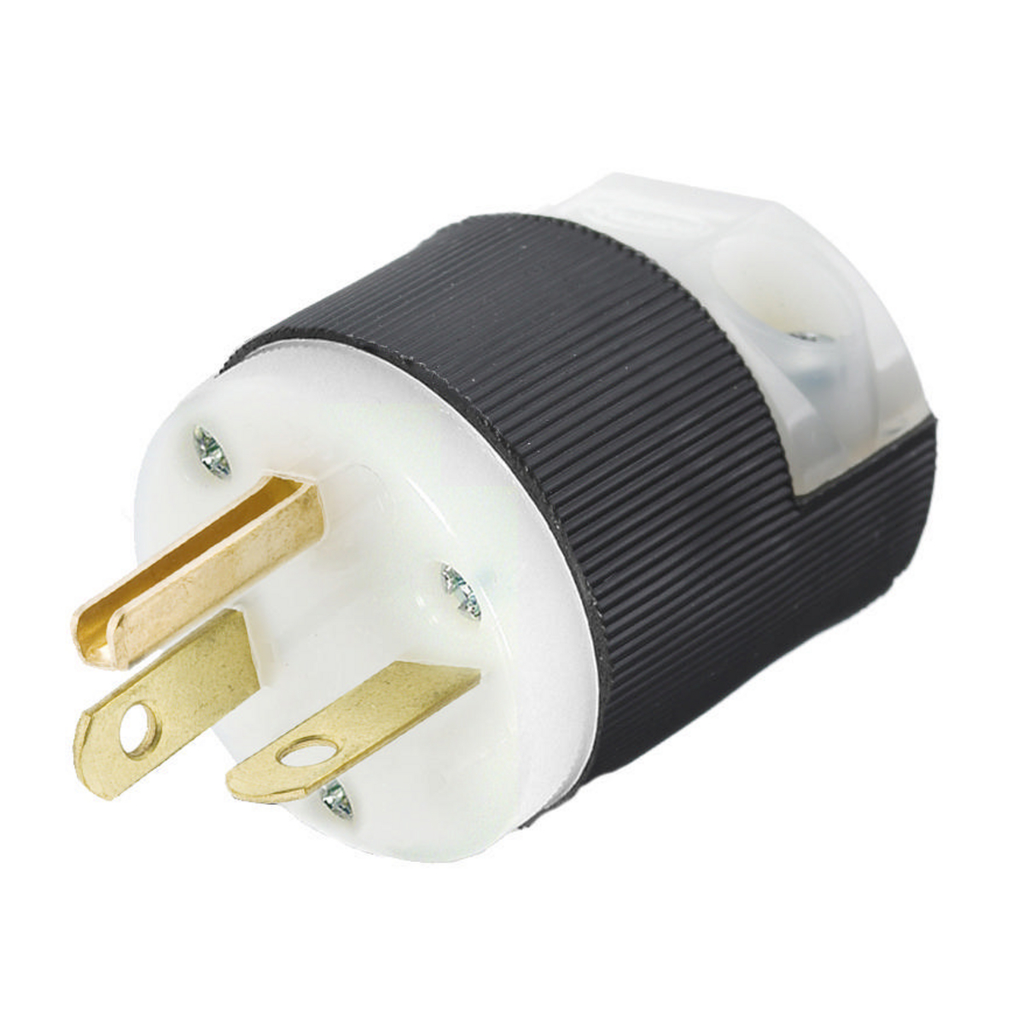

Straight Blade Devices Male Plug 20A 250V Industrial Electrical Connector

This heavy-duty straight blade male plug is designed for industrial and commercial applications, suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable connections. It features a 2-pole, 3-wire grounding configuration rated for 20 amperes and 250 volts, making it compatible with NEMA 6-20P receptacles. The device is cord mounted and constructed from impact- and chemical-resistant composite materials, ensuring durability in demanding environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5466C
• Application: Industrial/Commercial
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage Rating: 250 V
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 6-20P
• Material: Composite
• Color: Black
• Mounting: Cord Mounted
• Cord Type: All Portable
• Connection: Terminal Screws
• Horsepower: 2 horse power
• Width: 1.900 in
• Product Weight: 0.1500 lb
• Country of Origin: United States
• Made in USA: Yes

Features

• Insulgrip heavy duty design provides secure grip and durability
• Ribbed nylon housing offers impact and chemical resistance for harsh environments
• 2-pole, 3-wire grounding configuration for safe and reliable electrical connections
• Terminal screws ensure secure wiring connections
• Suitable for industrial and commercial grade applications
