Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 20A 250V, 2-Pole 3-Wire Grounding, 6-20P, Black and White, Single Pack
SKU: #330633
Part: #BRY5466NP
UPC: 781786005891
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 20A 250V, 2-Pole 3-Wire Grounding, 6-20P, Black and White, Single Pack
SKU: #330633
Part: #BRY5466NP
UPC: 781786005891
Description
Straight Blade Devices Male Plug Heavy Duty Industrial Grade 20A 250V

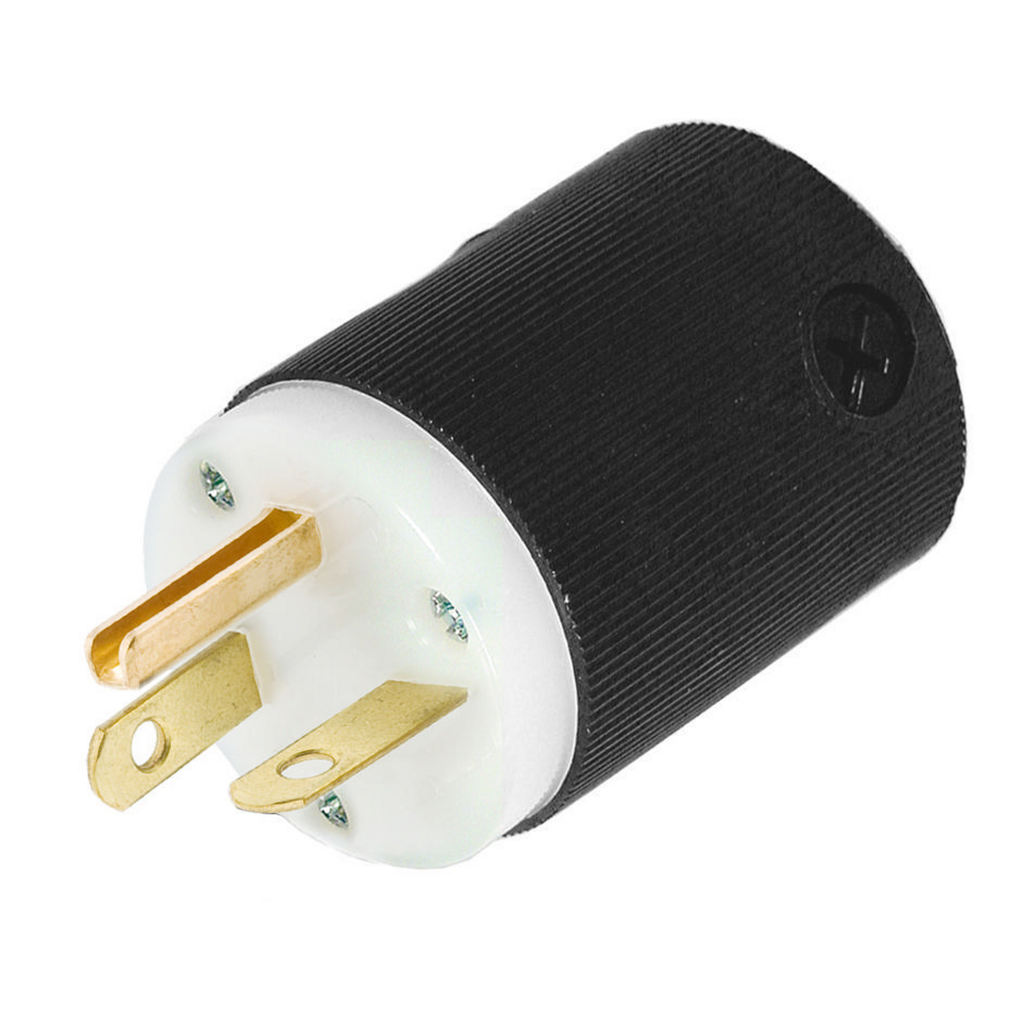

This Bryant Tech-Spec Triple Gripper straight blade male plug is designed for extra heavy duty industrial and commercial applications. It supports 20 amperes at 250 volts with a 2-pole, 3-wire grounding configuration, suitable for single-phase electrical systems. The plug is intended for use in indoor dry environments unless additional protection is applied. It is compatible with all portable cord types and wire sizes ranging from #14 AWG to #12 AWG, making it suitable for demanding wire and cable installations by electrical distributors and switchgear suppliers.
Specifications
- Application: Extra Heavy Duty Industrial Grade
- Current Rating: 20 A
- Voltage Rating: 250 V
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire
- NEMA Rating: 6-20P
- Cord Type: All Portable
- Material: Composite
- Color: Black and White
- Dimensions: 2.18 in (L) x 1.52 in (W) x 1.38 in (H)
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Connectivity: Screw Terminals
- Weight: 0.15 lb.
- EU RoHS Compliant
- UPC: 781786005891
Features
- Heavy duty, industrial/commercial grade construction
- Tech-Spec Triple-Gripper® internal cord clamp centers and secures the cord
- Tough, impact and chemical resistant composite housing
- Combination Phillips/slotted captive terminal screws pre-backed out for easy wiring
- Thermoplastic elastomer dust seal prevents moisture and contaminants from entering wiring chamber
- Double wall construction for added durability
- Transparent terminal cover with see-through window and teardrop wiring pockets for ease of wire insertion
- Wide-rib, non-slip hand grip for secure handling
- Industrial black matte finish
- UL Listed, CSA Certified, meets Federal Specification WC 596, NOM, and CE requirements
- Accepts cord diameters from 0.300" to 0.655" without cutting, inserts, or adapters
