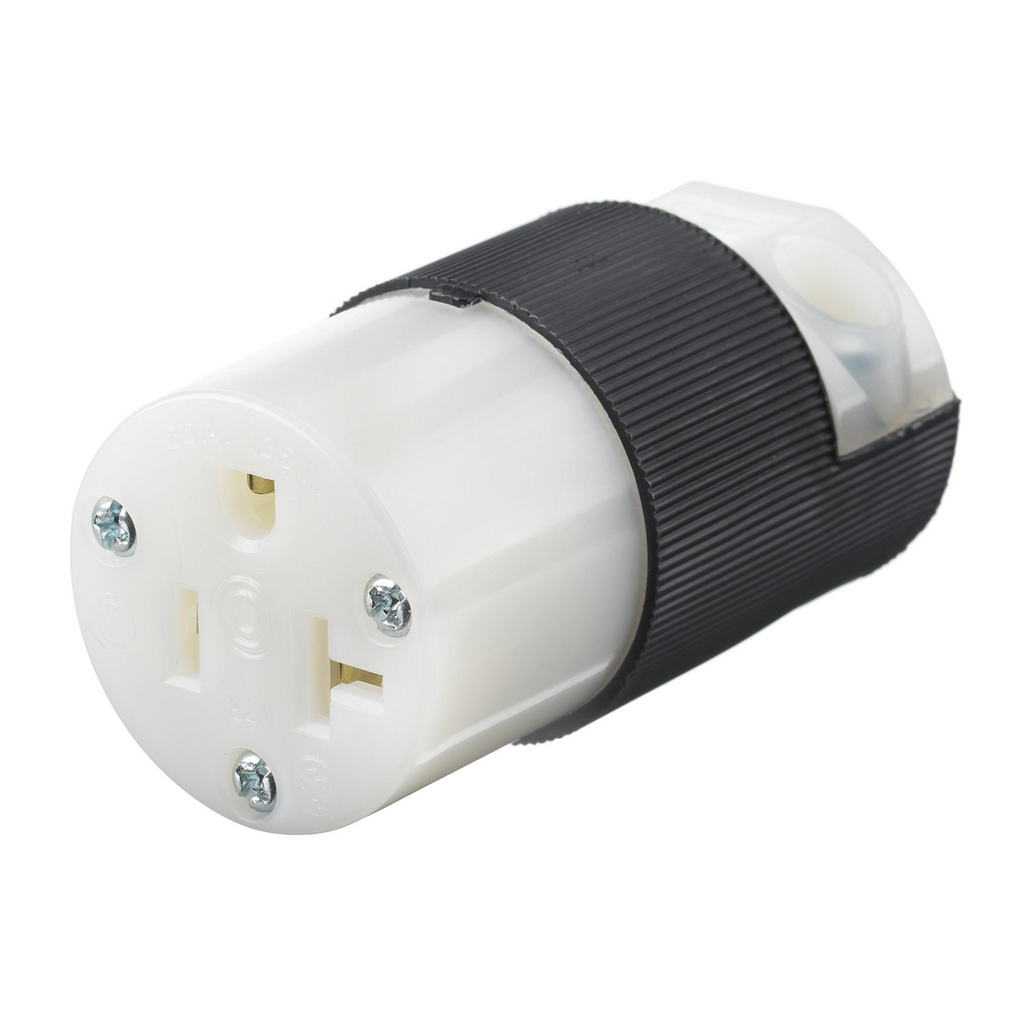

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack
SKU: #144539
Part: #HBL5369C
UPC: 783585174259
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack
SKU: #144539
Part: #HBL5369C
UPC: 783585174259
Next day delivery
Description
Straight Blade Devices Female Connector Body Insulgrip Heavy Duty 20A 125V
This Straight Blade Devices Female Connector Body by Hubbell Wiring Device-Kellems is designed for industrial and commercial grade electrical applications. It provides a reliable connection solution for wiring systems requiring a 2-pole, 3-wire grounding configuration with a 20 ampere, 125 volt rating. Suitable for use in indoor dry environments unless additional protection is applied, it is ideal for electrical distributors and lighting solutions requiring durable wire and cable connectors.
Specifications
- Application: Industrial/Commercial Grade
- Current Rating: 20 A
- Voltage Rating: 125 VAC
- Number of Poles: 2-Pole
- Number of Wires: 3
- Conductor Range: #18 AWG to #10 AWG
- Mounting: Cord Mounted
- Connection: Screw Terminals
- Material: Polycarbonate
- Color: Black, White
- Dimensions: 2.78 in (L) x 1.41 in (W) x 1.53 in (H)
- Weight: 0.15 lb
- Horsepower Rating: 1 HP
- Insulation: Insulated Body
- NEMA Rating: 5-20R
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- Country of Origin: United States
- Manufacturer: Hubbell Wiring Device-Kellems
- UPC: 783585174259
Features
- Individual wiring terminals completely enclosed for safety
- Powerful, offsetting cord grips clamp on individual conductors for secure connection
- Fast lead assembly screws enable efficient installation
- Beveled housing design prevents snagging during use
- Certified for current interrupting at full rated current
- Withstands dielectric voltage of 2,000V minimum
- UL 94 HB or better flammability rating
- Operating temperature range from -40°C to 75°C continuous without impact
- CSA Certified to C22.2 No. 42 File 280 and UL Listed to UL498 File E1706
