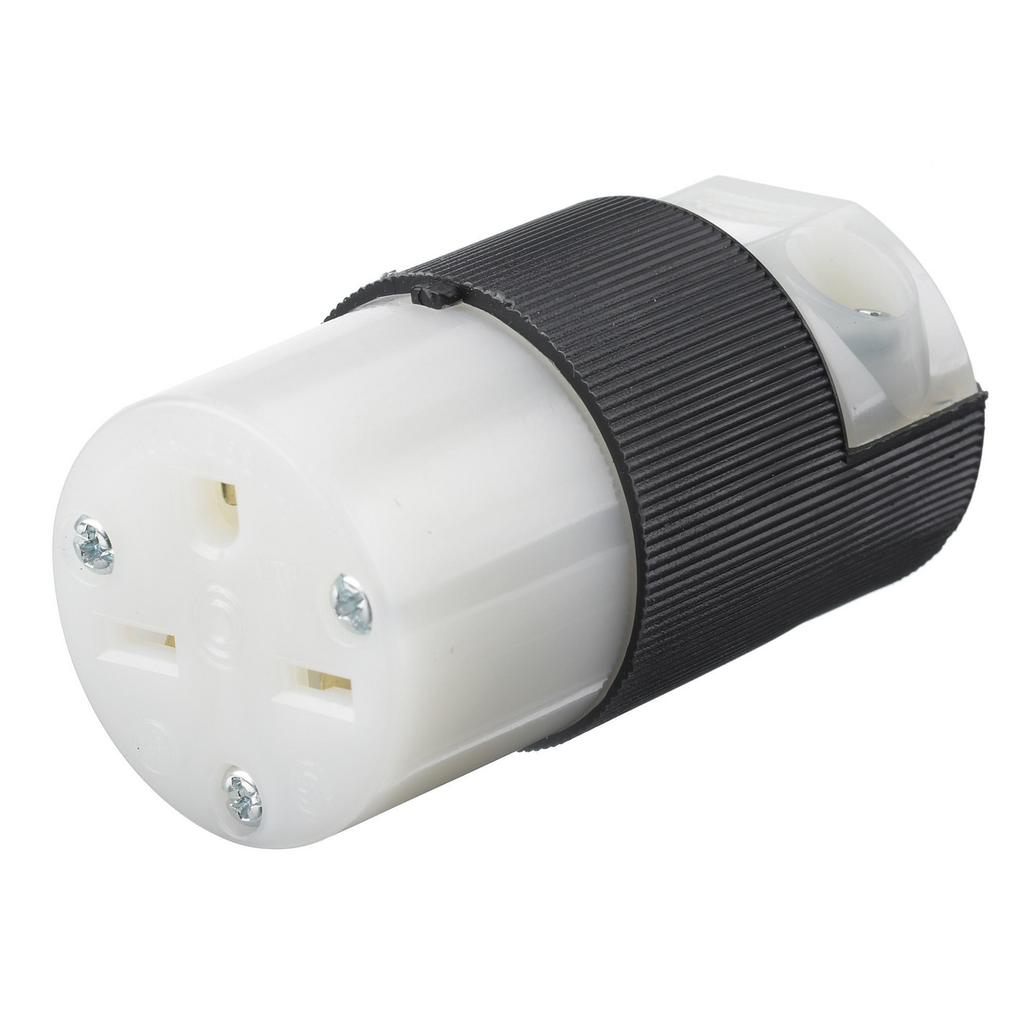

Straight Blade Devices Female Connector Body - Industrial Electrical Connector

This Straight Blade Devices Female Connector Body is designed for industrial and commercial electrical applications, providing a reliable connection for wire and cable systems. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, heavy-duty connectors with grounding capabilities. This connector supports 15 amperes at 250 volts and features a 2-pole, 3-wire grounding configuration for safe and efficient electrical distribution.

Specifications

• Application: Industrial/Commercial
• Amperage Rating: 15 A
• Current: 15 amperes
• NEMA Rating: 6-15R
• Number of Poles: 2-Pole
• Number of Wires: 3
• Number of Conductors: 3-Wire Grounding
• Material: Nylon
• Color: Black and White
• Mounting: Cord Mounted
• Connection: Screw Terminals
• Insulation: Insulated Body
• Conductor Range: #14 AWG to #12 AWG
• Width: 1.9 in
• Product Weight: 0.1500 lbs
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL5669C
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means

Features

• Heavy-duty Insulgrip® design provides impact and chemical resistance for industrial environments
• Straight blade configuration for secure and reliable connections
• Female connector body designed for easy cord mounting
• Durable nylon construction with insulated body enhances safety and longevity
• Screw terminal connections facilitate secure wiring installation
• Grounding capability with 3-wire grounding design ensures compliance with electrical safety standards
