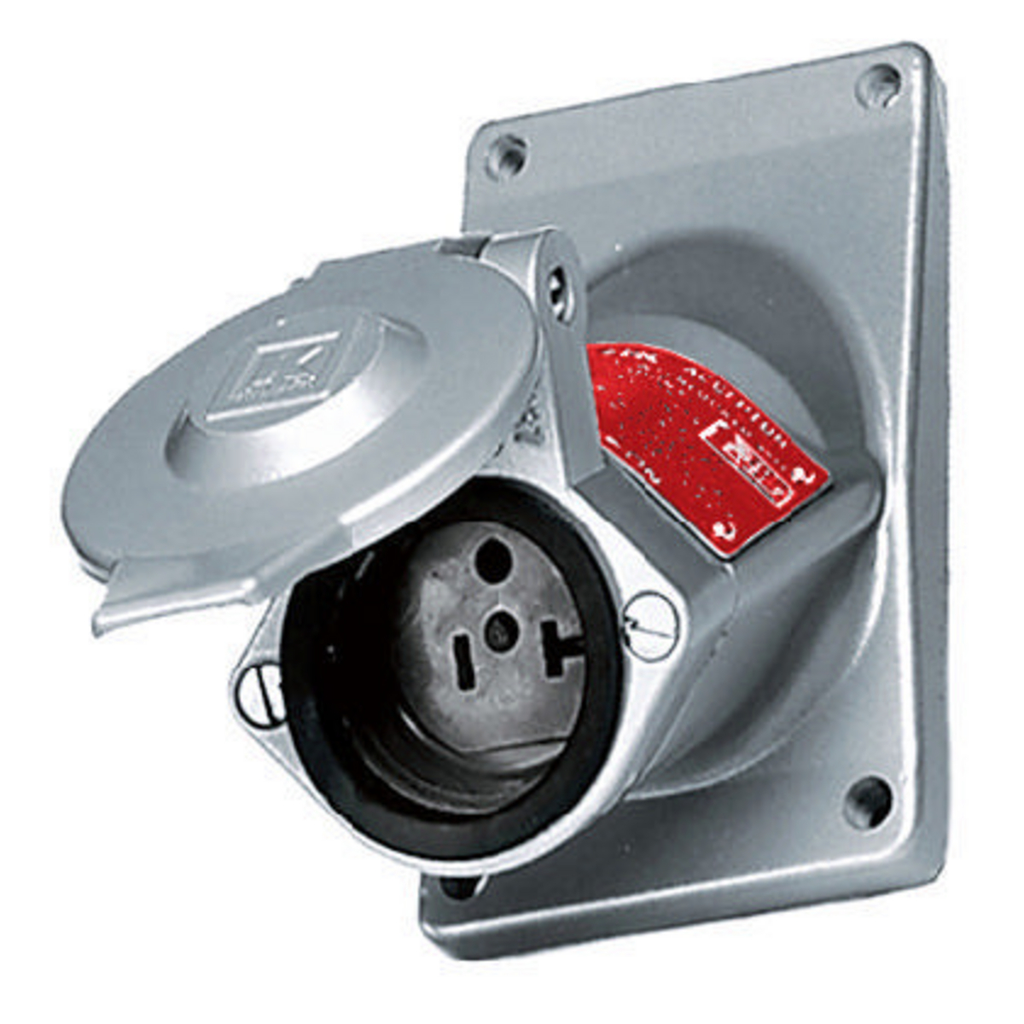

Straight Blade Devices Explosion Proof Receptacle with Adapter 20A 125V

This explosion-proof straight blade receptacle with adapter is designed for hazardous and wet environments, suitable for applications such as petroleum refineries, chemical plants, grain elevators, and indoor or outdoor locations. Manufactured by Hubbell Wiring Device-Kellems, it supports heavy-duty electrical distribution needs, making it an essential component for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers operating in demanding industrial settings.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: UGRO-20231
• Application: Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, indoor or outdoor locations
• Amperage Rating: 20 amperes
• Voltage Rating: 125 V
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Material: Copper-free aluminum (less than 4/10 of 1%)
• Color: Metallic
• Dimensions (L x W x H): 6.375 in x 6 in x 4.375 in
• NEMA Rating: NEMA 3, 7BCD, 9FG
• Environmental Conditions: Wet and hazardous locations
• Weight: 1.79 lb
• Country of Origin: United States
• Made in USA: Yes

Features

• Explosion Proof design for hazardous environments
• Receptacle with Adapter, 5-20R configuration
• Suitable for extra heavy-duty applications
• Certified for electrical current interrupting at full rated current
• Withstands dielectric voltage of 2,000V minimum
• Operating temperature range: -40¬∞C to 75¬∞C continuous without impact
• Terminals accommodate #14 to #10 AWG copper stranded or solid conductors
• Terminals identified per UL 498 and CSA standards
• Screw mounting hardware for secure installation
