Features

• Mounts directly to 1 and 2 gang or 4-inch square boxes

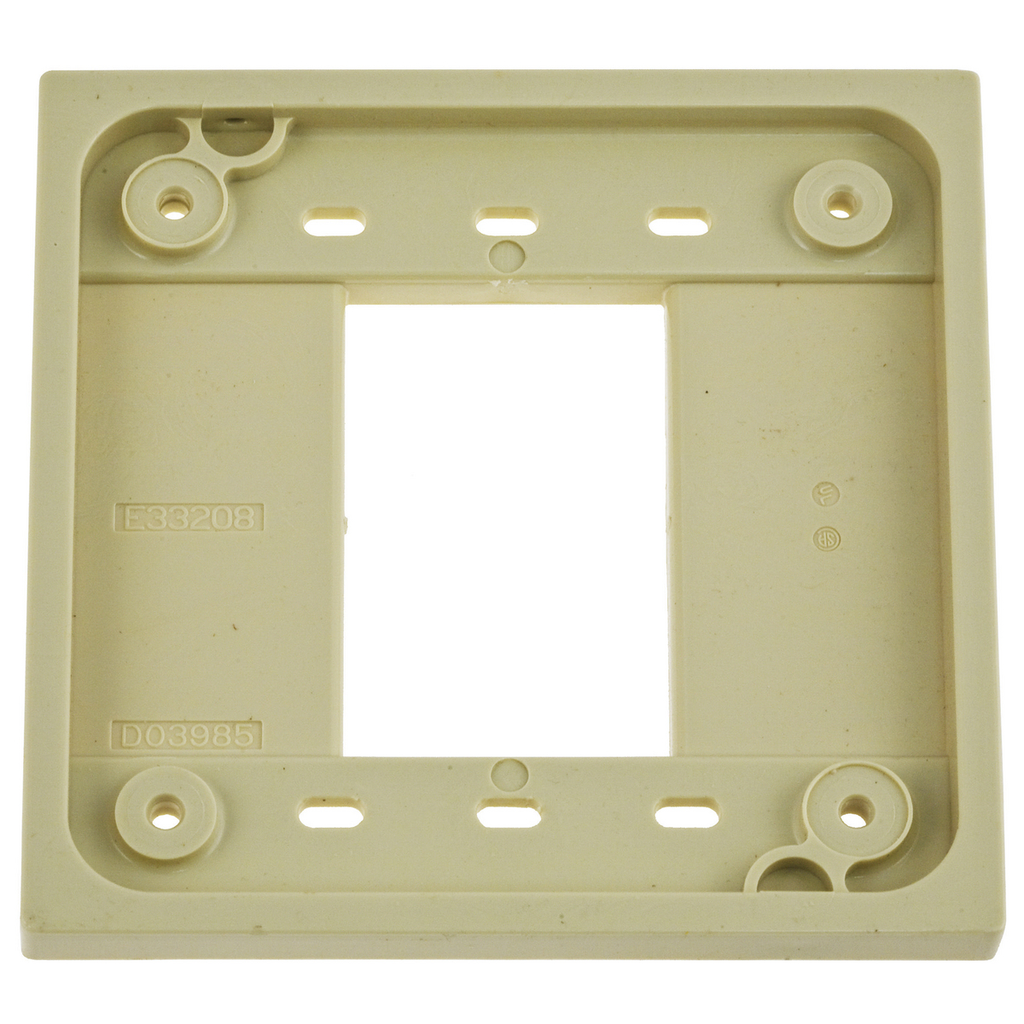

• Adapter Plate

Specifications

• Country of Origin: United States
• Dimensions: 4.78 in x 4.78 in x 0.58 in
• Width: 4.800 in
• Each - Width: 4.800 in
• Height: 0.58 in
• Industry Standard(s): Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
• Length: 4.78 in
• Application: 4-Plex Hospital Grade
• Color: Ivory
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Size: 4.78 in x 4.78 in x 0.58 in
• Special Features: Adapter Plate
• Standard: Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
• Type: Adapter Plate
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 0.15 lb.
• Class Code: A04
• Description - Invoice: ADAPTER PLATE, 4-PLEX, IV
• Freight Class Code: 06168002
• Harmonization Code: 3925900000
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 4API
• Sub Class Code: A04A060
• Material: Polycarbonate
• Series: 4-Outlet Receptacle
• Base Unit of Measure: EA
• BOX SIZE: 5.700x6.100x6.300 (in)
• Carton - Gross Weight per Pack: 5.3 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585013763
• Carton - Total Units: 5 EA
• Case - Total Units: 30 EA
• Case Weight: 9.874 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 42.600 in
• Pallet Length: 48.000 in
• Pallet Weight: 348.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
